5 Speed Automatic 09A

Removing control module
- Switch ignition off, open hood.
- Remove wiper arms and cowl panel:

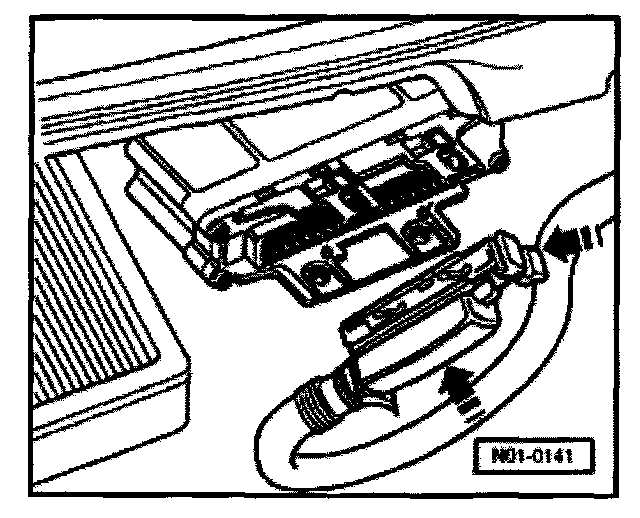

- Release multi-pin connector, then disconnect connector from control module.

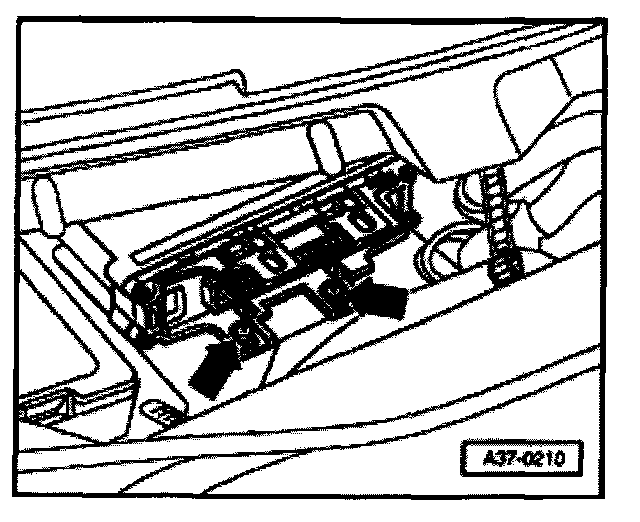

- Remove screws -arrows-.
- Remove control module.

Installing control module
Installation is performed in the reverse order of removal.

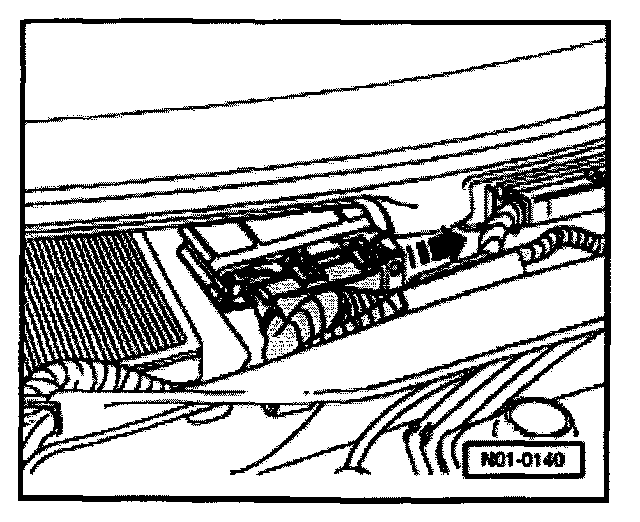

- Locate multi-pin connector on control module -J217- pins (arrows) then lock multi-pin connector.
- Perform On Board Diagnostic (OBD).
- Initiate basic setting.
