Interpreting Display Groups
Display Groups, Interpreting

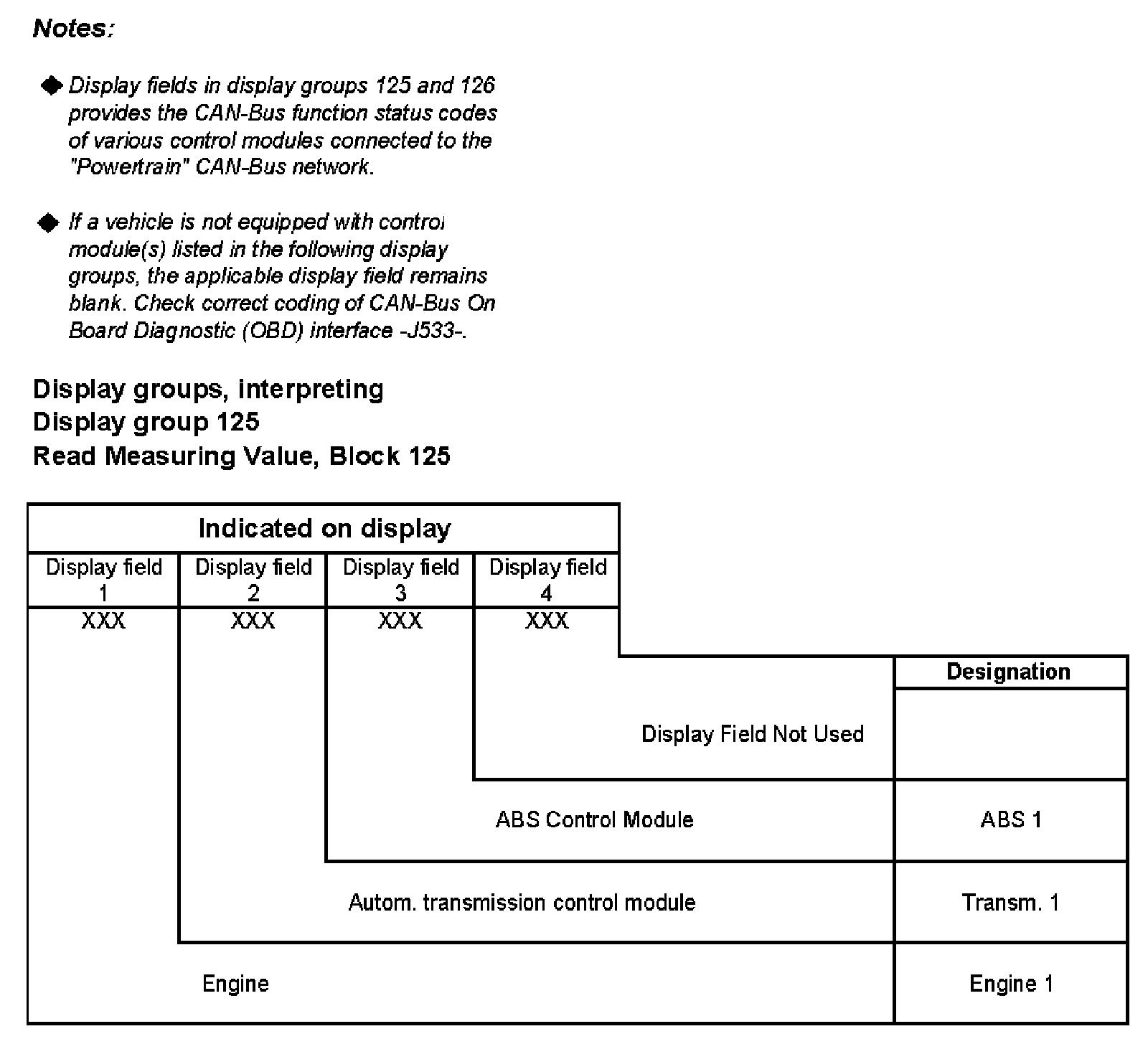

Display Group 125:
Display Group 126:

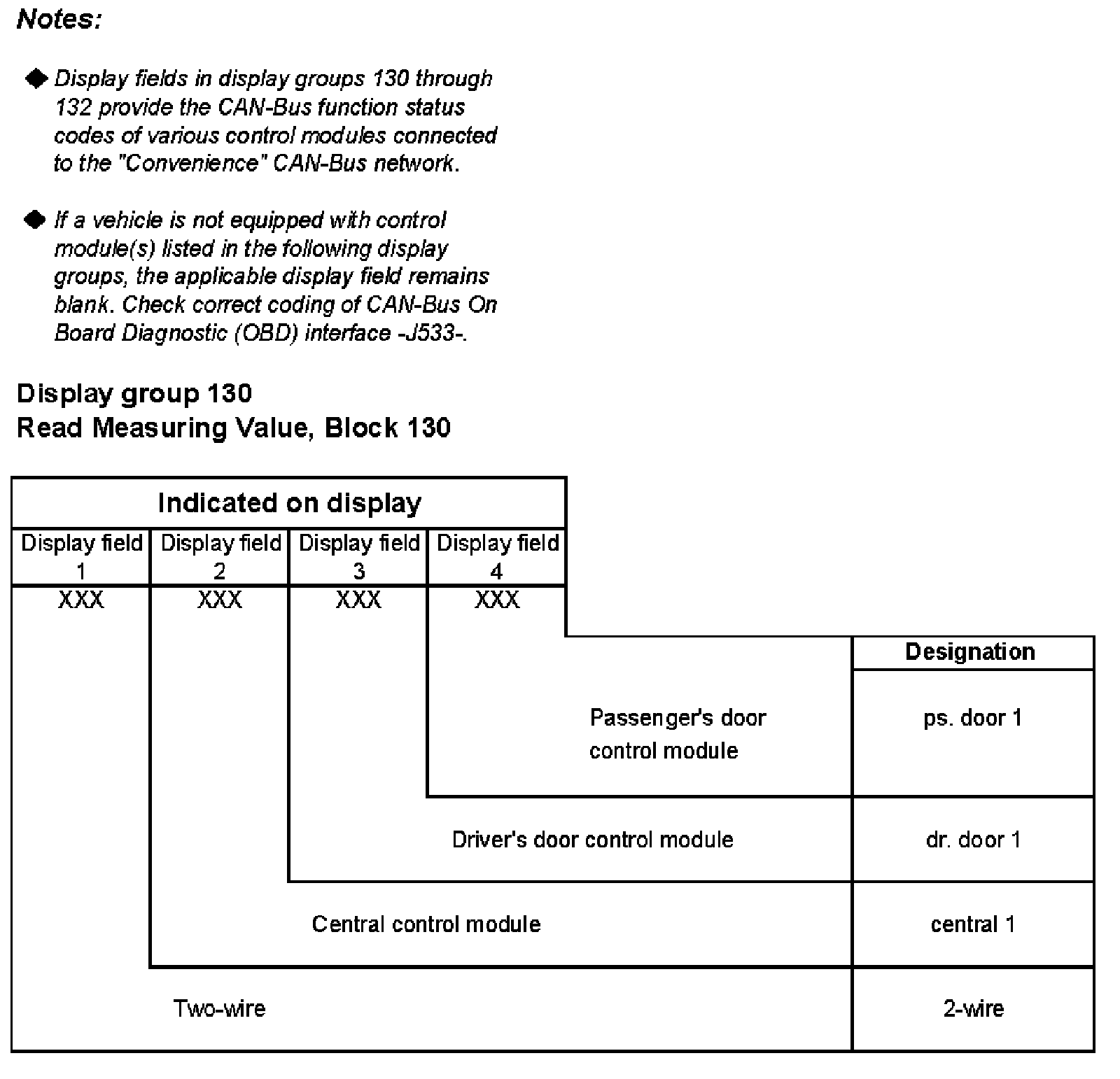

Display Group 130:
Display Group 131:
Display Group 132:
