J338 - Throttle Valve Control Module

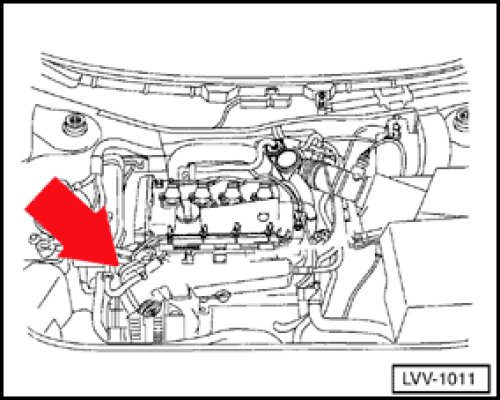

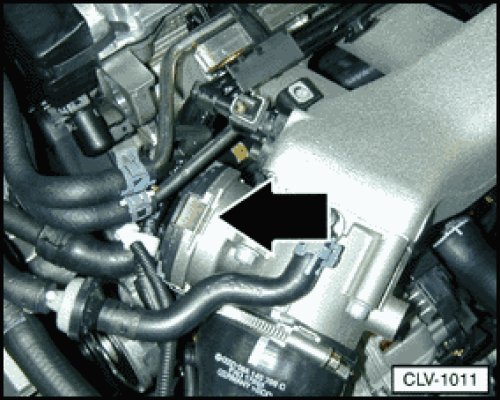

J338 Throttle valve control module (1.8 liter)







- on intake manifold, right side
- contains -G186- , -G187-, -G188-
