Removal & Installation

Information on removing and installing side window components (except window regulator) is not available from the manufacturer. For an exploded view of side window components see Fig 1 .

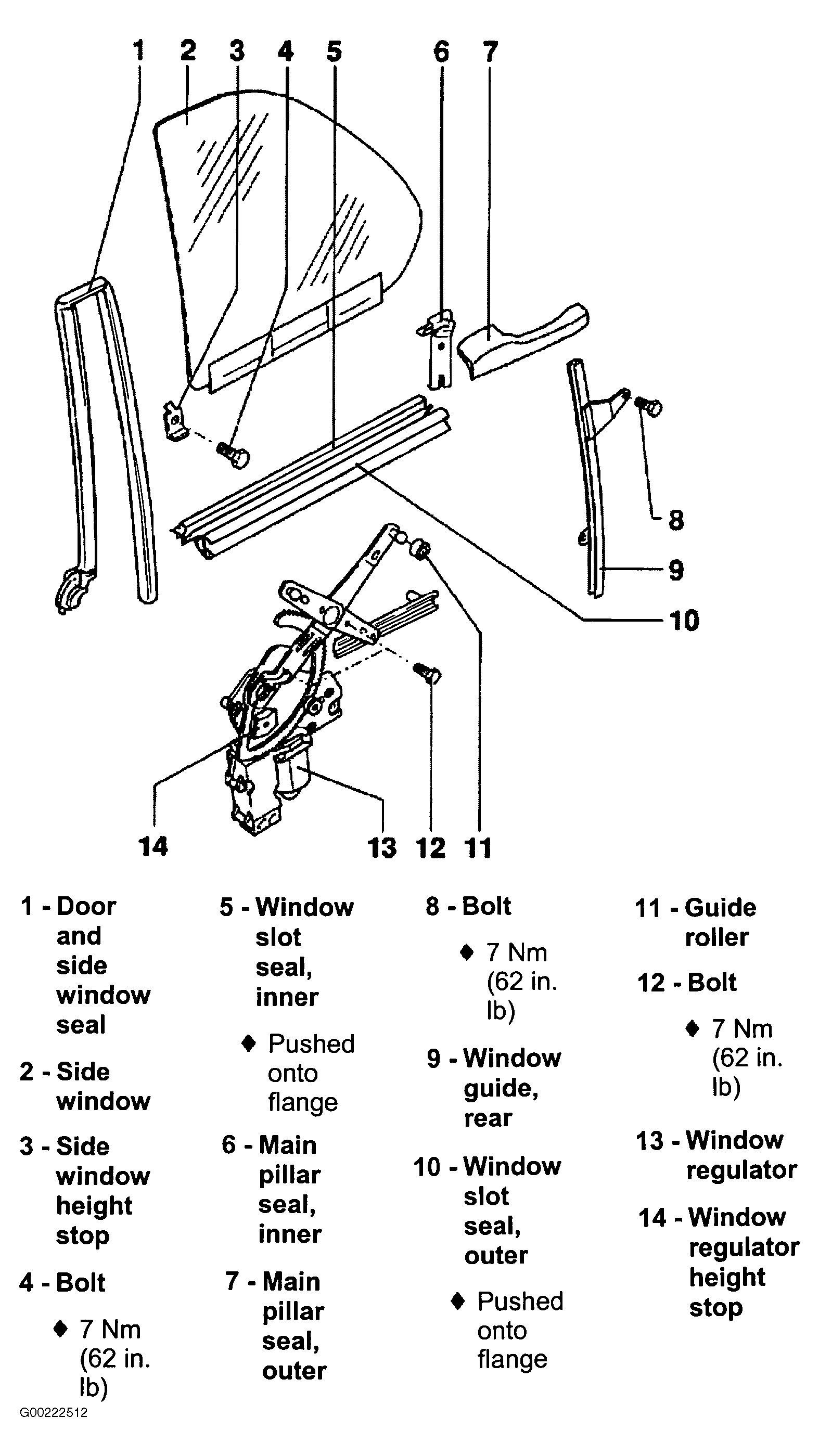

Fig 1: Exploded View Of Power Window Components (Side Window)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
