Throttle Position Sensor: Service and Repair

Electronic Engine Power Management (E-Gas), Repairing

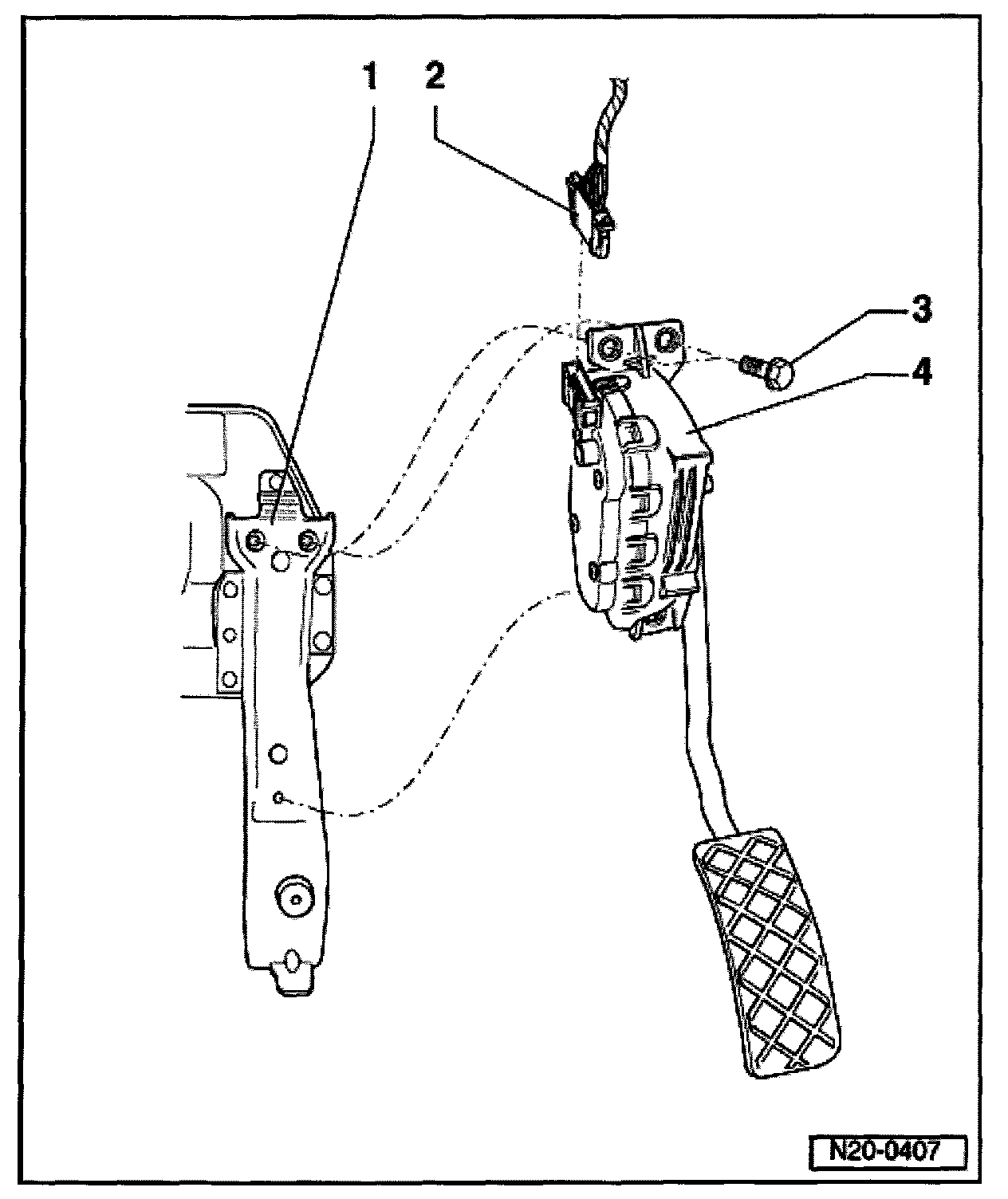

1 - Mounting bracket
2 - Connector
- Black, 6 pins
3 - 10 Nm
4 - Throttle Position (TP) sensor -G79- and -G185-
- Not adjustable
- Passes driver's intent to engine control module
- Checking
