01P Automatic Transmission

CODE LETTERS, APPLICATION, RATIOS, EQUIPMENT

- 01P Transmission -

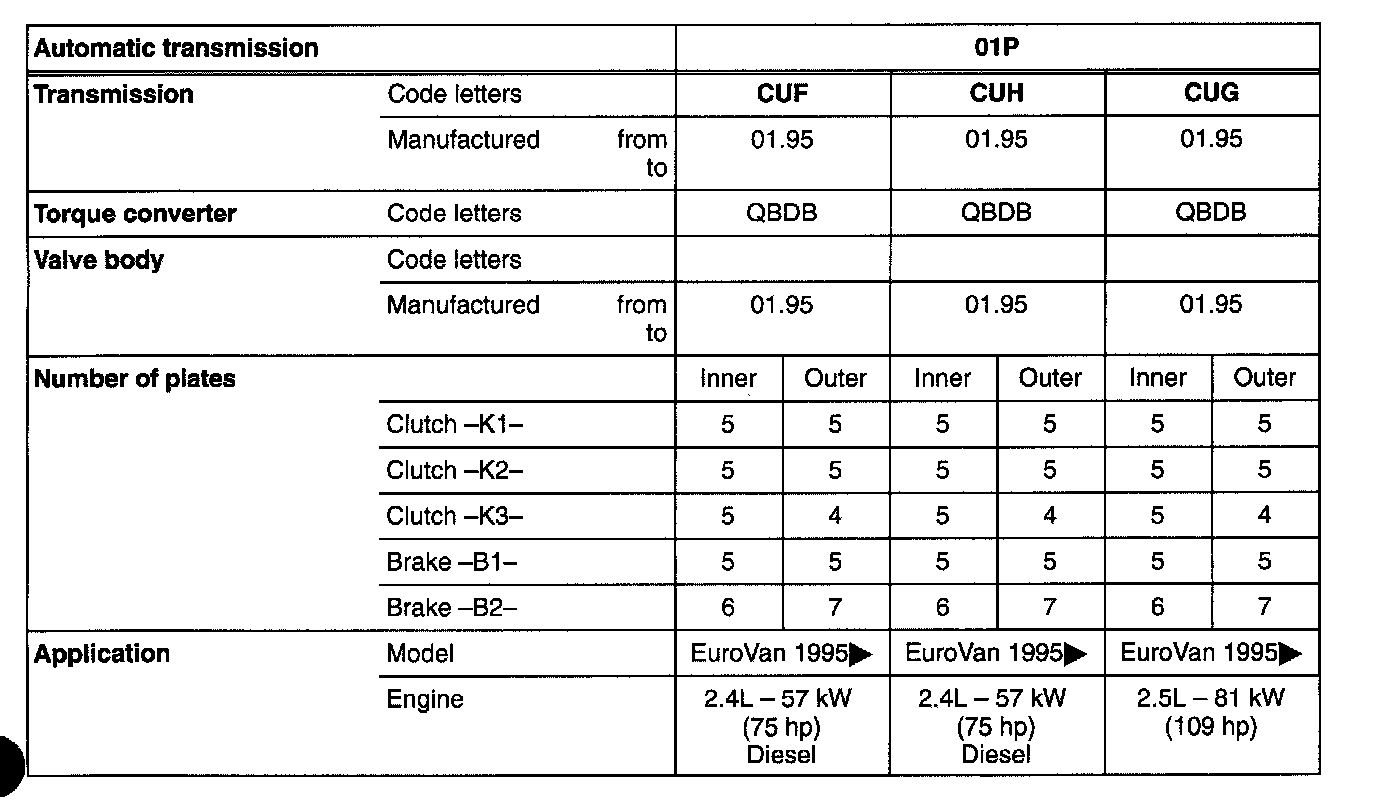

Torque Converter Code Letter CUF, CUH, CUG:

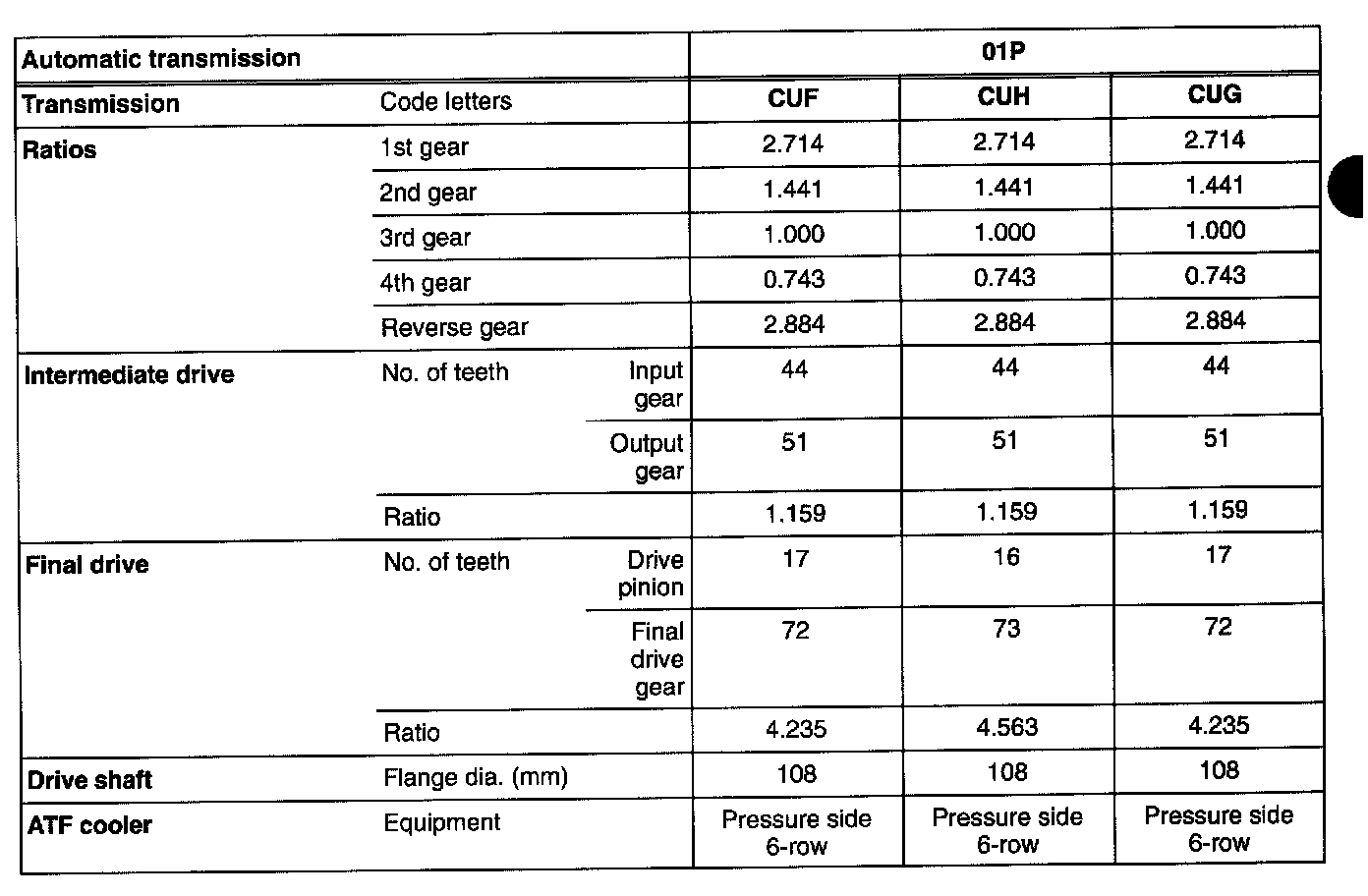

Ratios Code Letter CFU, CUH, CUG:

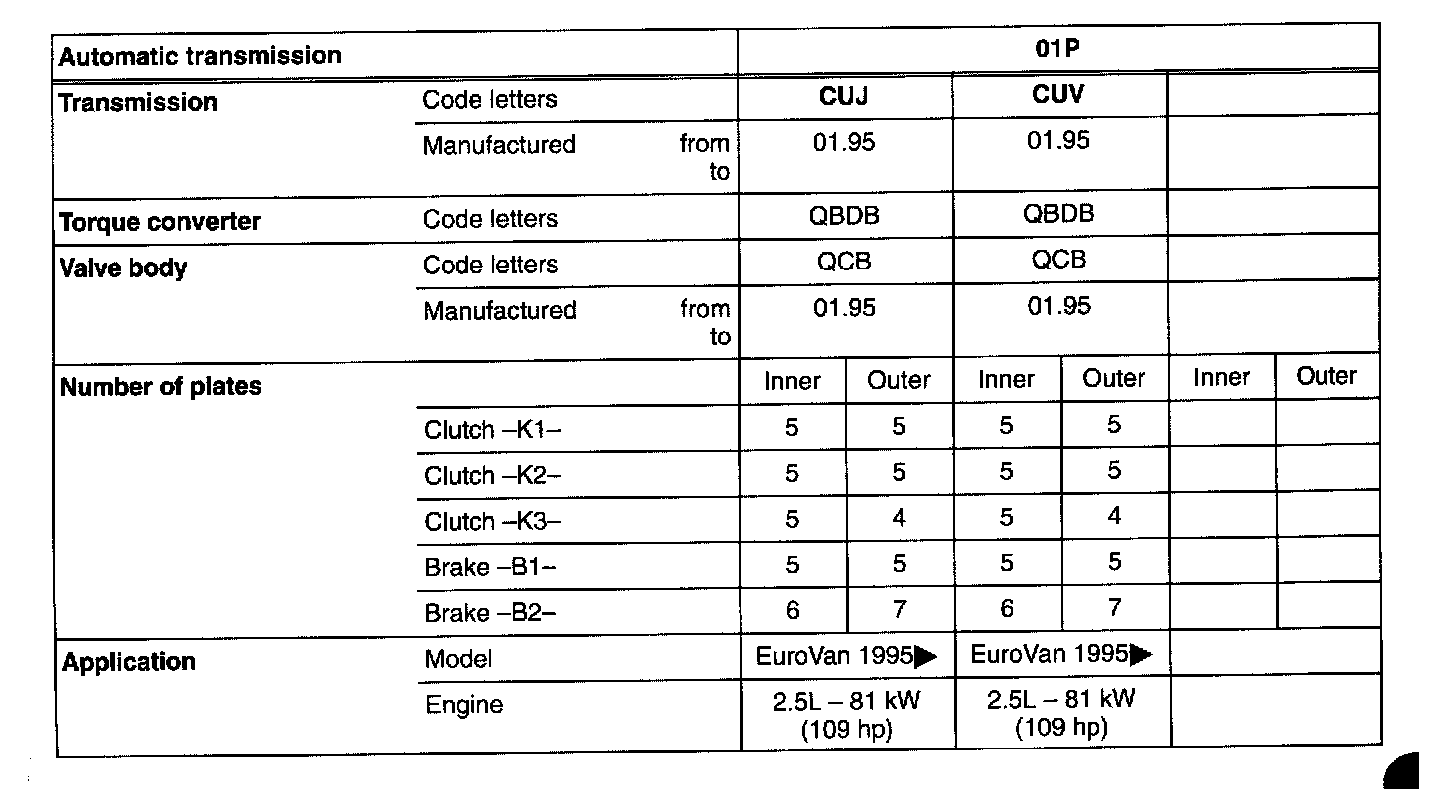

Torque Converter Code Letter CUJ, CUV:






Ratios Code Letter CUJ, CUV:
