Display Groups 0 to 6 (Basic Functions)
Measuring value blocks, evaluating display groups 0-6 (basic functions)
Evaluation display group 1, display field 1 - engine speed (idle speed)

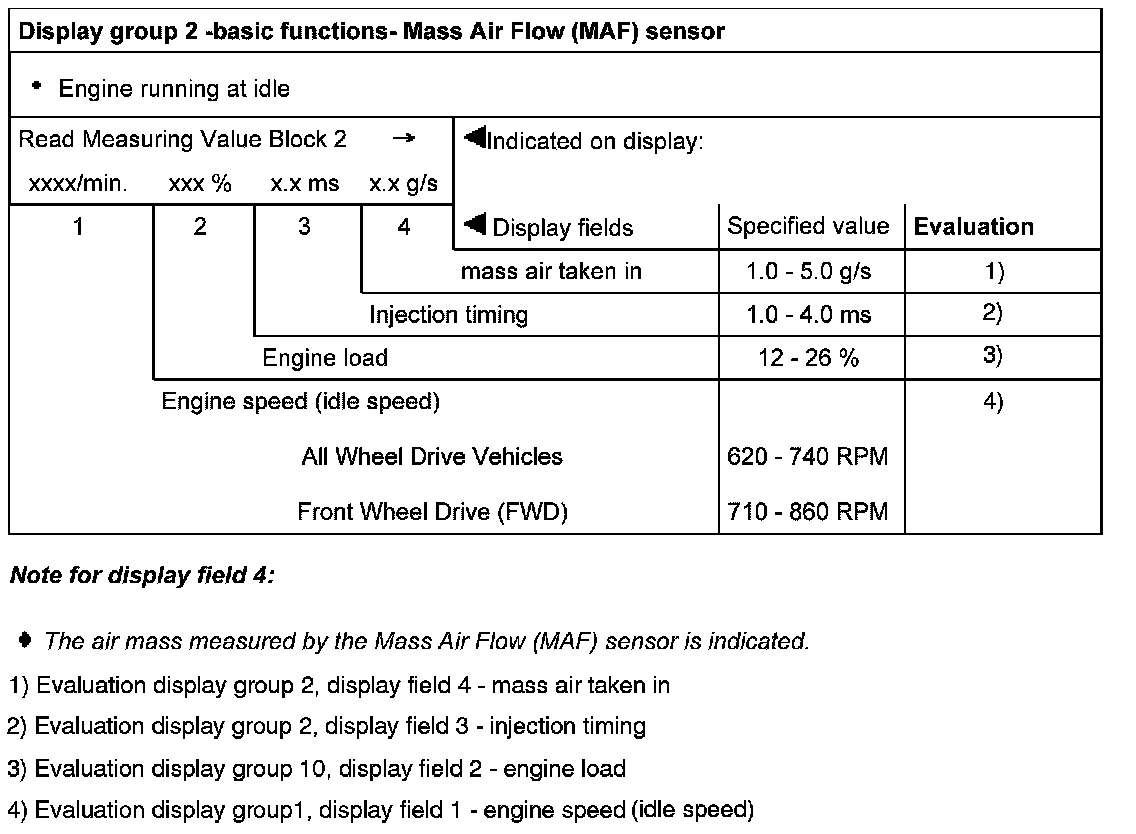

Display group 2 -basic functions - Mass Air Flow (MAF) sensor
Evaluation display group 2, display field 3 - injection timing
Evaluation display group 2, display field 4 - mass air taken in

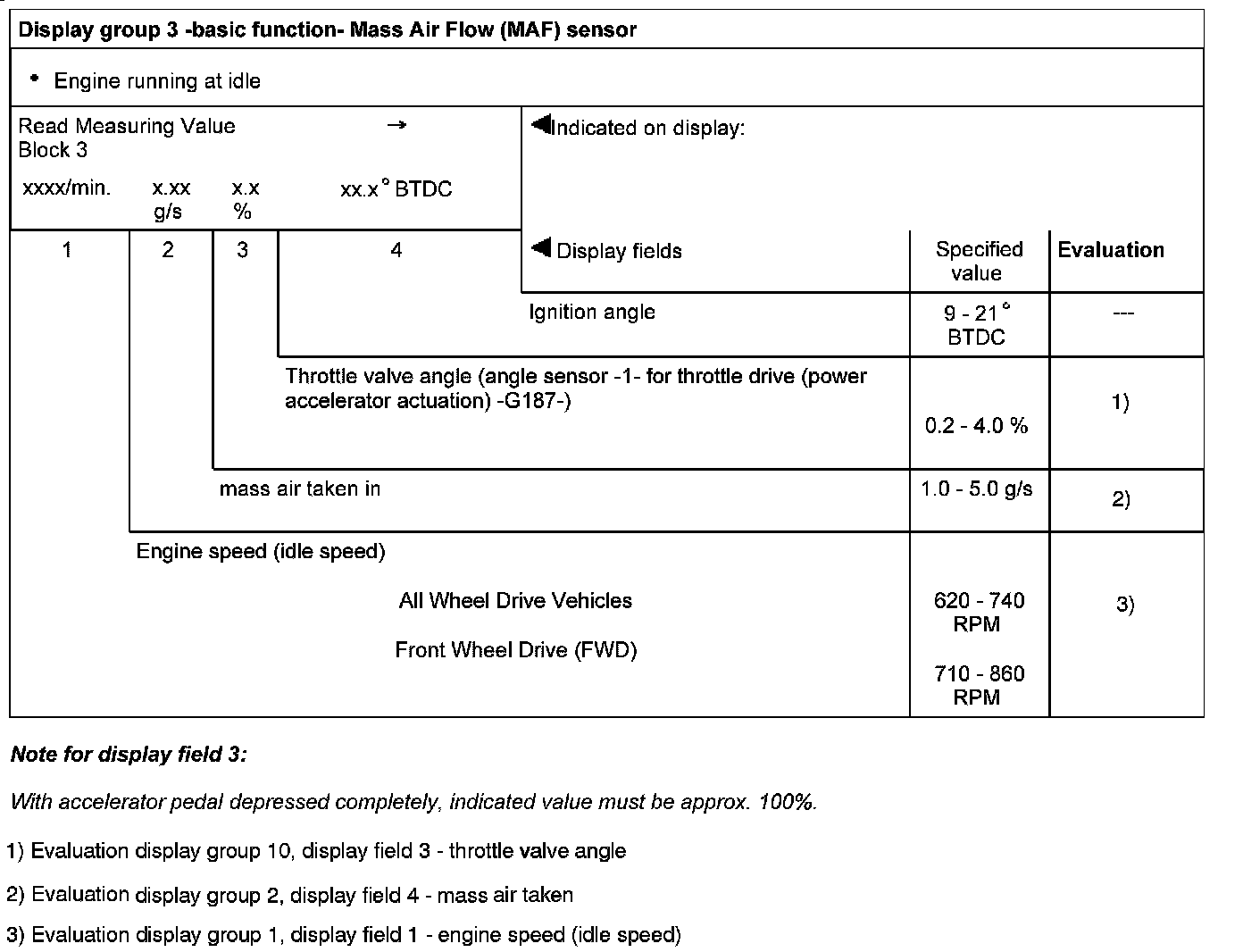

Display group 3 -basic function- Mass Air Flow (MAF) sensor

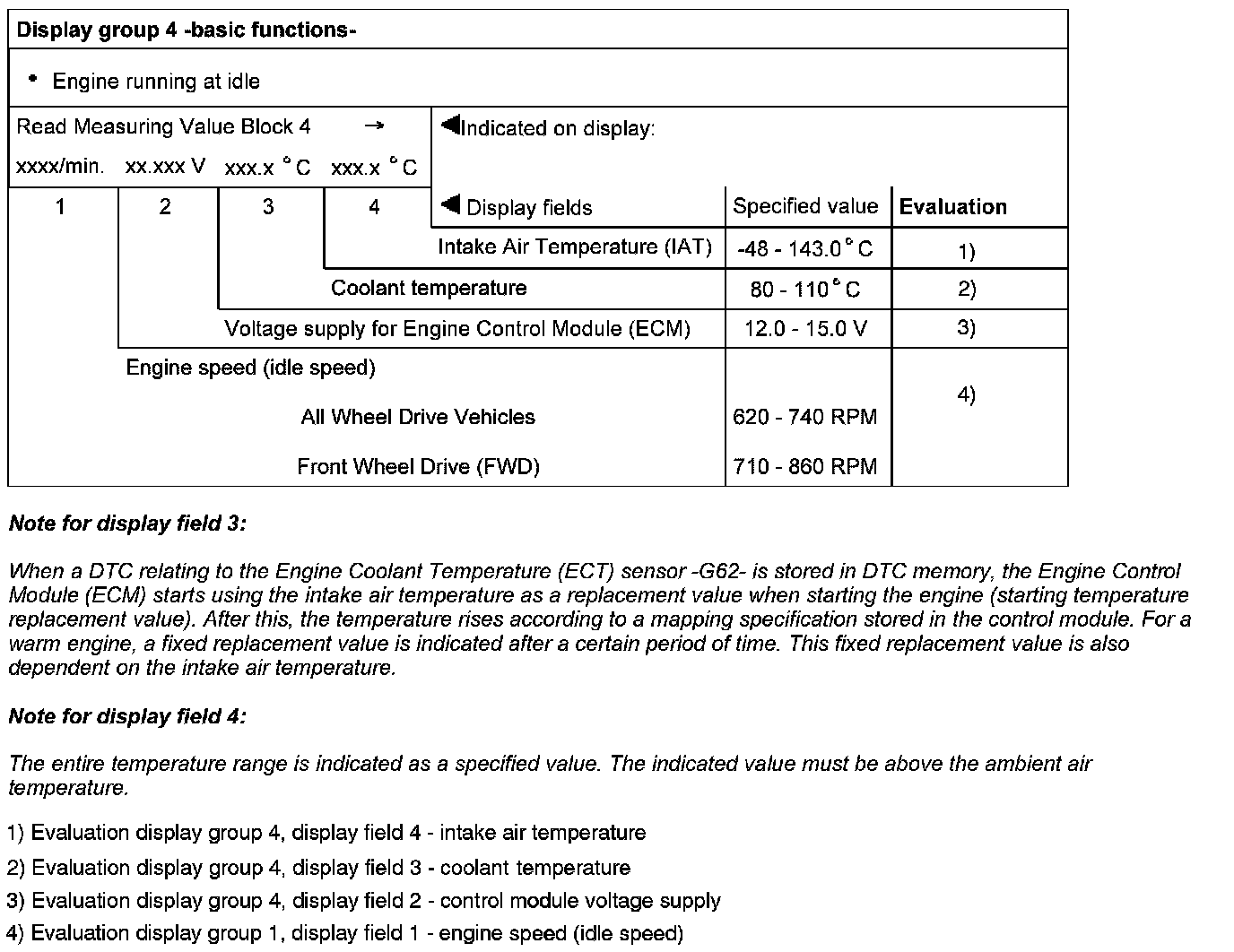

Display group 4 -basic functions-
Evaluation display group 4, display field 2 - control module voltage supply
Evaluation display group 4, display field 3 - coolant temperature
Evaluation display group 4, display field 4 - intake air temperature
Display group 5 -basic function-

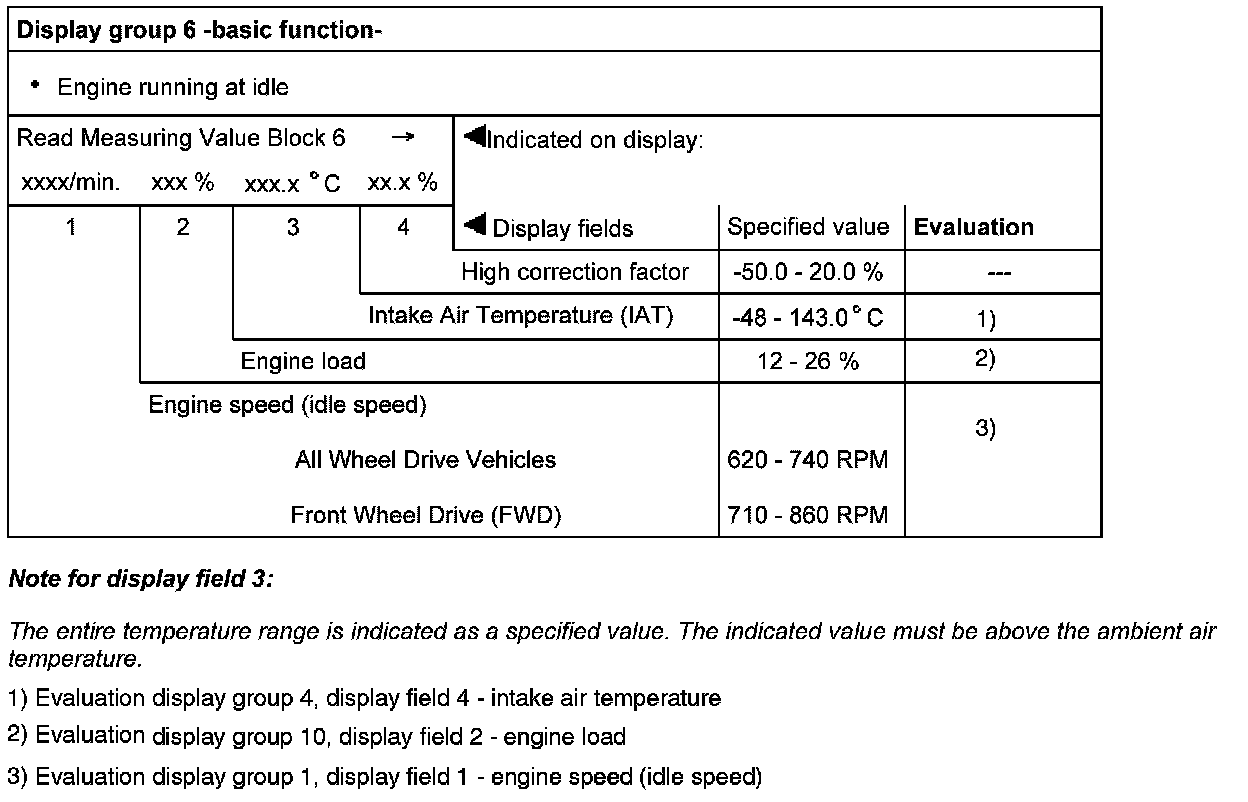

Display group 6 -basic function-
