Fuse Block: Service and Repair

Fuse Panel, Removing

- Remove drivers' side lower instrument panel trim.
- Carefully remove fuse panel cover at left side instrument panel.

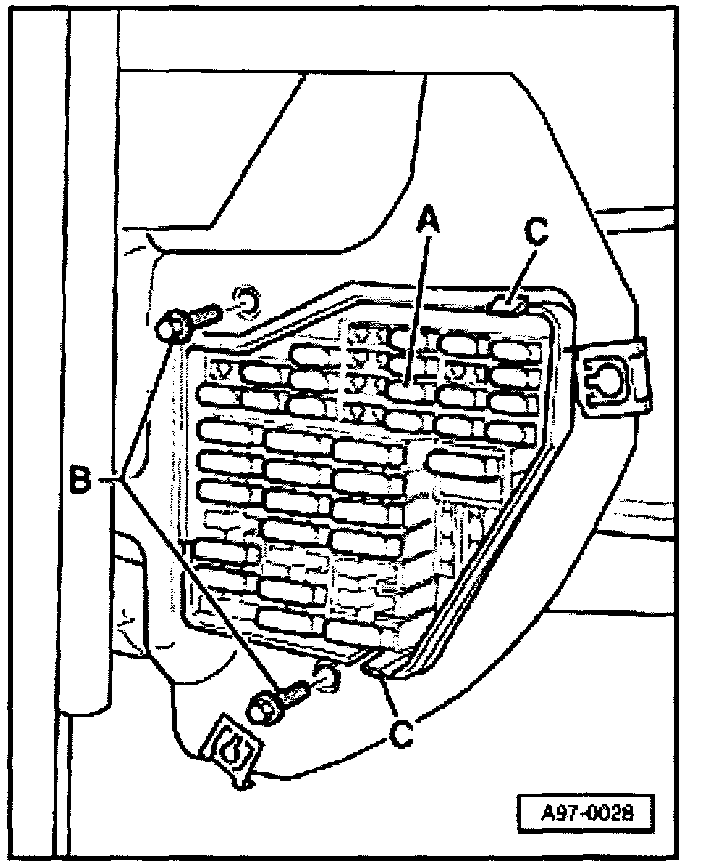

- Remove screws -B-, 2 Nm (18 in lb), depress locking tabs -C- and remove fuse panel from the rear.
