Reading Measured Value Block

Additional information
- Electrical Wiring Diagrams and Component Locations, Passat 1997 On.
- Connect VAG 1551 scan tool and enter "Transmission electronics" address word 02 and advance through program sequence until "Select function XX" is indicated on display.

Indicated on display

Rapid data transfer HELP
Select function XX

- Press buttons -0- and -8- to select "Read measured value block" function 08.

Indicated on display

Rapid data transfer Q
08 - Read measured value block

- Confirm entry with -Q- button.

Indicated on display

Read measured value block HELP
Input display group number XXX

- Enter display group number. See List of selectable display group numbers as shown below.
- Confirm entry with -Q- button.

4 display fields always appear in the measured value block (in physical values if necessary). For specifications of values in display fields 1 to 4, see Measured Value Block table.

Read measured value block 1 ->
->1 ->2 ->3 ->4

List of Selectable Display Group Numbers

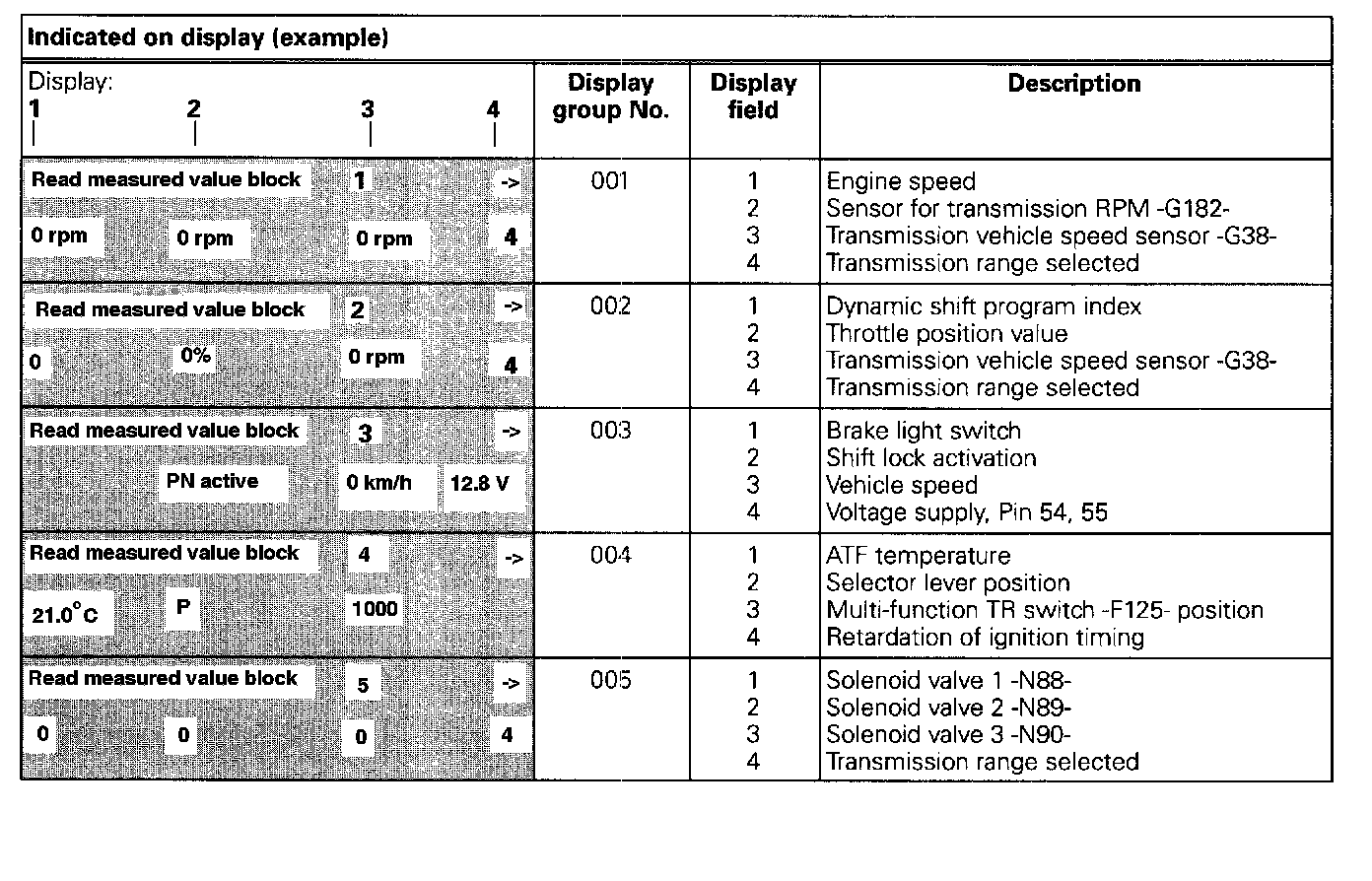

Display groups 001 to 005

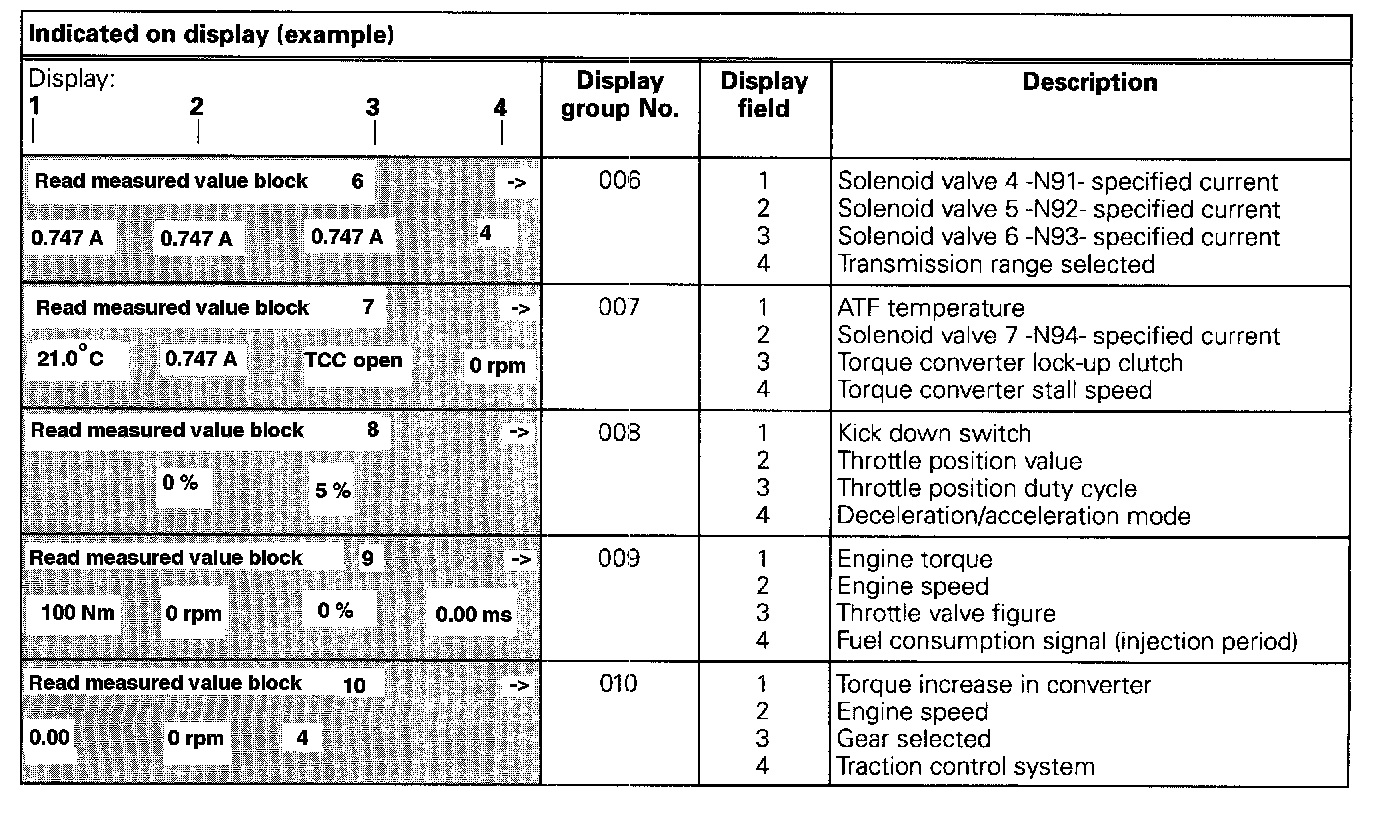

Display groups 006 to 010






Display group 011


NOTE: If the printer is switched ON, the current display is printed out on the paper strip.

If the specified values are reached in all the display fields:
- Press button ->.

Indicated on display

Rapid data transfer HELP
Select function XX
