Transmission Torque Specifications

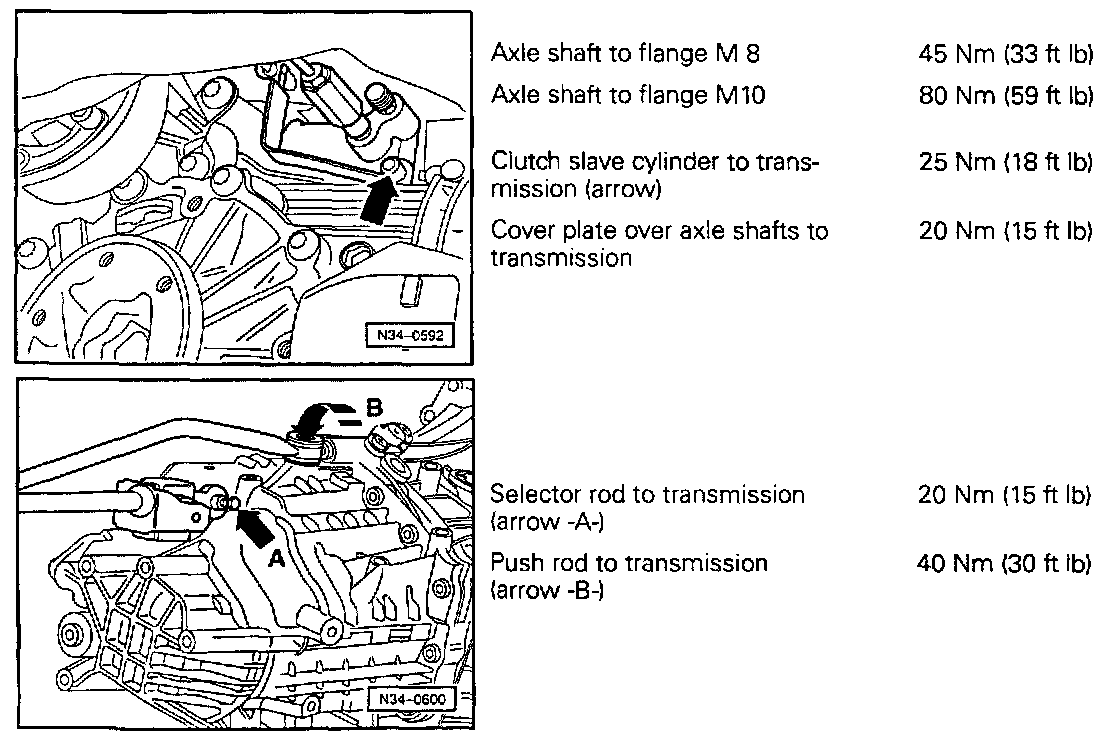

Manual Transmission 012 Torque SpecificationsTorque Specifications:
Torque Specification Vehicles With 4 Cyl.:
Torque Specifications, Vehicles With 6 Cyl Engines:
Torque Specifications:

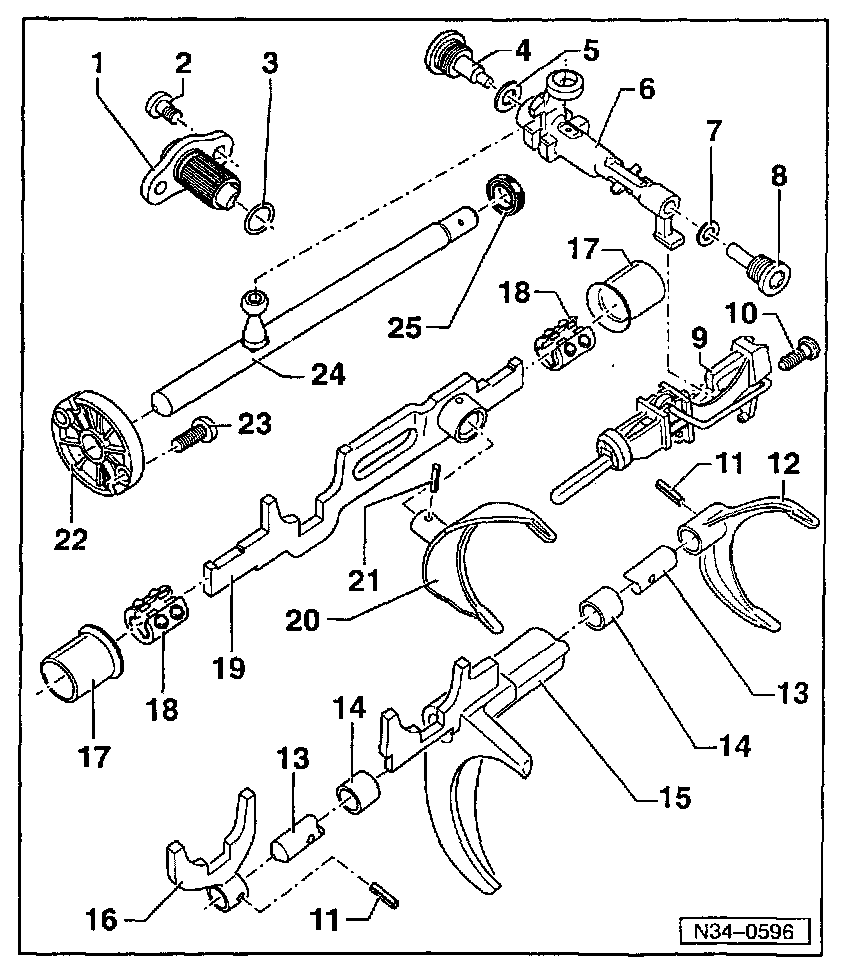

Selector Mechanism Breakdown:
Selector mechanism, disassembling and assembling
1 - 5th/Reverse gear detent
2 - Torx� screw
^ 10 Nm (7 ft lb)
3 - 0-ring
^ Always replace
4 - Right stop bolt
^ 40 Nm (30 ft lb)
5 - Oil seal
6 - Relay shaft
7 - Oil seal
8 - Left stop bolt
^ 40 Nm (30 ft lb)
9 - Shift detent
10 - Torx� bolt
^ 25 Nm (18 ft lb)
11 - Spring pin
12 - 5th and reverse gear selector fork
^ Installation position
13 - 1st gear/2nd gear, 5th and reverse gear shift rod
14 - Ball sleeve
15 - 1st and 2nd gear selector fork
16 - Shift yoke
^ Installation position
17 - Bushing
18 - Ball sleeve
^ Pry off the selector shaft with a screwdriver
^ Press onto the selector shaft
19 - 3rd and 4th gear selector shaft
20 - 3rd and 4th gear selector fork
21 - Spring pin
22 - Shift rod cover
23 - Torx� screw
^ 20 Nm (15 ft lb)
24 - Shift rod
25 - Oil seal
^ Pry out with screwdriver
^ Installation position
Note:
Installation position of the complete selector mechanism in transmission
