Electronic Throttle Control Module: Service and Repair

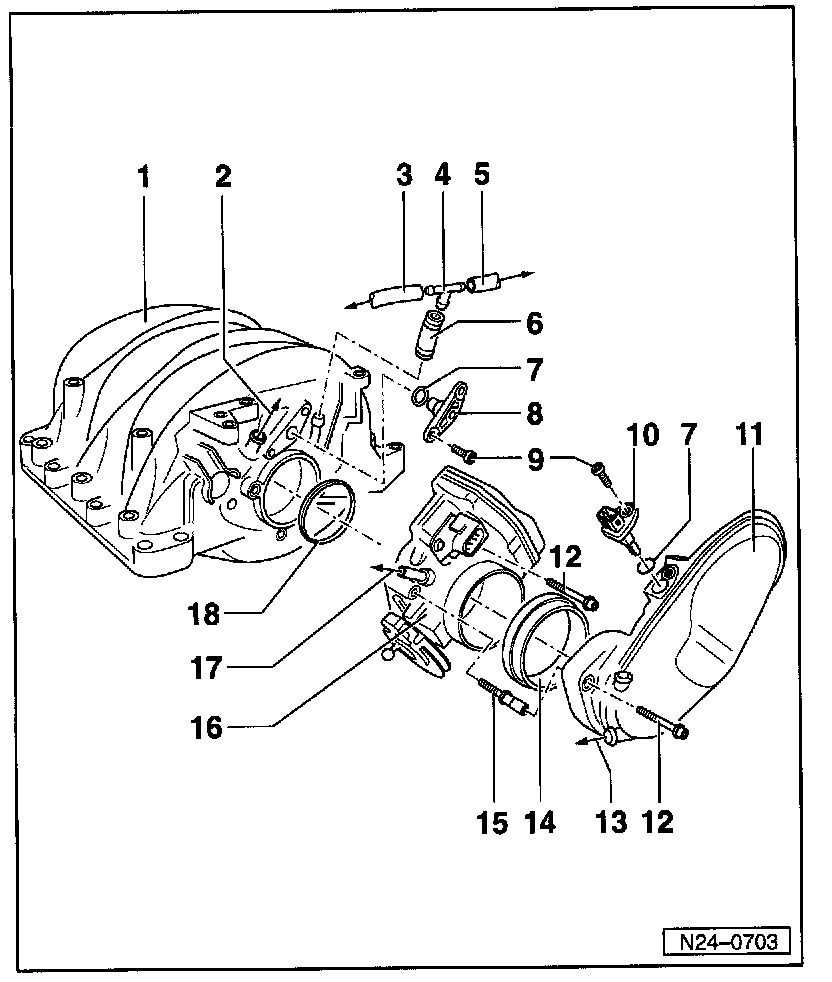

Throttle Valve Control Module, Removing and Installing




1 - Intake manifold
2 - To vacuum booster
3 - To fuel pressure regulator
- Location, item 5, Service and Repair
4 - T-piece
5 - To one-way valve
- Location, item 4, Service and Repair
6 - Vacuum hose
7 - O-ring
- Replace if damaged
8 - Support bracket
- For change-over barrel
9 - 6 Nm (53 in lb)
10 - Intake Air Temperature (IAT) sensor -G42-*
- Checking, Testing and Inspection
- Resistance graph, Testing and Inspection
11 - Intake air elbow
12 - 10 Nm (7 ft lb)
13 - To positive crankcase ventilation valve
14 - Seal
- Replace if damaged
15 - 10 Nm (7 ft lb)
- Install with "D6" locking fluid
16 - Throttle valve control module -J338-*
- Checking, Testing and Inspection
- If replaced, adapt to ECM, Testing and Inspection
17 - To Evaporative Emission (EVAP) canister purge regulator valve -N80-
18 - Seal
- Replace if damaged
