Selectable Functions When Using VAG1551/1552 or VAS5051




ECM Functions Using VAG1551 Scan Tool Or VAG 1552 Scan Tool

- The Motronic ECM -J220- performs different OBD functions, carried out with the ignition switched on or with the engine running. Following are the conditions required to carry out each of the specific functions.

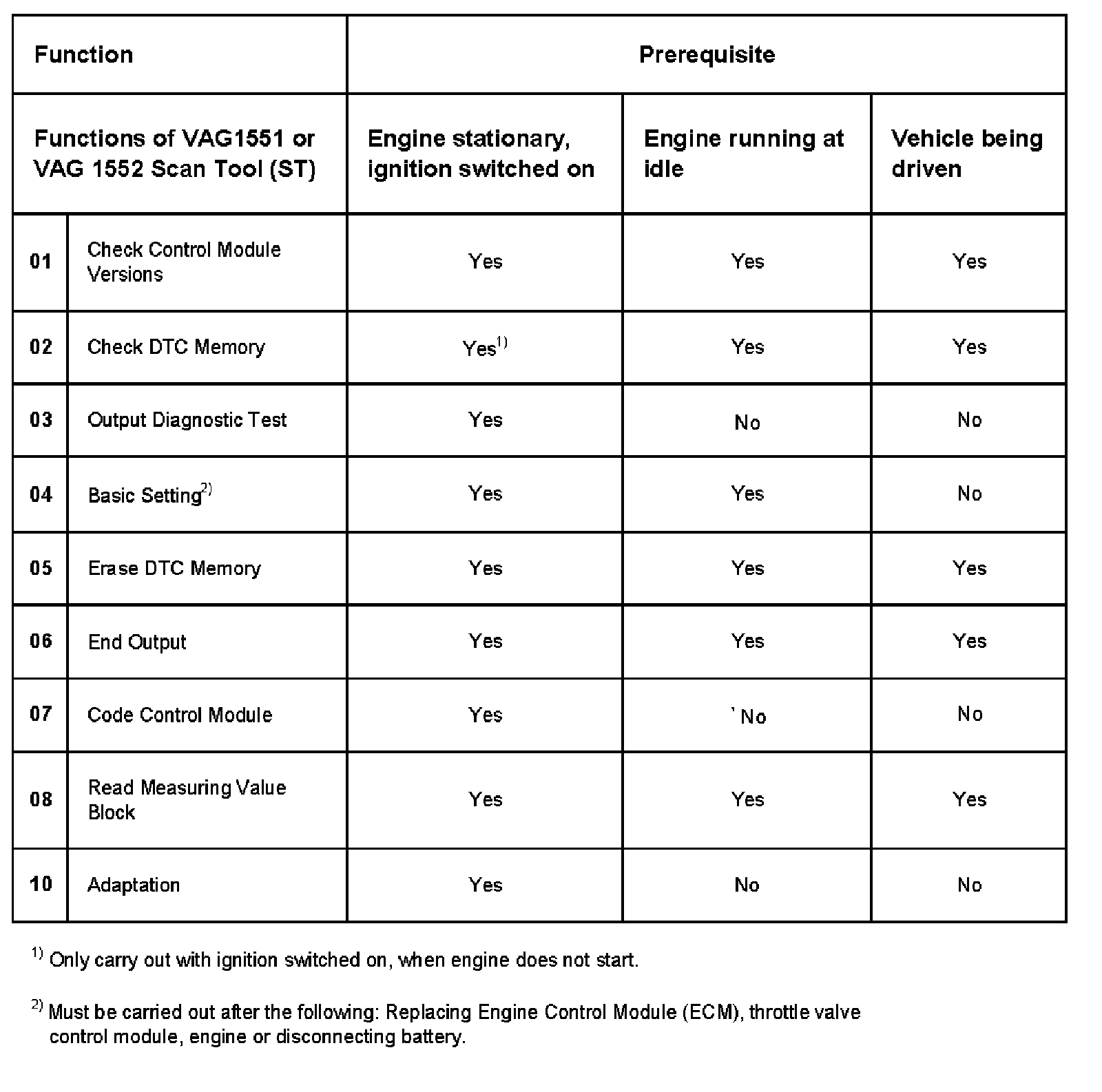

Function 01 - 10:
