Fresh Air Blower -V2- With Control Module -J126-

Fresh Air Blower -V2- With Control Module For Fresh Air Blower -J126-, Removing And Installing

Removing

- Remove passenger side shelf (glove box)

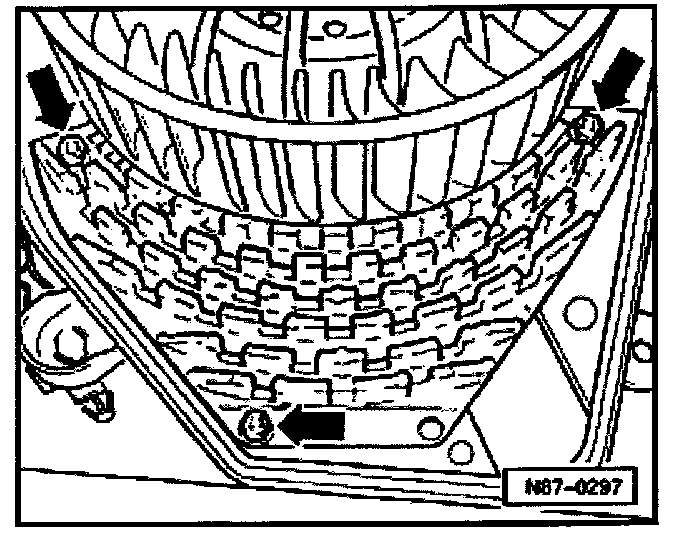

- Remove screws -arrows-.
- Remove blower with blower control unit -2- from housing -1-.

Control module for fresh air blower -J126-, removing (from blower)







- Remove screws -arrows-.







- Lift control module -3- and pull out forwards -arrow B-.
- Disconnect electrical connector -1-.

Observe following when inserting module -J126-:
- Pull both components carefully apart in direction of -arrow A- to provide a slight clearance between fresh air blower wheel - 2- and housing -4-.
- Insert control module -3- into housing -4- and secure.

Installing







- Insert fresh air blower with blower control unit -2- into housing -1- and secure with screws -arrows-.
