Battery For Key With Radio-frequency Remote Control (Foldable), Assembly Overview 08.00 -->

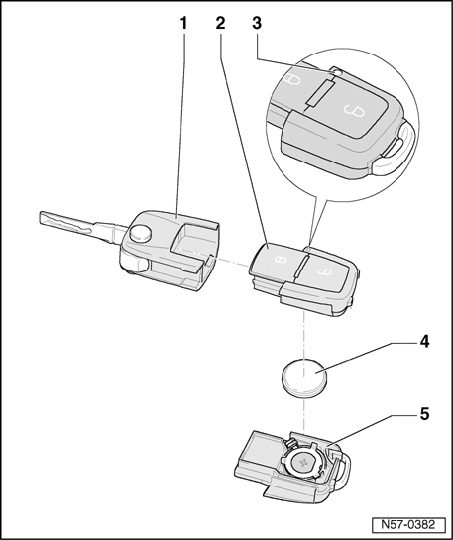

1 - Key with variable code transponder
2 - Radio-frequency unit - upper part
3 - LED
- This LED must blink when remote control is operated.
- If LED does not blink when remote control is operated, battery is completely discharged and must be replaced.

4 - Battery
5 - Radio-frequency unit - lower part

Removing
- Insert screwdriver in slot between radio-frequency unit - 1 - and key - 2 -.







- Rotate screwdriver in direction of - arrow - and remove transmitter unit from key.







- Press apart radio-frequency unit - 1 - using key bit of key - 2 -.







- Use a screwdriver to unclip battery - 1 - out of holders - 2 - in direction of - arrow -.

Installing
- Note polarity and installation position of battery when installing.

- Place battery - 1 - in radio-frequency unit - 2 - with positive terminal downward (positive terminal is marked in housing).
- Press on battery with light pressure to engage it in radio-frequency unit.
- Attach cover to radio-frequency unit (do not damage seal).







- Engage radio-frequency unit on key.
