Transmission To Engine Tightening Specifications

Fig 1: Identifying Transmission To Engine Fastener Identification

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item

Bolt

Qty.

M 12 x 55

2 ⁽¹⁾

M 12 x 150

M 10 x 50

4⁽²⁾

M 7 x 12

⁽¹⁾	In addition, starter to transmission

⁽²⁾	Small cover plate for flywheel

Items A + B - Dowel sleeves

Transmission console -A- to transmission

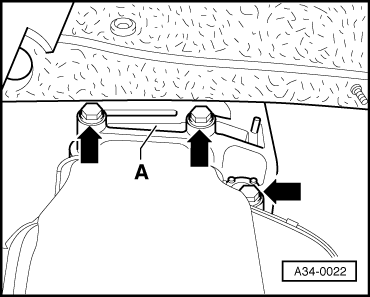

Fig 2: Identifying Transmission Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace bolts

Bolts -arrows-

50 Nm plus an additional 1/4 turn 90°

Transmission to body

Fig 3: Identifying Transmission Support & Hex Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace bolts -B-.

Bolts -A-	25 Nm
Bolts -B-	60 Nm + 90 °

Rear transmission mounting

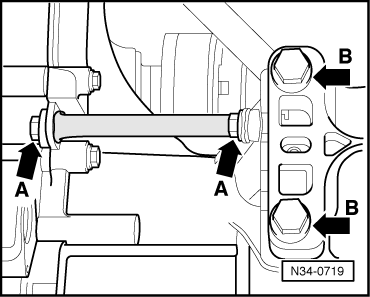

Fig 4: Identifying Pendulum Support & Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace bolts

Bolts -A-	20 Nm plus an additional 1/4 turn 90°
Bolts -B-	40 Nm plus an additional 1/4 turn 90°

NOTE:

Drive shaft to flange shaft M8		40 Nm
Drive shaft to flange shaft M10		80 Nm
Selector cable spt. brkt to transmission		25 Nm
Selector cable bolt to transmission selector lever		25 Nm
Balance weight to transmission selector lever		25 Nm
Transmission selector lever to transmission		25 Nm
