Steering Column CROSSMEMBER Assembly Overview

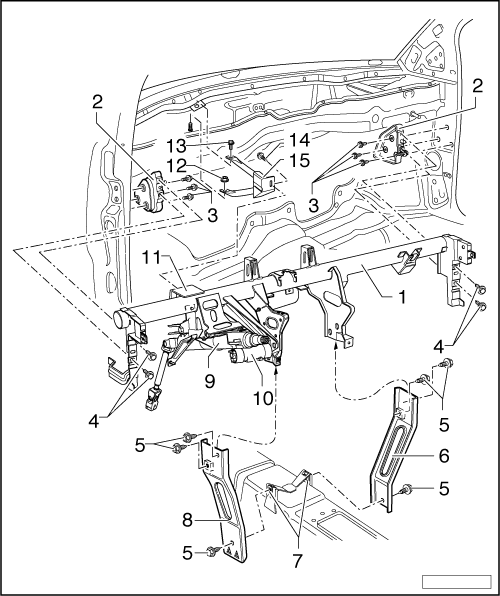

Fig 1: Identifying Cross Member For Steering Column,` Assembly Overview (New Beetle Sedan)
GWWM48-0171Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Crossmember, for steering column
  2. Adjustment bracket
  3. Hex bolt
  4. Hex bolt
  5. Hex bolt
  6. Right brace
  7. Speed nut
  8. Left brace
  9. Steering column
  10. Steering lock housing
  11. Bulkhead connection
  12. Hex nut
  13. Hex bolt
  14. Hex bolt
  15. Support
