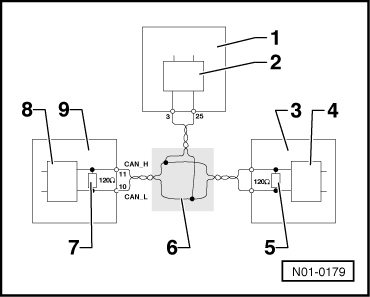

Can-Bus Control Diagram
1 - Automatic Transmission Control Module (TCM)
2 - Bus driver
3 - ECM
4 - Bus-driver
5 - Terminating impedance
6 - CAN-bus
7 - Terminating impedance
8 - Bus driver
9 - ABS Control Module -J104- (w/EDL)
| Terminal | Connected to... | |
|---|---|---|
| 1 | → | Left Front ABS Wheel Speed Sensor -G47- |
| 2 | → | Left Front ABS Wheel Speed Sensor -G47- |
| 3 | → | Coding bridge to terminal 14 |
| 4 | → | Voltage supply terminal X |
| 5 | → | Left Rear ABS Wheel Speed Sensor -G46- |
| 6 | → | Left Rear ABS Wheel Speed Sensor -G46- |
| 7 | → | T16/7 harness connector, K wire |
| 8 | → | Ground (GND) point at left side of engine compartment and Ground (GND) connection in engine compartment wiring harness |
| 9 | → | B+ via Fuse 7 - terminal 30 (on battery fuse panel) -S179- |
| 10 | → | CAN-bus wire1) → wiring diagrams |
| 11 | → | CAN-bus wire1) → wiring diagrams |
| 12 | → | not used |
| 14 | → | Coding bridge to terminal 3 |
| 15 | → | not used |
| Terminal | Connected to... | |
|---|---|---|
| 16 | → | ABS warning lamp activation |
| 18 | → | Brake Light Switch -F- |
| 19 | → | Right Front ABS Wheel Speed Sensor -G45- |
| 20 | → | Right Front ABS Wheel Speed Sensor -G45- |
| 21 | → | not used |
| 22 | → | Right Rear ABS Wheel Speed Sensor -G44- |
| 23 | → | Right Rear ABS Wheel Speed Sensor -G44- |
| 24 | → | Ground (GND) point at left side of engine compartment and Ground (GND) connection in engine compartment wiring harness |
| 25 | → | B+ via Fuse 6 - terminal 30 (on battery fuse panel) -S178- |
