Mode 6

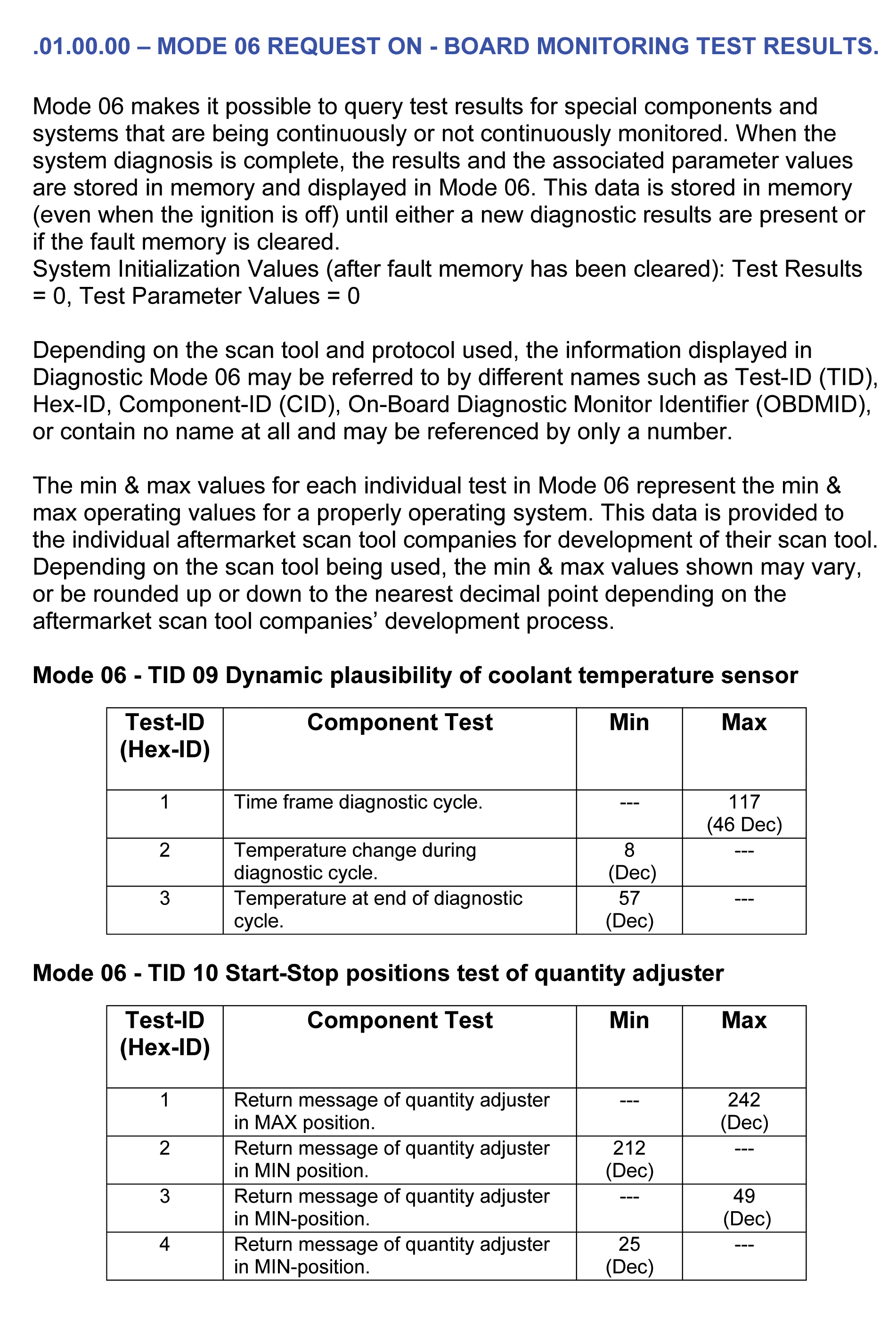

Fig 1: Mode 6 Data (1998-04 1.9L ALH) (1 Of 2)

G00105093

Courtesy of VOLKSWAGEN UNITED STATES, INC.

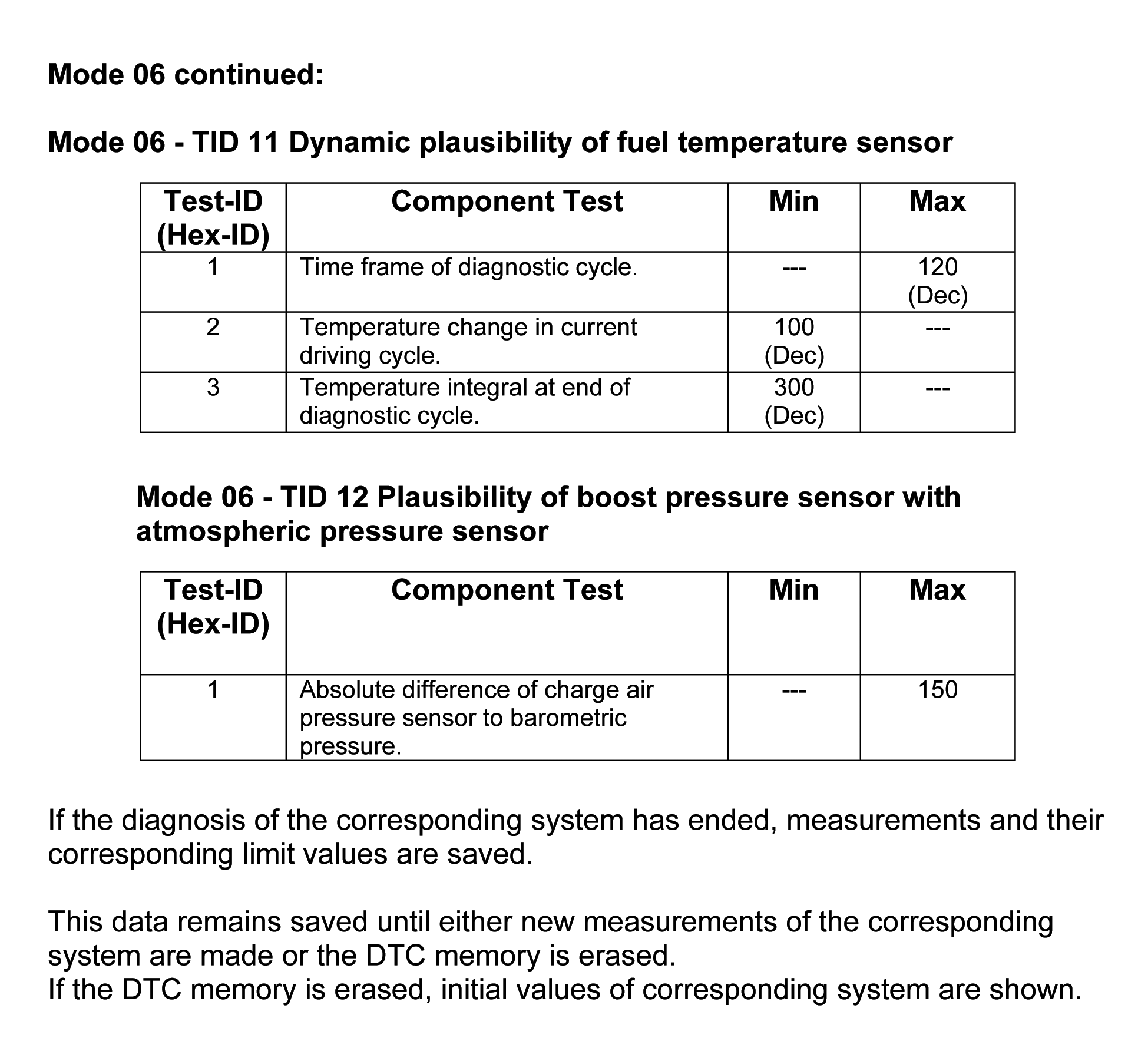

Fig 2: Mode 6 Data (1998-04 1.9L ALH) (2 Of 2)

G00105094

Courtesy of VOLKSWAGEN UNITED STATES, INC.

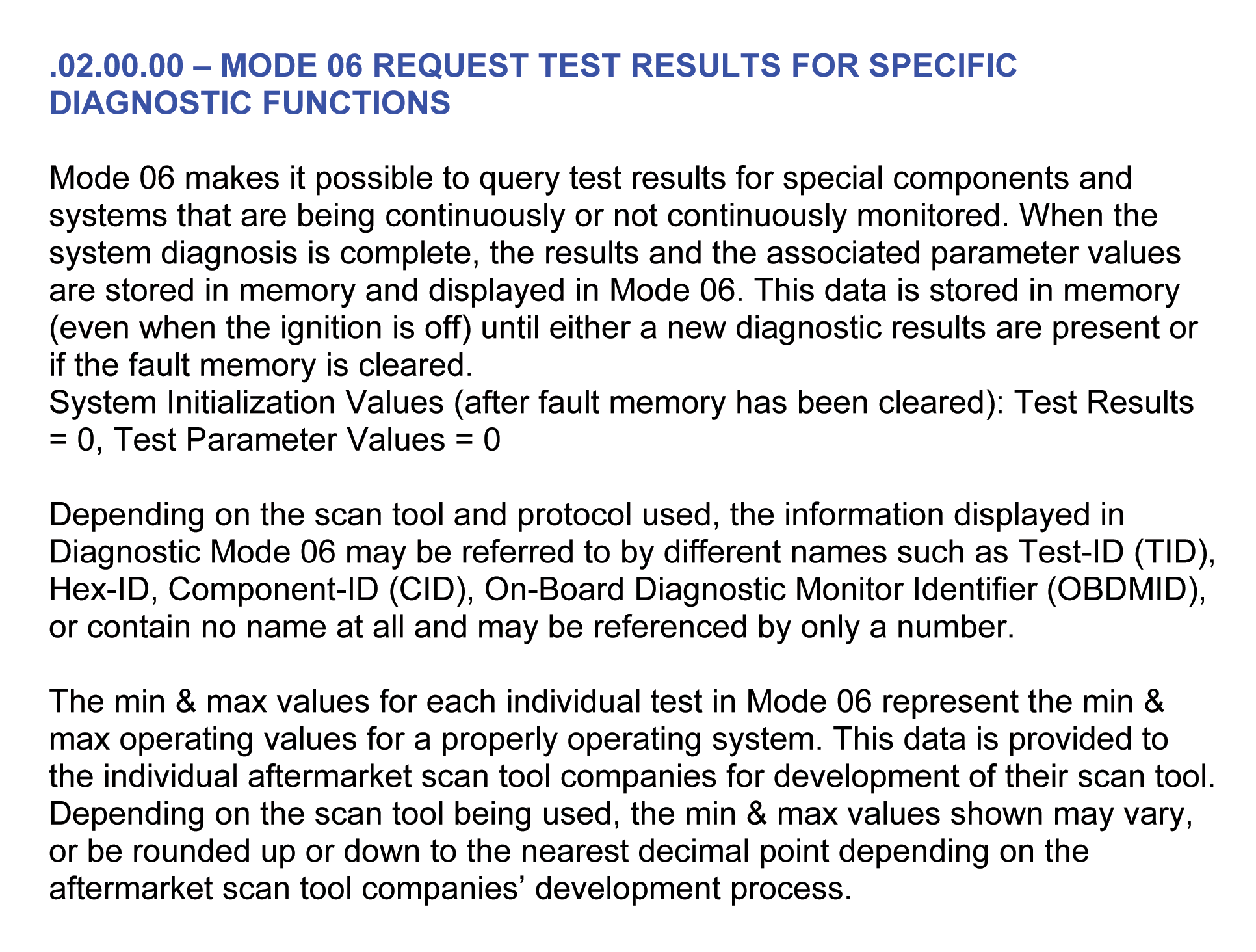

Fig 3: Mode 6 Data (2001-05 2.0L AVH) (1 Of 6)

G00105095

Courtesy of VOLKSWAGEN UNITED STATES, INC.

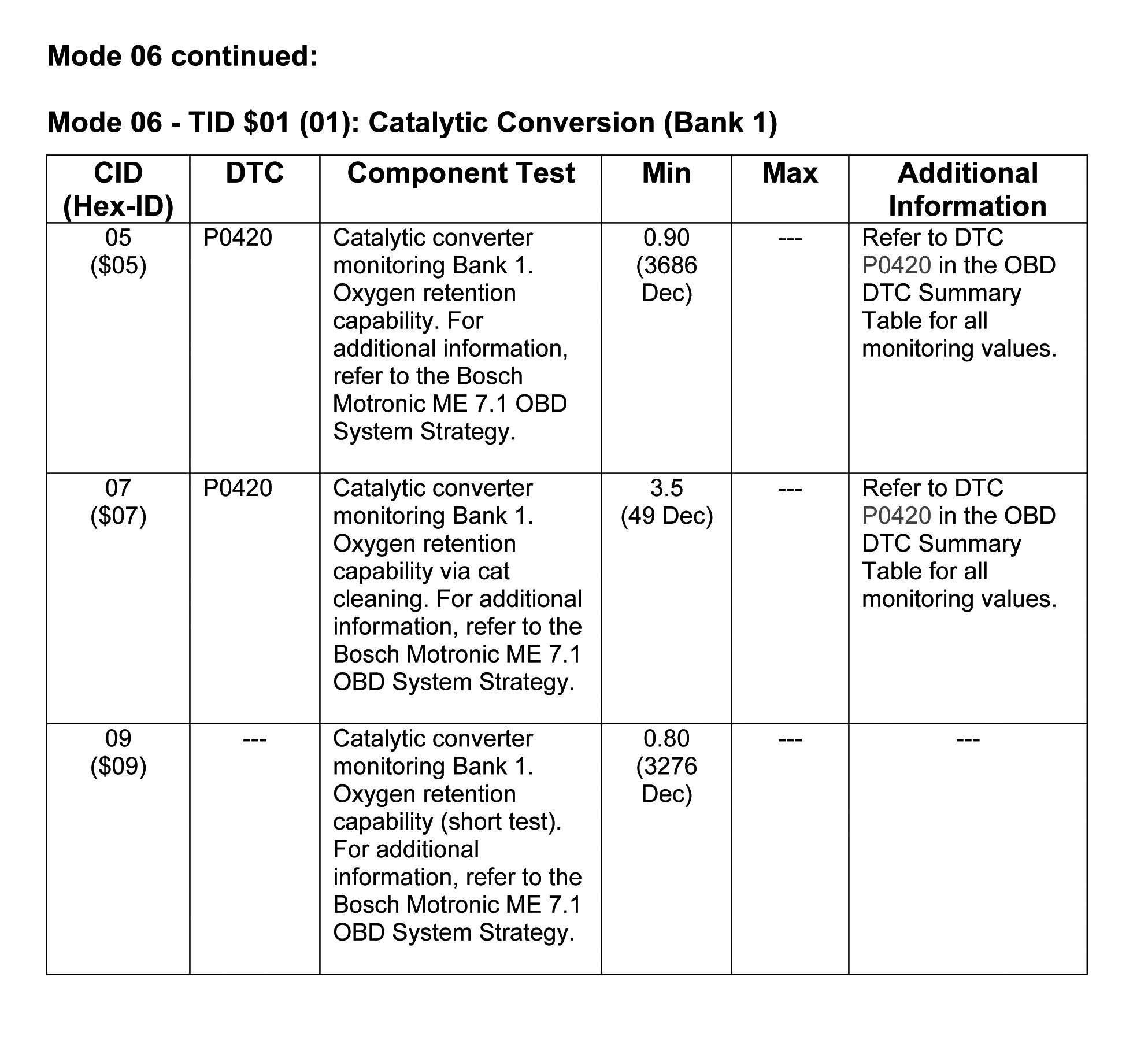

Fig 4: Mode 6 Data (2001-05 2.0L AVH) (2 Of 6)

G00105096

Courtesy of VOLKSWAGEN UNITED STATES, INC.

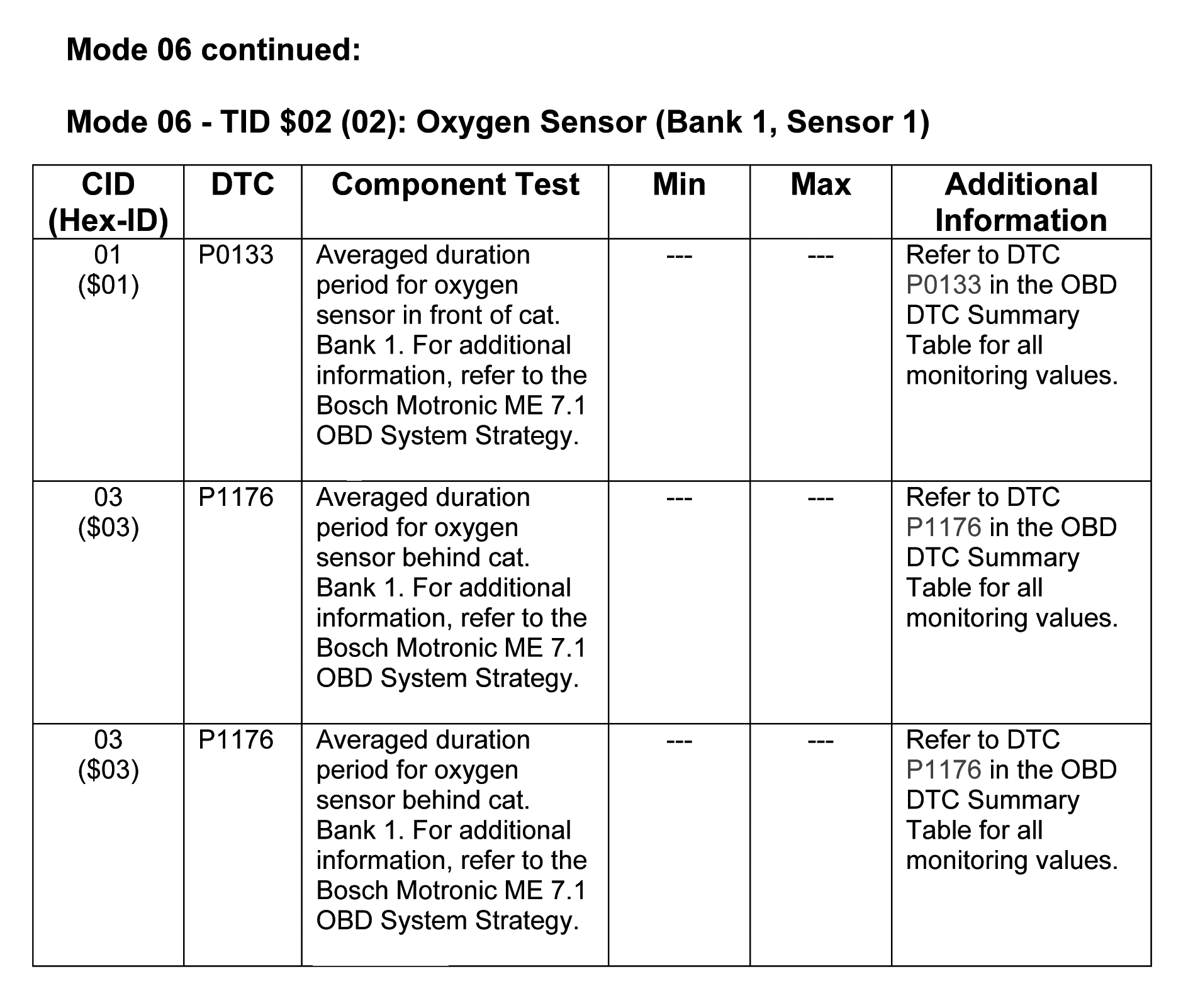

Fig 5: Mode 6 Data (2001-05 2.0L AVH) (3 Of 6)

G00105097

Courtesy of VOLKSWAGEN UNITED STATES, INC.

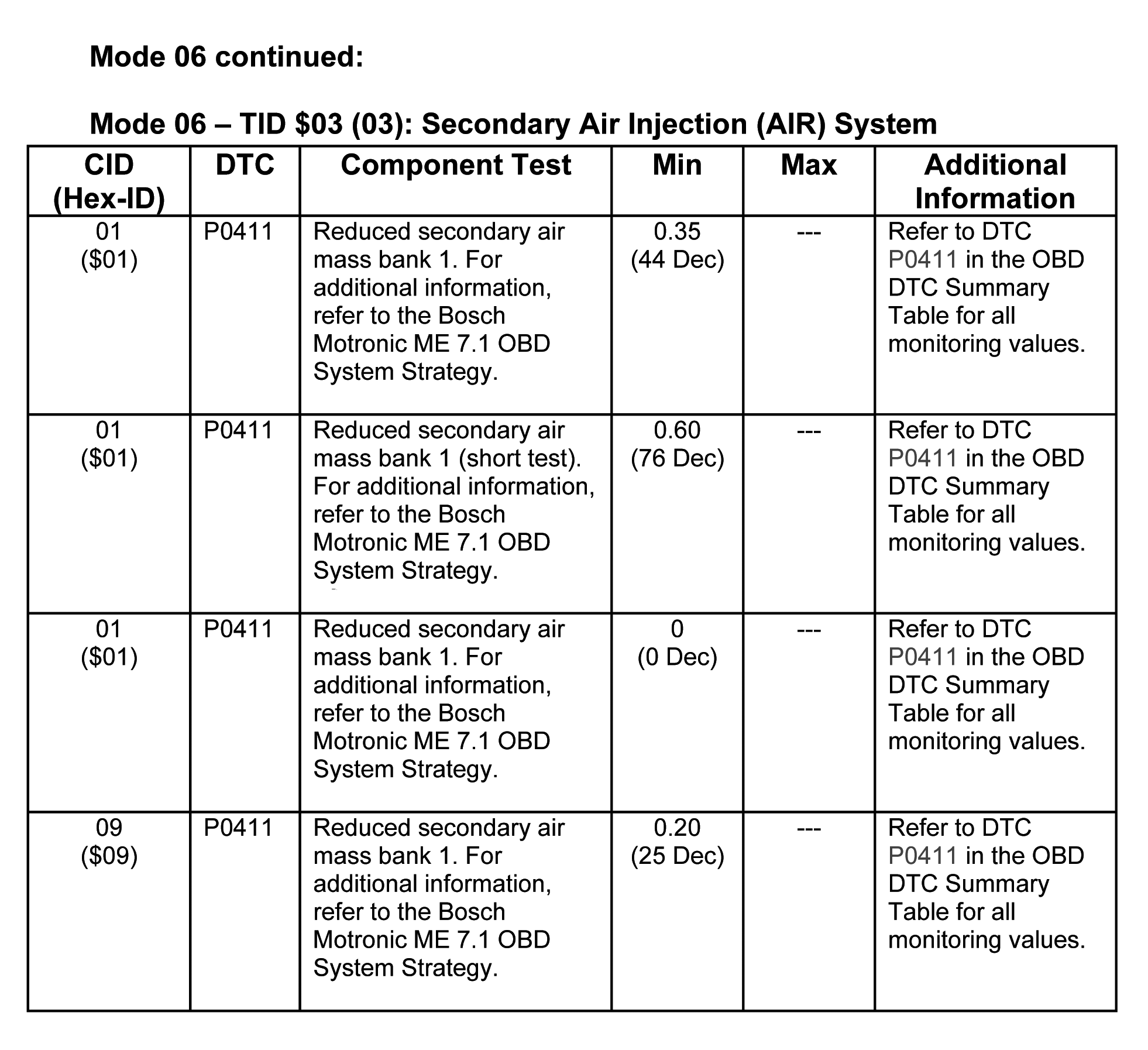

Fig 6: Mode 6 Data (2001-05 2.0L AVH) (4 Of 6)

G00105098

Courtesy of VOLKSWAGEN UNITED STATES, INC.

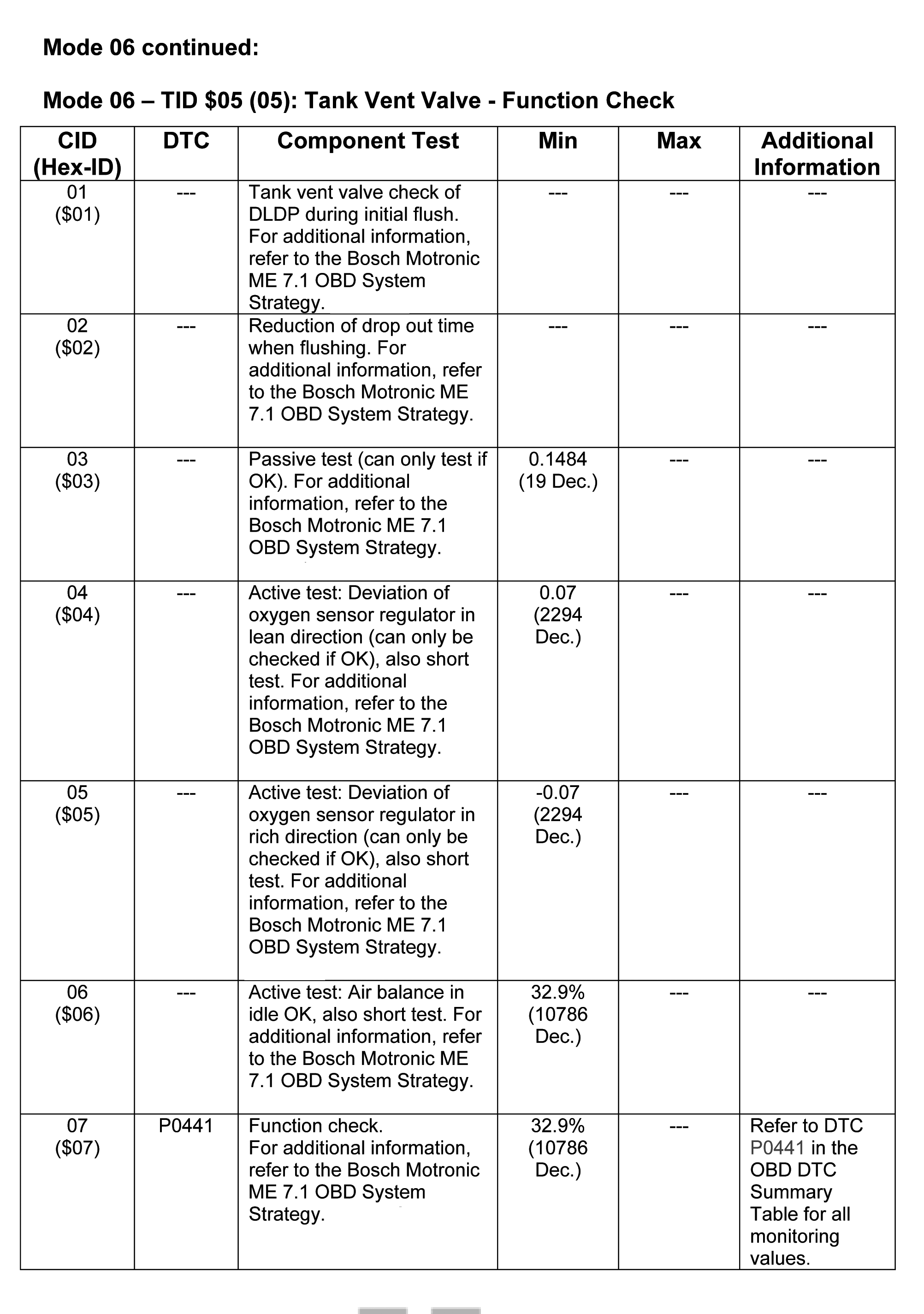

Fig 7: Mode 6 Data (2001-05 2.0L AVH) (5 Of 6)

G00105099

Courtesy of VOLKSWAGEN UNITED STATES, INC.

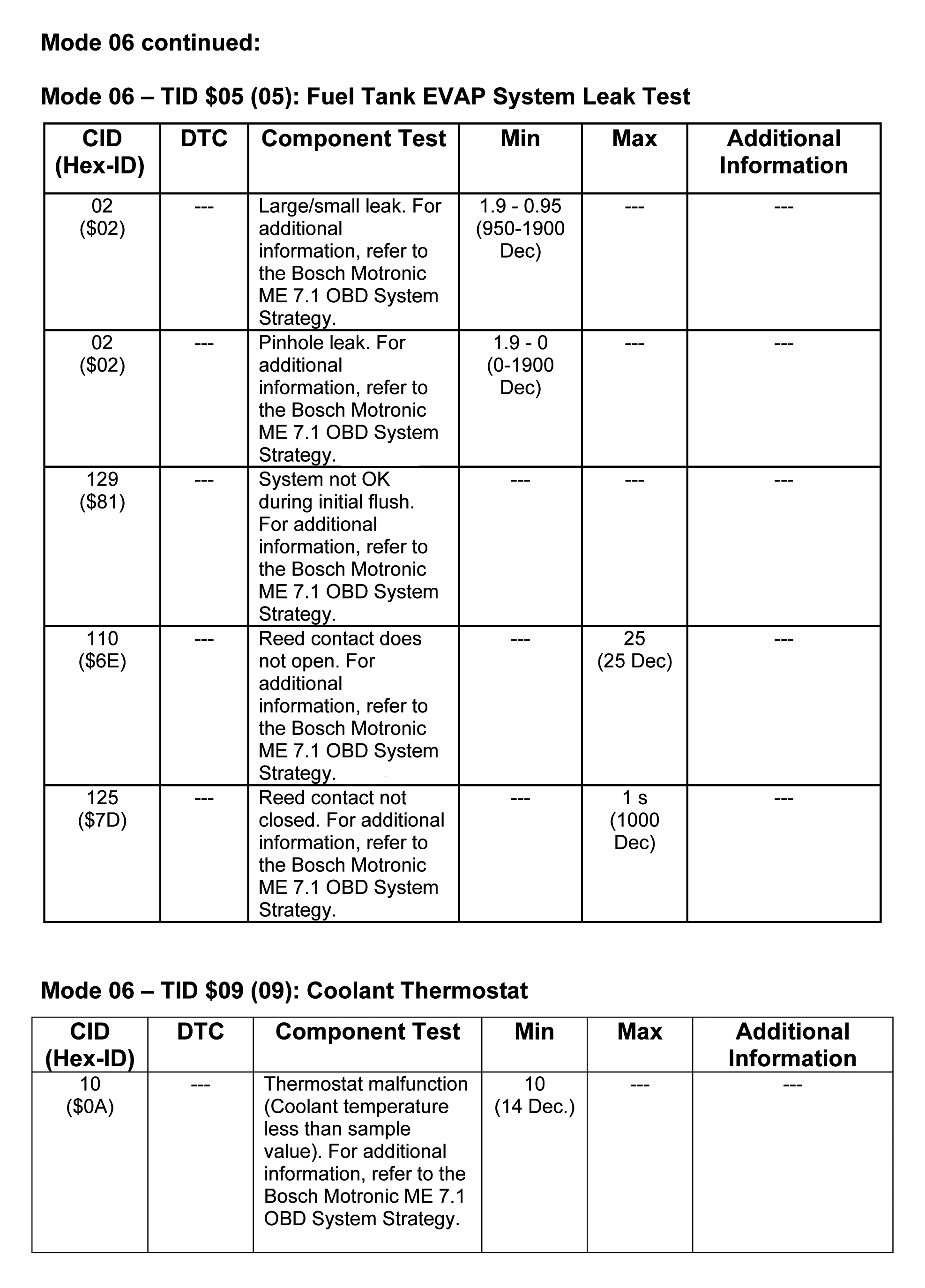

Fig 8: Mode 6 Data (2001-05 2.0L AVH) (6 Of 6)

G00105100

Courtesy of VOLKSWAGEN UNITED STATES, INC.

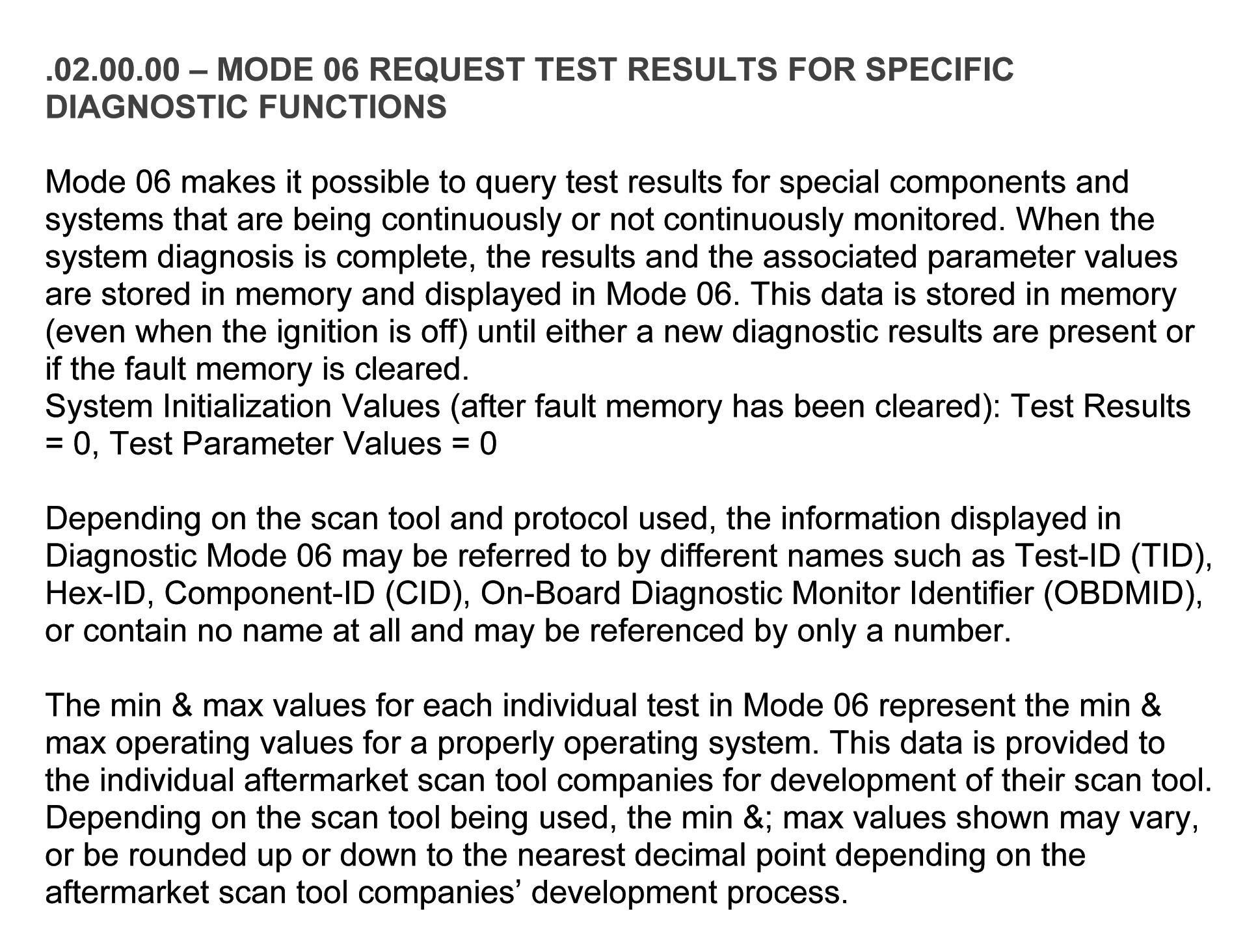

Fig 9: Mode 6 Data (2003-05 2.0L AVH) (1 Of 6)

G00105101

Courtesy of VOLKSWAGEN UNITED STATES, INC.

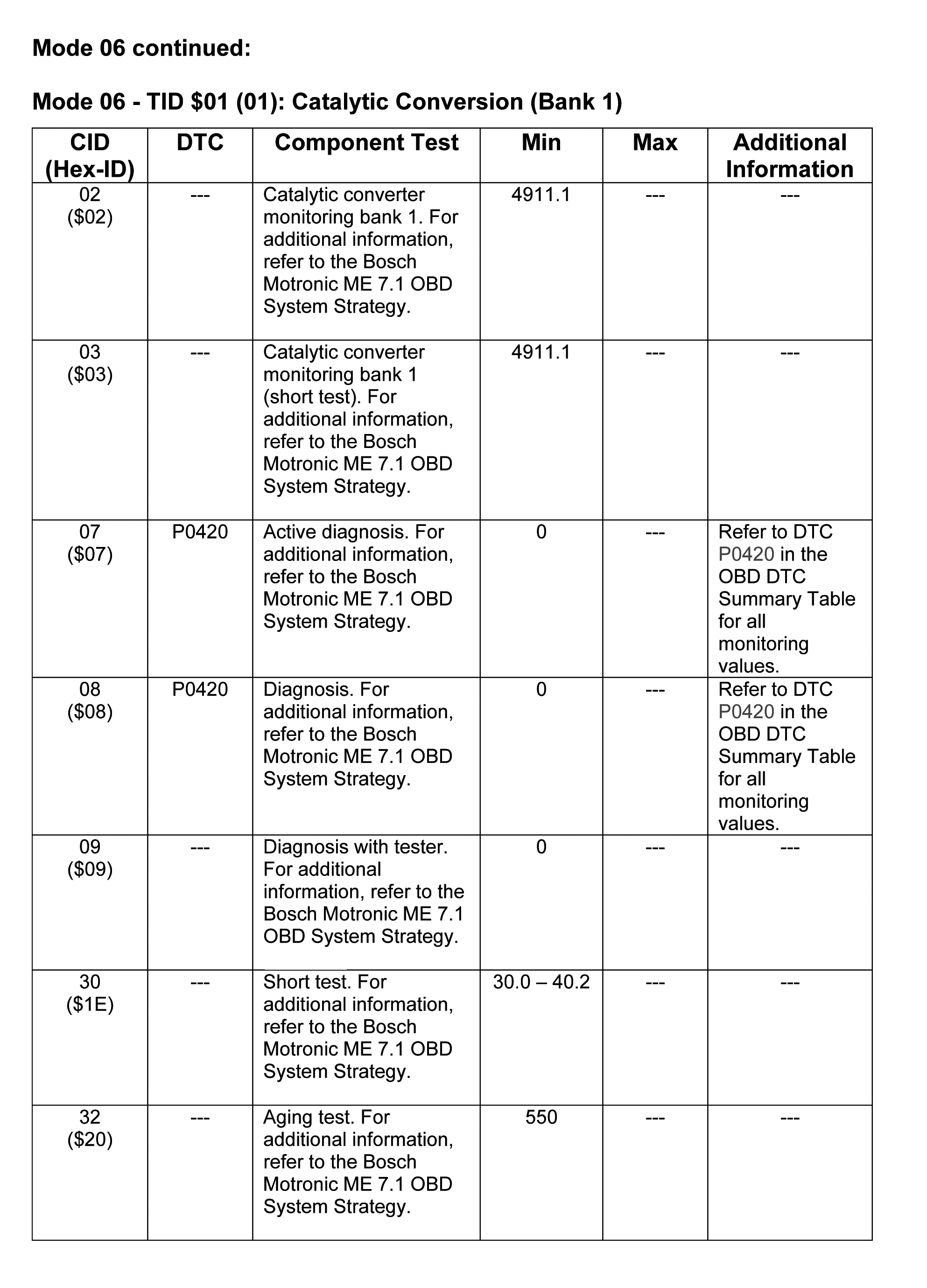

Fig 10: Mode 6 Data (2003-05 2.0L AVH) (2 Of 6)

G00105102

Courtesy of VOLKSWAGEN UNITED STATES, INC.

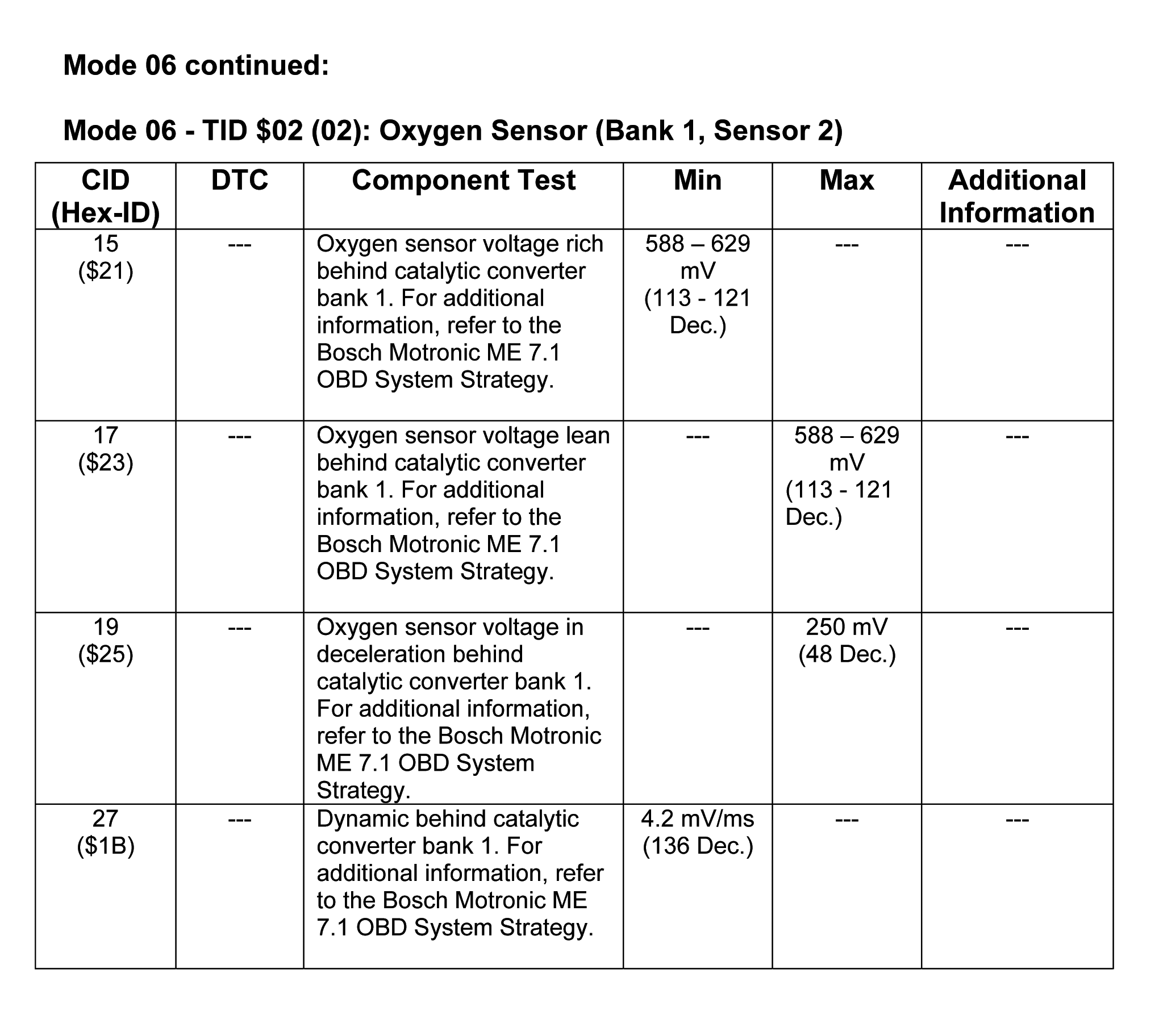

Fig 11: Mode 6 Data (2003-05 2.0L AVH) (3 Of 6)

G00105103

Courtesy of VOLKSWAGEN UNITED STATES, INC.

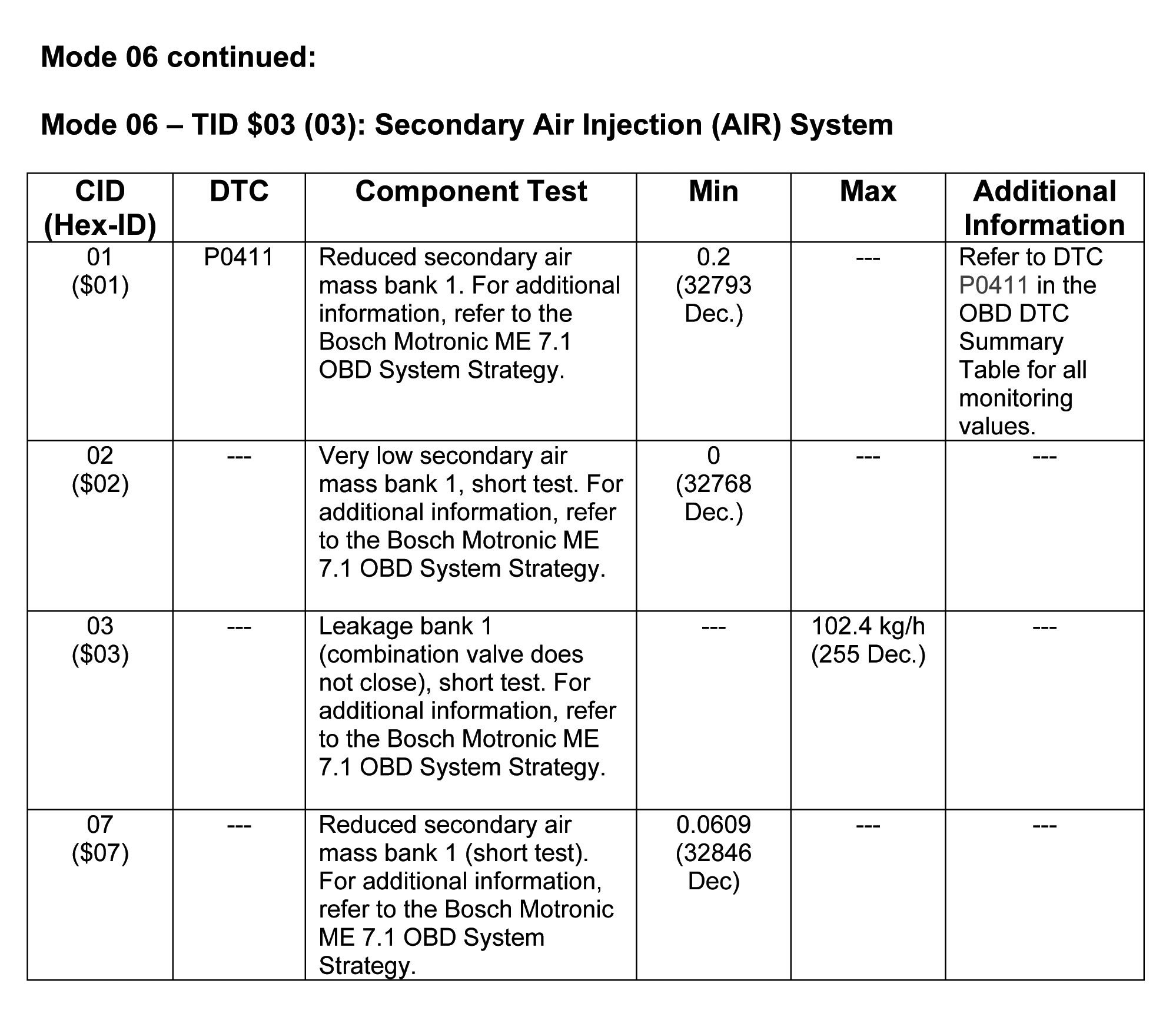

Fig 12: Mode 6 Data (2003-05 2.0L AVH) (4 Of 6)

G00105104

Courtesy of VOLVO CARS OF NORTH AMERICA.

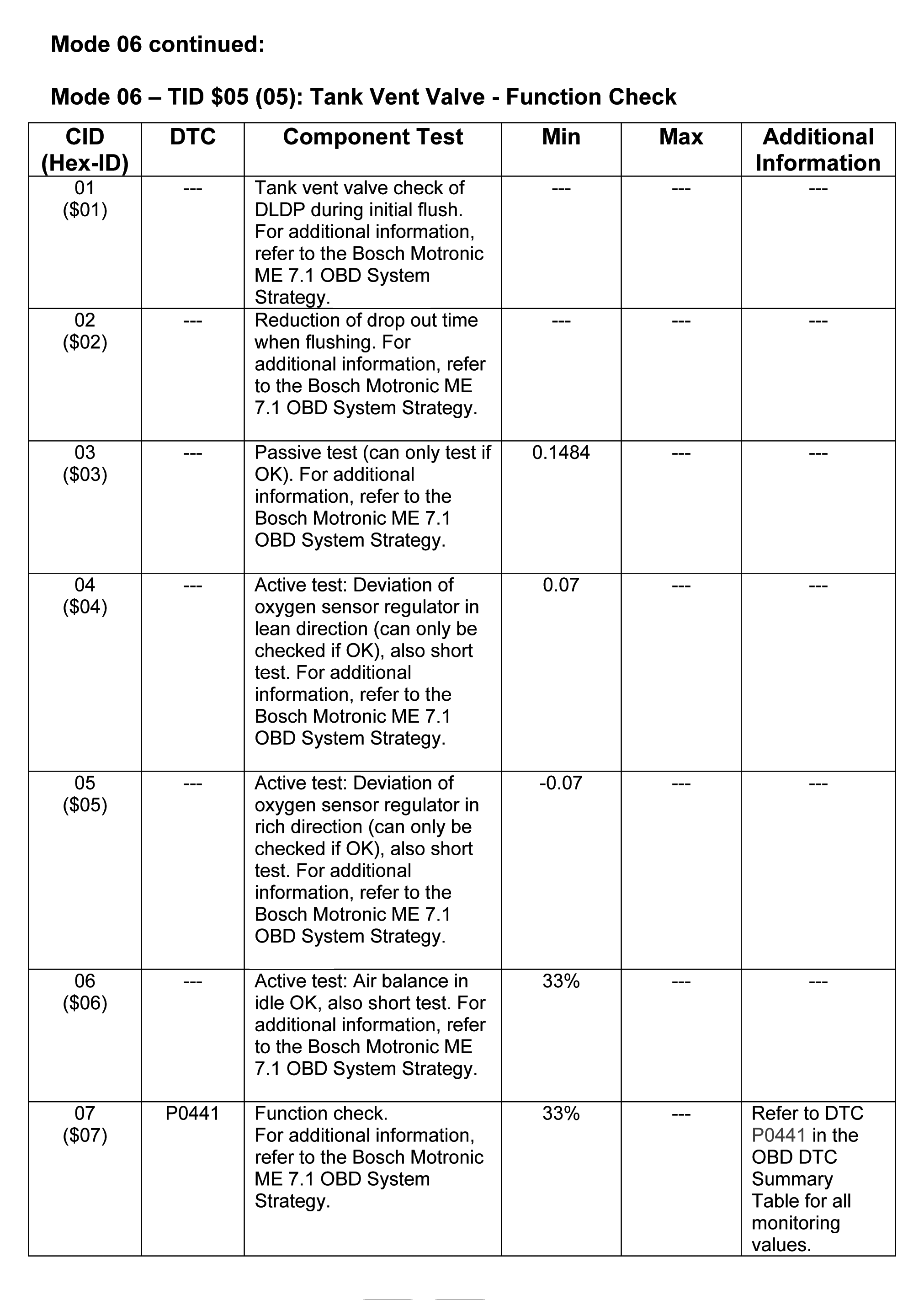

Fig 13: Mode 6 Data (2003-05 2.0L AVH) (5 Of 6)

G00105105

Courtesy of VOLKSWAGEN UNITED STATES, INC.

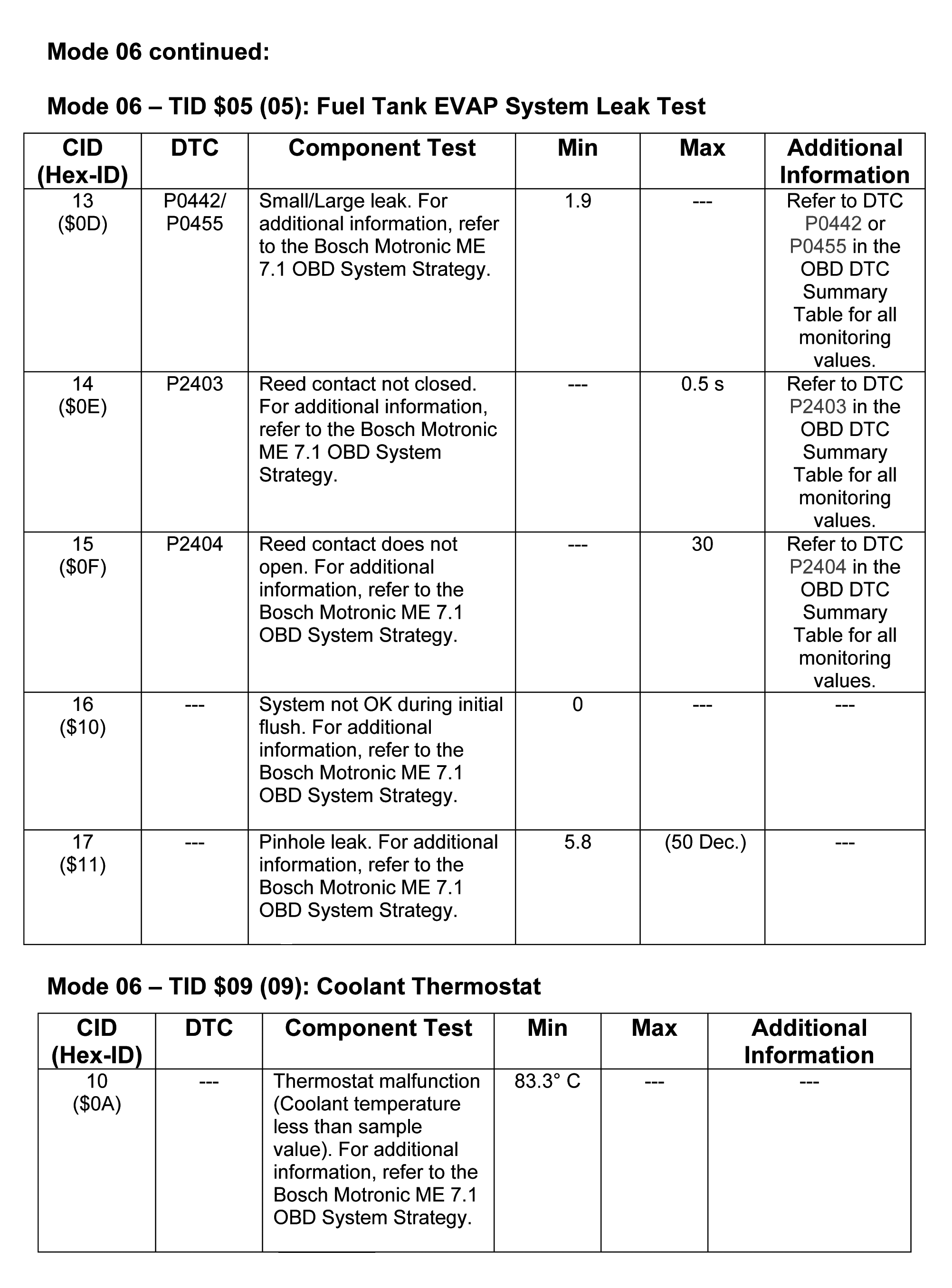

Fig 14: Mode 6 Data (2003-05 2.0L AVH) (6 Of 6)

G00105106

Courtesy of VOLKSWAGEN UNITED STATES, INC.

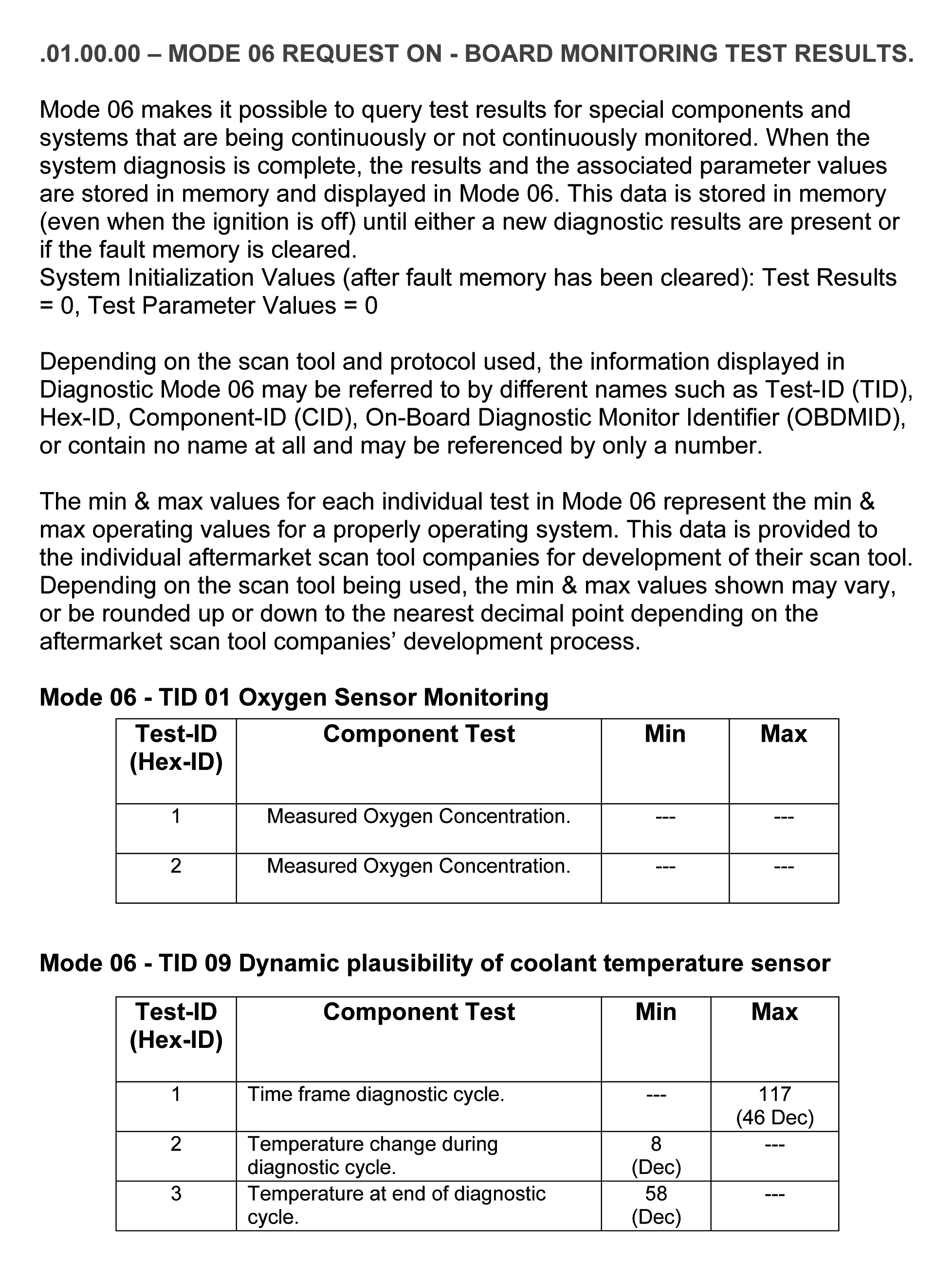

Fig 15: Mode 6 Data (2004-06 1.9L BEW) (1 Of 3)

G00105107

Courtesy of VOLKSWAGEN UNITED STATES, INC.

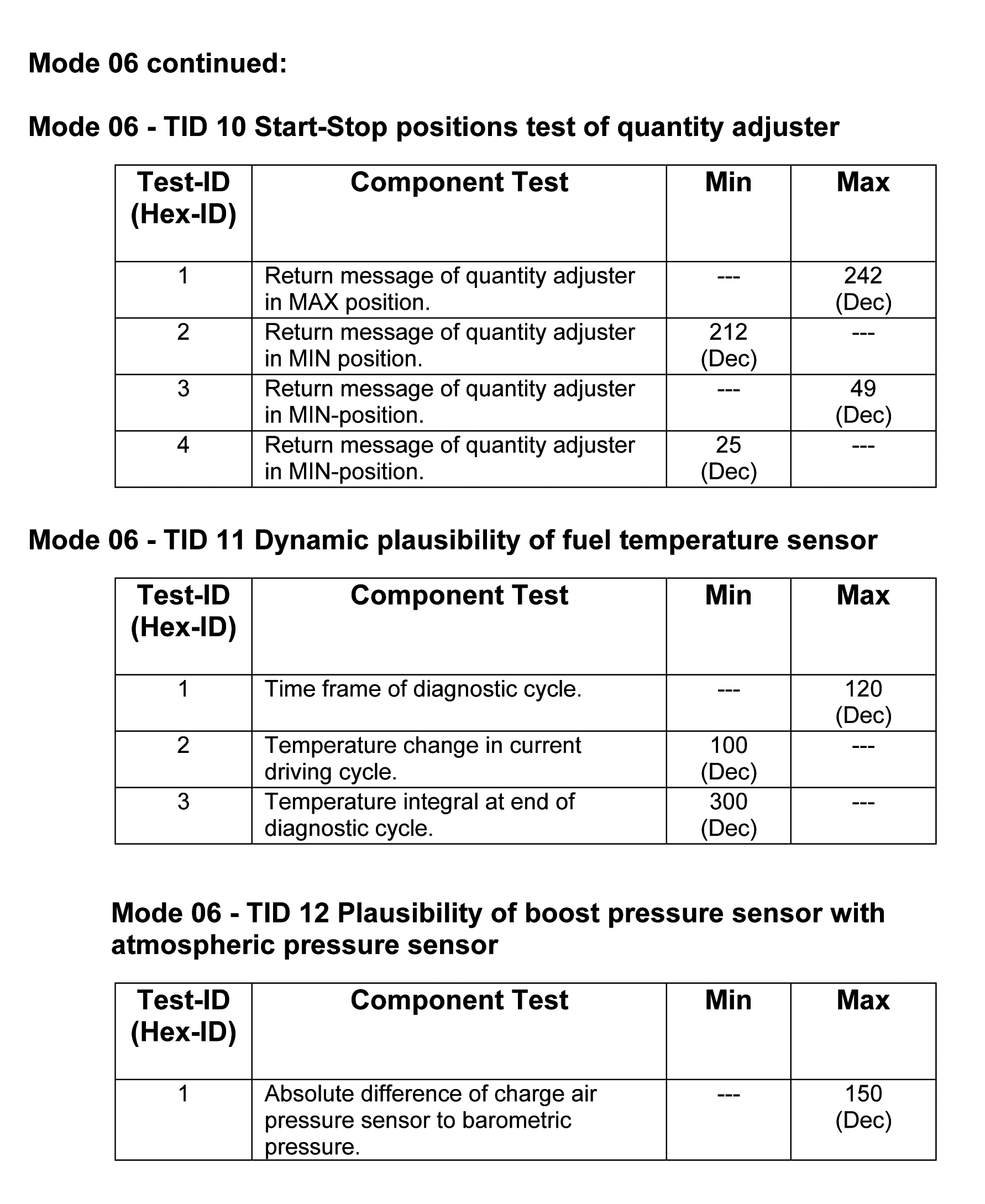

Fig 16: Mode 6 Data (2004-06 1.9L BEW) (2 Of 3)

G00105108

Courtesy of VOLKSWAGEN UNITED STATES, INC.

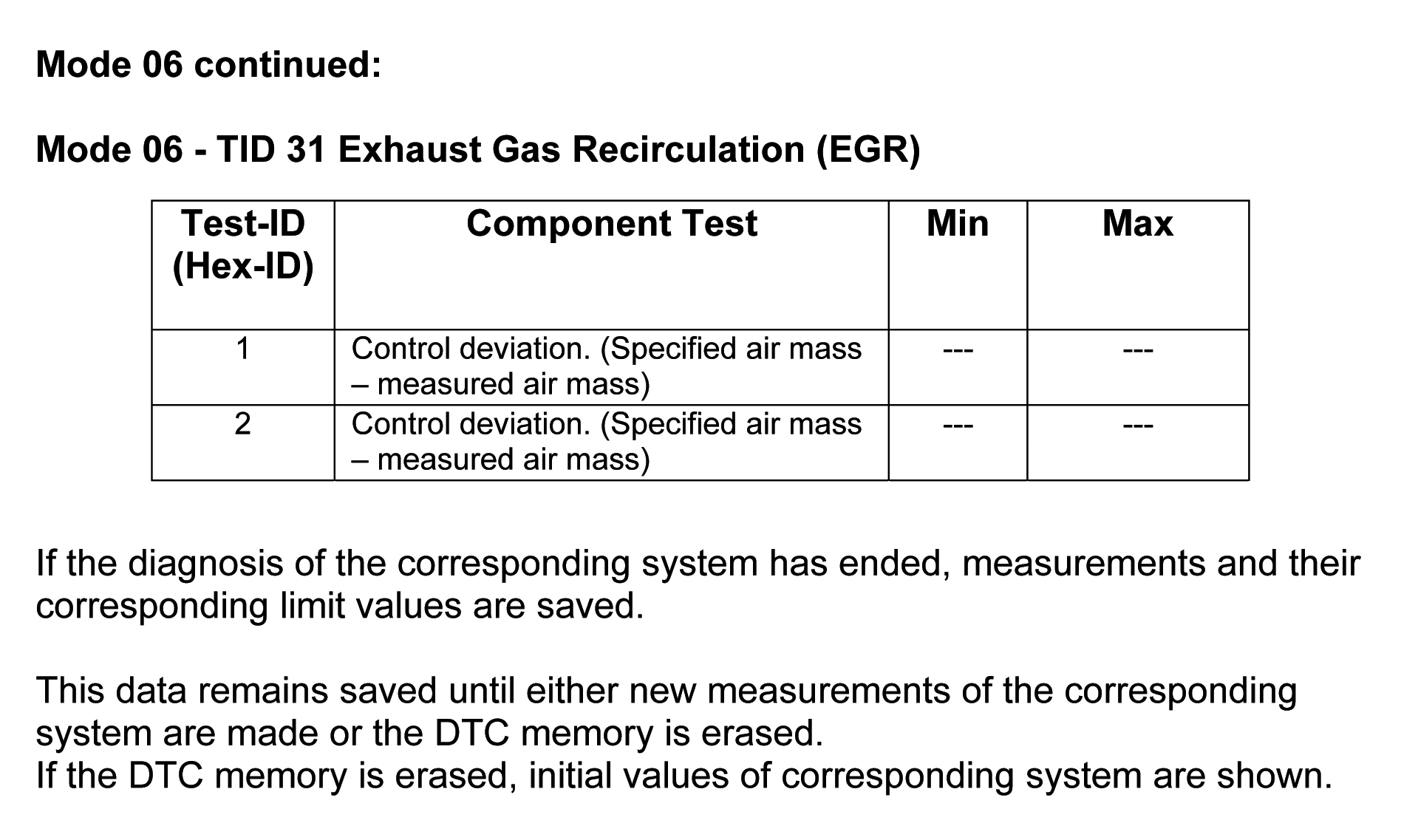

Fig 17: Mode 6 Data (2004-06 1.9L BEW) (3 Of 3)

G00105109

Courtesy of VOLKSWAGEN UNITED STATES, INC.
