Safety Precautions

To reduce the risk of personal injury and/or damage to the fuel injection and ignition system, always observe the following:

• Do not touch or remove ignition wires when engine is running or turning at starter speed.
• The ignition must be switched off before connecting or disconnecting injection and ignition system wiring or tester cables.

Observe the following if test and measuring instruments are required during a test drive:

• Test and measuring instruments must be secured to rear seat and operated by a 2nd person from this location.

If test and measuring instruments are operated from the front passenger's seat and the vehicle is involved in an accident, there is a possibility that the person sitting in this seat may receive serious injuries when the airbag is triggered.

If engine is to be cranked at starting RPM without starting:

-- Disconnect all 4 pin connectors -2- from ignition coils -1-.

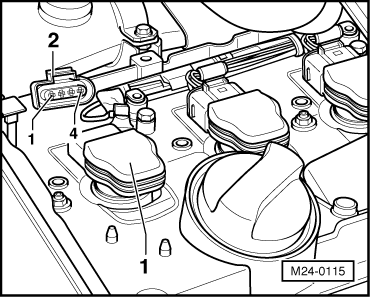

Fig 1: 4-Pin Connector At Output Stage For Ignition Coils

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull fuse No. 32 from the fuse holder.

Fig 2: Identifying Main Fuse Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
