Additional Fuse Identification
WARNING:
Always disconnect battery ground cable before servicing "high-current fuses." It is recommended that "high-current" fuses be replaced by a qualified technician.

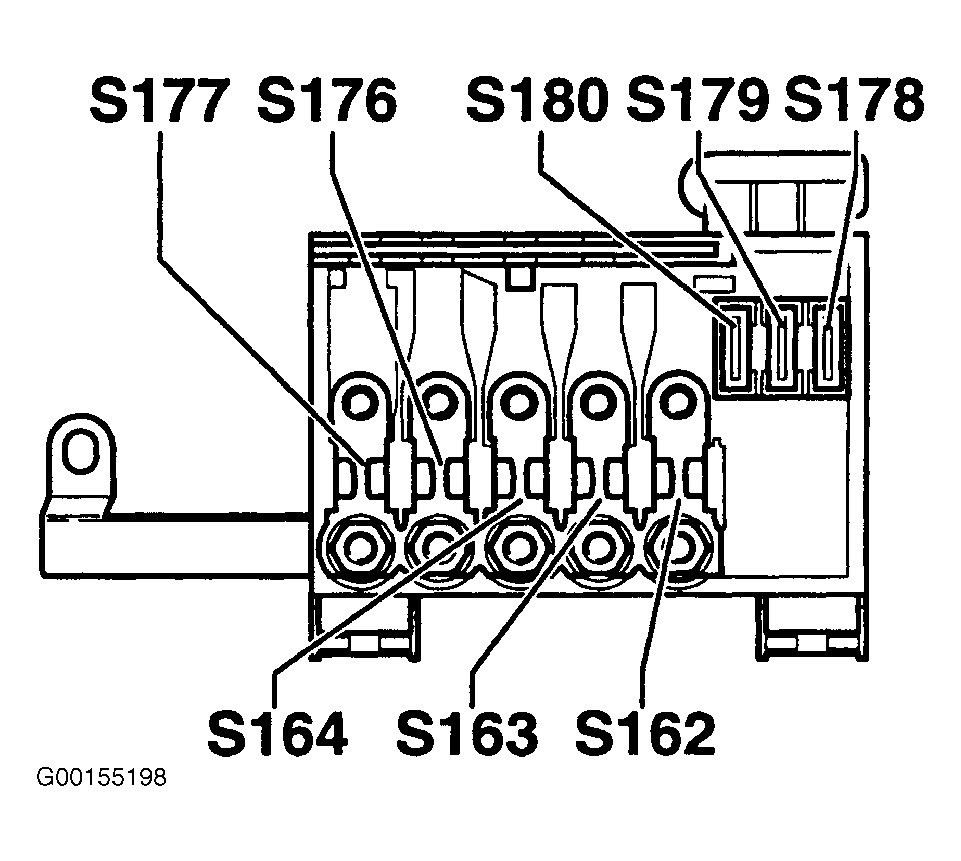

For fuse bracke/battery component identification, see FUSE BRACKET/BATTERY IDENTIFICATION table. Located in fuse bracket/battery. See Fig 1.
FUSE BRACKET/BATTERY IDENTIFICATION
| Fuse/Relay No. (Amp Rating) | Circuit Protected |
|---|---|
| S162 (50) | Spark Plugs (Coolant) |
| S163 (50) | Fuel Pump (FP) Relay/Glow Plug Relay |
| S164 (40) | Coolant Fan Control (FC) Control Module/Coolant Fan |
| S176 (110) | Relays Panel Interior |
| S177 (110 Or 150) | 90 Amp. Generator (Gen) Or 120 Amp. Generator (Gen) |
| S178 (30) | ABS (Hydraulic Pump) |
| S179 (30) | ABS |
| S180 (30) | Coolant Fan |
