Rotation Rate Sensor And Transverse Acceleration Sensor, Through 11.01

NOTE:

Removing and installing rotation rate sensor -G202- and transverse acceleration sensor -G200- is identical except for the direct exchange of the part to be removed.

Removing

-- For vehicles equipped with coded anti-theft radio, note radio code, obtain if necessary.

-- Disconnect battery.

-- Pry off cover caps -1- and remove screws -2-.

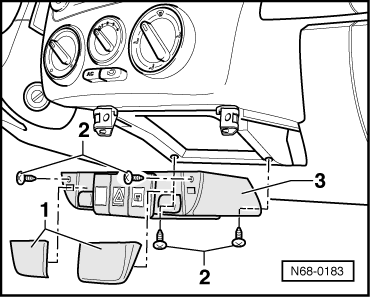

Fig 1: Identifying Switch Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove switch mount -3- from bracket.

-- Loosen rear cover -1- from instrument panel and pull out.

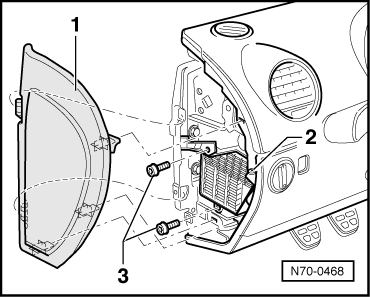

Fig 2: Identifying Instrument Panel End Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolt -2- and two bolts -3-.

-- Turn rotating handle -1- of light switch to position 0.

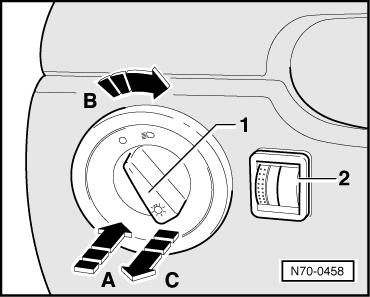

Fig 3: Identifying Headlight Range Control Switch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push in rotating handle -arrow A- and turn toward right -arrow B-.

-- Pull switch out of instrument panel -arrow C- and disconnect harness connectors.

-- Unclip switch -2- for headlight range control and disconnect connector.

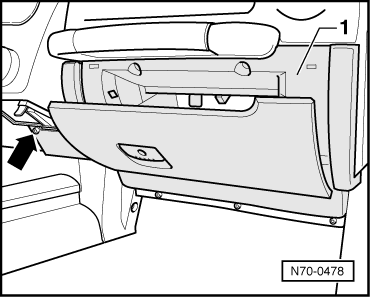

-- Remove bolt (under cover cap) -arrow- from glove compartment -1-.

Fig 4: Locating Glove Compartment Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove four bolts -1-.

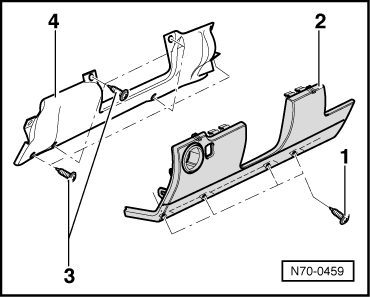

Fig 5: Identifying Trim And Impact Plate

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip upper trim -2- and remove from instrument panel.

-- Remove six bolts -3-.

-- Remove baffle plate -4-.

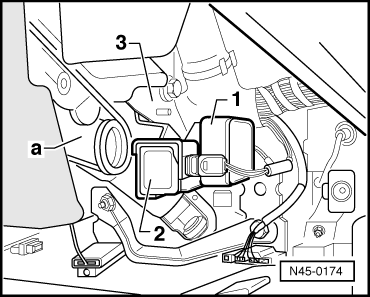

Location: rotation rate sensor -G202- -1- and transverse acceleration sensor -G200- -2- are secured to mounting bracket for steering column -3-.

Fig 6: Identifying Steering Column, Rotation Rate Sender & Transverse Acceleration Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

a - Steering column

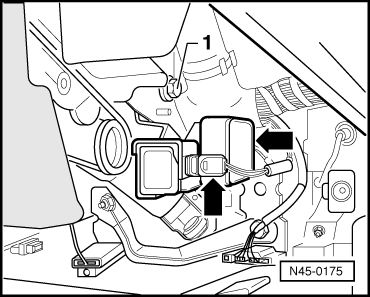

-- Disconnect connectors -arrows- from rotation rate sensor -G202- and transverse acceleration sensor -G200-.

Fig 7: Identifying Rotation Rate Sender, Transverse Acceleration Connectors, & Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolt -1- and remove rotation rate sensor -G202- and transverse acceleration sensor - G200-.

Removing Rotation Rate Sensor -G202-

-- Remove nuts -a- from rotation rate sensor -G202- -1-.

Fig 8: Identifying Rotation Rate Sender & Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove rotation rate sensor -G202-.

Removing Transverse Acceleration Sensor - G200-

-- Using a screwdriver, pry off bracket -1- from transverse acceleration sensor -G200- -2-.

Fig 9: Lifting Transverse Acceleration Sensor Retainer Using A Screwdriver

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove transverse acceleration sensor -G200-.

Installing

Installing Rotation Rate Sensor -G202-

-- Insert rotation rate sensor -G202- and align straight.

-- Tighten nuts -a- on rotation rate sensor -G202- -1-.

Fig 10: Identifying Rotation Rate Sender & Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing Transverse Acceleration Sensor - G200-

-- Insert transverse acceleration sensor -G200- in bracket.

-- Installation position: Angled side -arrow- of transverse acceleration sensor -G200- -1- must face bracket -2-.

Fig 11: Identifying Slanted Side Of The Lateral Acceleration Sensor & Retainer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide bracket -2- over transverse acceleration sensor -G200- -1- until it engages.

Rest of installation is in reverse order of removal.

-- Code radio.

Tightening Specifications
Rotation rate sensor -G202- to bracket	9 Nm
Hex bolt to mounting bracket for steering column	20 Nm
