Central Locking And Comfort System Assembly Overview

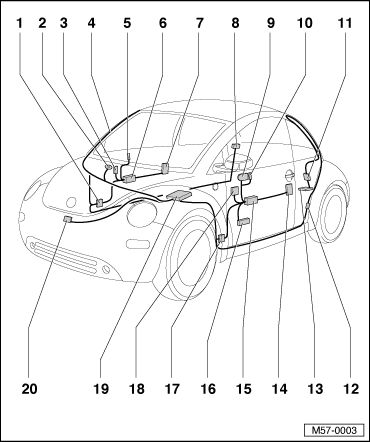

Fig 1: Identifying Central Locking System And Comfort System, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Connector station
- Installed location: Lower A-pillar, covered by footwell trim.
  -- Remove lower A-pillar trim. Refer to Removal and Installation
Alarm signal horn
- Installed location: Right, behind plenum chamber sealing cover
- Removing:
  -- Remove plenum chamber sealing cover. Refer to PLENUM CHAMBER COVER
Right front window regulator switch
- Only for comfort system
Antenna for remote control
- Under A-pillar trim
Front passenger's interior locking button
Right front door control module
- Only for comfort system
- Integrated in window regulator motor
- Removing:
  -- Remove door trim. Refer to Removal and Installation

  -- Remove window regulator motor.
Right front door lock
- Door lock is secured to subframe
- Electrical central locking system is integrated in door lock module
- Removing:
  -- Remove door trim Removal and Installation

  -- Remove the door lock. Refer to DOOR LOCK, SEDAN .
Fuel Tank Lid Unlock Motor -V155-
- Installed location: under the C-pillar trim
- Removing, refer to FUEL FILLER DOOR UNLOCK MOTOR
Exterior mirror adjustment switch and selector switch
Driver's interior locking button
Rear lid remote release motor
- Bolted to carrier
- Micro switch for lock cylinder is also located on carrier
- Motor -V151- can only be removed in conjunction with carrier
- Removing and Installing, refer to REAR LID REMOTE RELEASE MOTOR CARRIER
Connector station
- Installed location: on the left in the luggage compartment
- Not for convertible
Rear lid latch
- Bolted onto lid
- Removing:
  -- Remove rear lid trim. Refer to Removal and Installation

  -- Remove the lid lock. Refer to REAR LID LOCK, SEDAN .
Left front door lock
- Door lock is secured to subframe
- Electrical central locking system is integrated in door lock module
- Removing:
  -- Remove door trim. Refer to Removal and Installation

  -- Remove the door lock. Refer to DOOR LOCK, SEDAN .
Left front door control module
- Only for comfort system
- Integrated in window regulator motor
- Removing:
  -- Remove door trim. Refer to Removal and Installation

  -- Remove window regulator motor.
Control unit
- With the fuel filler door release switch and rear lid release switch
- installed in door trim
- Removing:
  -- Remove door trim. Refer to Removal and Installation
Connector station
- Installed location: Lower A-pillar, covered by footwell trim.
  -- Remove lower A-pillar trim. Refer to Removal and Installation

  -- Removing and installing, refer to Removal and Installation
Window regulator switch
- Only for comfort system
Central control module
- Bolted on under instrument cluster with bracket at steering column
- To remove, trim under steering column must be removed beforehand. Refer to Removal and Installation
Hood Lock
- Anti-theft warning system contact switch
- Installed location: in lock carrier
- Removing lid lock. Refer to HOOD LOCK .
