Fuse Panel Identification: Notes
NOTE:

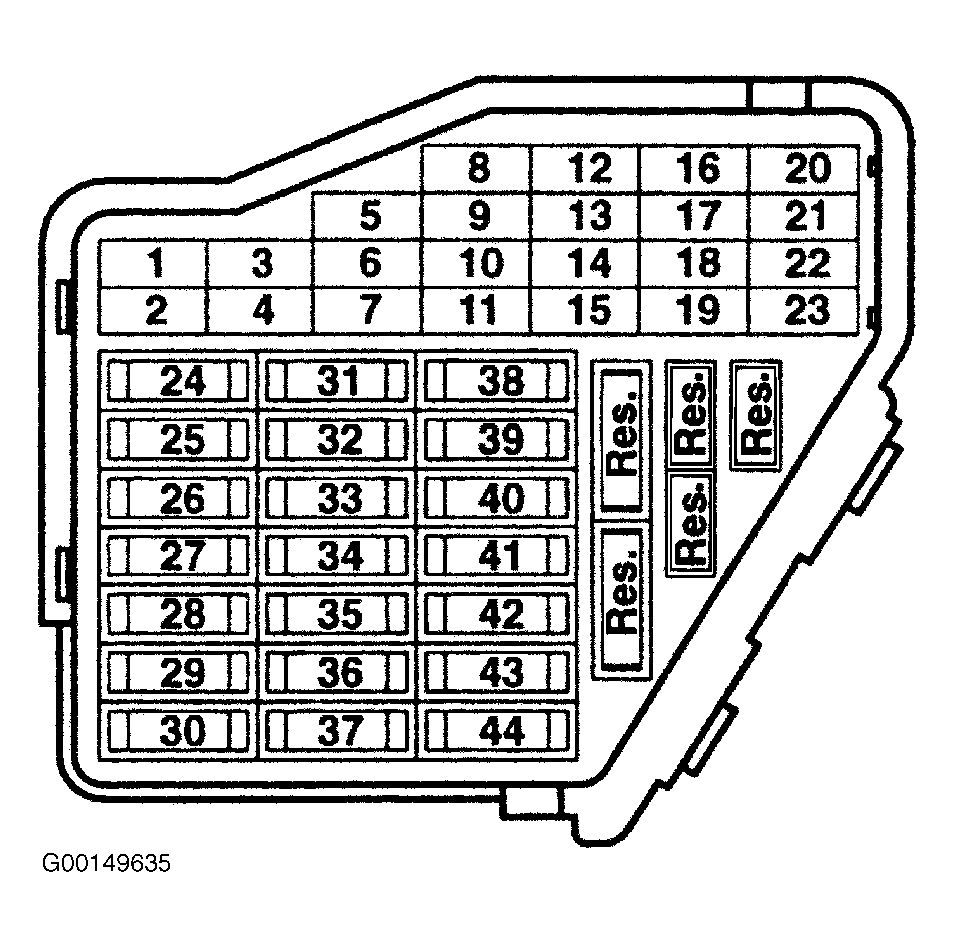

Located on fuse panel. See Fig 1. For fuse amp rating and description of circuits protected, see FUSE IDENTIFICATION table. For fuse color identification, see FUSE COLOR/AMP RATING table.
NOTE:
Fuses 23 through 44 may be designated in wiring diagrams with a prefix of 2. For example, fuse No. 29 may be labeled as 229. Fuse No. 43 may be labeled as 243.
FUSE IDENTIFICATION
| Fuse No. (Amp Rating) | Circuits Protected |
|---|---|
| 1 (10) | Heated Washer Nozzles, Heated Outside Mirrors |
| 2 (10) | Turn Signal System |
| 3 (5) | Illumination |
| 4 (5) | License Plate Light |
| 5 (7.5) | Comfort System |
| 6 (5) | Central Locking System |
| 7 (10) | Back-Up Lights |
| 8 (5) | Telephone System |
| 9 (10) | ABS |
| 10 (10) | Engine Control, Gasoline |
| 11 (5) | Instrument Cluster, Shift Lock |
| 12 (7.5) | B+ (Battery Positive Voltage) For Data Link Connector (DLC) |
| 13 (10) | Brake Lights |
| 14 (5 Or 10) | Interior Lights, With Central Locking Or Interior Lights Only |
| 15 (5) | Interior Lights, With Central Locking Or Interior Lights Only |
| 16 (10) | A/C Clutch, Electrical Water Pump |
| 17 (7.5) | Door Lock Heater |
| 18 (10) | Right Headlight, High Beam |
| 19 (10) | Left Headlight, High Beam |
| 20 (10) | Right Headlight, Low Beam |
| 21 (10) | Left Headlight, Low Beam |
| 22 (5) | Sidemarker Lights, Right |
| 23 (5) | Sidemarker Lights, Left |
| 24 (20) | Wiper System, Washer Pump |
| 25 (25) | Fresh Air Blower, Air Conditioning |
| 26 (25) | Rear Window Defogger |
| 27 (10) | Daytime Running Lights |
| 28 (15) | Fuel Pump (FP) |
| 29 (10 Or 15) | Engine Control, Gasoline Or Engine Control, Diesel |
| 30 (20) | Sunroof |
| 31 (20) | Automatic Transmission |
| 32 (10 Or 15 ) | Engine Control, Injectors, Gasoline Or Engine Control, Injectors, Diesel |
| 33 (20) | Headlight Washer System |
| 34 (10) | Engine Control |
| 35 (30) | Trailer Socket |
| 36 (15) | Fog Lights |
| 37 (10) | Radio System |
| 38 (15) | Luggage Compartment Light, Central Locking System |
| 39 (15) | Emergency Flasher System |
| 40 (20) | Dual Horn |
| 41 (15) | Cigarette Lighter |
| 42 (25) | Radio System |
| 43 (10) | Engine Control |
| 44 (15) | Heated Seats |
