Planet Carrier, Adjusting: Example

Measured value 2.00 mm =

Insert 1.7 mm thick shim.

-- Remove small input shaft bolt.

-- Insert correct shim -3- on small input shaft -arrow-.

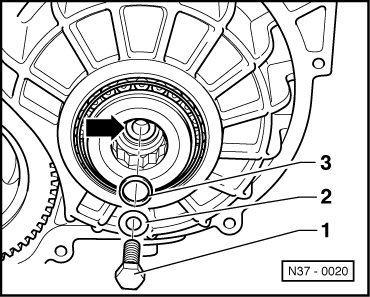

Fig 1: Identifying Small Drive Shaft Bolt, Washer, Shim & Small Input Shaft Shoulder

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten small input shaft bolt -1- with washer -2-.

Tightening torque 30 Nm.

-- Carry out planet carrier check measurement, PLANET CARRIER, CHECKING MEASUREMENT .
