ABS/EDL/ASR Control Module Connector End Views (J104, T47a)

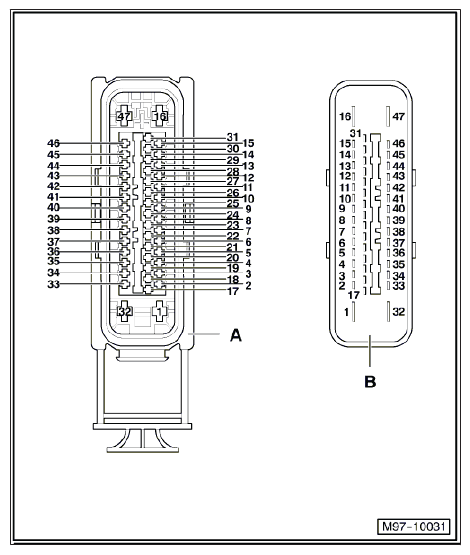

Fig 1: ABS/EDL/ASR Control Module Connector End Views (J104, T47a)
A
47-Pin Connector, in wiring harness -T47a-
B
ABS/EDL/ASR Control Module -J104-
