Headlamp

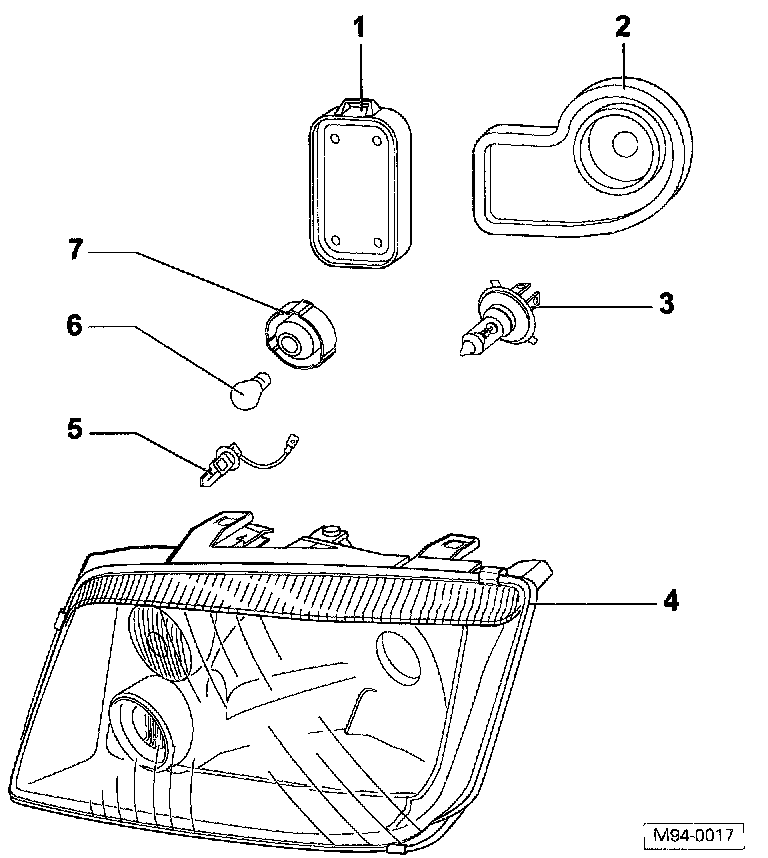

Headlights (Jetta), assembly overview

1- Sealing cap

2- Sealing cap

3- Two-wired bulb for high and low beam
Bulb: H4, 12 V, 60 W/55 W

4- Headlight insert
Adjusting headlight Adjustments
Removing and Installing Service and Repair

5- Fog light bulb
Bulb: H3, 12 V, 55 W

6- Turn signal bulb
Bulb: 12 V 21W

7- Turn signal bulb holder
