Parts of the ignition, removing and installing (Vehicles with engine code BDF)
NOTE:
Engine Control Module (ECM) with harness connectors. See item 8 in PARTS OF THE FUEL INJECTION, REMOVING AND INSTALLING (VEHICLES WITH ENGINE CODE BDF)
.
NOTE:

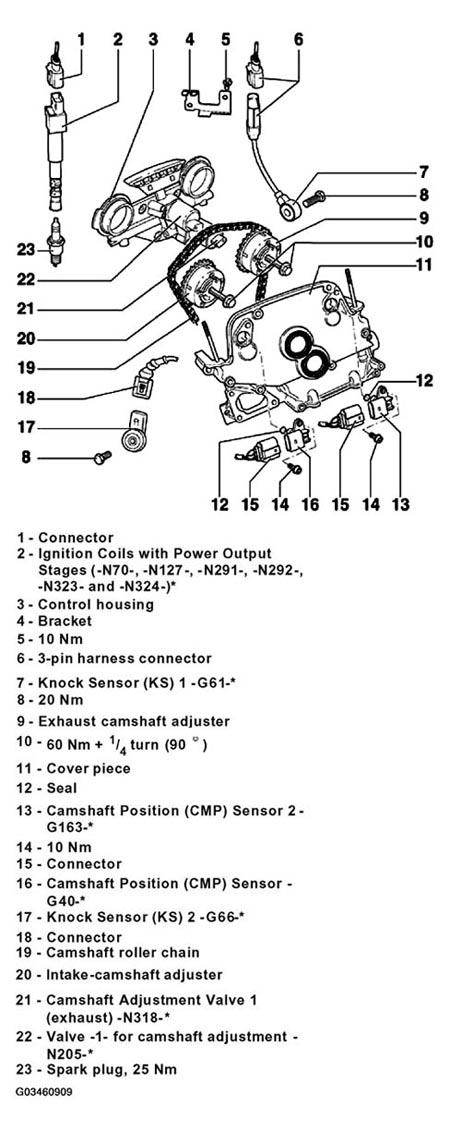

The following list refers to Fig 1.
- Connector
- Black, 4-pin
- before disconnecting, mark allocation of connector to component
- Ignition Coils with Power Output Stages (-N70-, -N127-, -N291-, -N292-, -N323- and -N324-)*
- Component location. See OVERVIEW OF COMPONENT LOCATIONS (VEHICLES WITH ENGINE CODE BDF) .
- Checking. See IGNITION COILS WITH POWER OUTPUT STAGES (VEHICLES WITH ENGINE CODE BDF), CHECKING .
- Control housing
- For camshaft adjustment
- Removing and installing:
See VALVE GEAR, SERVICING .
- Bracket
- For harness connector of Knock Sensor (KS) 1 -G61-
- Component location: at right cylinder head
- 10 Nm
- 3-pin harness connector
- Black
- Terminals are gold-plated
- Knock Sensor (KS) 1 -G61-*
- Component location: between cyl. 1 and cyl. 3
- contact surfaces between knock sensor and cylinder block must be free of corrosion, dirt and grease
- Checking. See CHECK KNOCK SENSORS .
- 20 Nm
- Tightening torque affects function of Knock Sensor (KS)
- Exhaust camshaft adjuster
- Identification: 32A
- Only rotate engine with camshaft adjuster installed
- with sensor wheel for Camshaft Position (CMP) Sensor 2 -G163-
- if camshaft adjuster has been removed, check timing after installation
- 60 Nm + 1/4 turn (90°)
- replace
- Contact surface of sensor wheel at bolt head must be dry when installing
- To remove and install, counter-hold at camshaft using an open-end spanner (32 mm)
- Cover piece
- Seal
- replace
- Camshaft Position (CMP) Sensor 2 - G163-*
- Component location. See OVERVIEW OF COMPONENT LOCATIONS (VEHICLES WITH ENGINE CODE BDF) .
- For exhaust camshaft
- Terminals of sensor and connector are gold-plated
- Checking. See CHECK CAMSHAFT POSITION (CMP) SENSOR .
- 10 Nm
- Connector
- black, 3-pin
- Terminals of sensor and connector are gold-plated
- before disconnecting, mark allocation of connector to component
- Camshaft Position (CMP) Sensor - G40-*
- Component location. See OVERVIEW OF COMPONENT LOCATIONS (VEHICLES WITH ENGINE CODE BDF) .
- for intake camshaft
- Terminals of sensor and connector are gold-plated
- Checking. See CHECK CAMSHAFT POSITION (CMP) SENSOR .
- Knock Sensor (KS) 2 -G66-*
- Component location: between cyl. 4 and cyl. 6
- contact surfaces between knock sensor and cylinder block must be free of corrosion, dirt and grease
- Terminals of sensor and connector are gold-plated
- Checking. See CHECK KNOCK SENSORS .
- Connector
- black, 2-pin
- Terminals of sensor and connector are gold-plated
- Camshaft roller chain
- Mark direction of travel (installation position) before removing
- Intake-camshaft adjuster
- Identification: 24E
- Only rotate engine with camshaft adjuster installed
- With sensor wheel for Camshaft Position (CMP) Sensor 2 -G163-
- if camshaft adjuster has been removed, check timing after installation
- Camshaft Adjustment Valve 1 (exhaust) -N318-*
- For exhaust camshaft
- before disconnecting, mark allocation of connector to component
- Check valves for camshaft adjustment. See VALVES FOR CAMSHAFT ADJUSTMENT (VEHICLES WITH ENGINE CODE BDF), CHECKING .
- Valve -1- for camshaft adjustment - N205-*
- for intake camshaft
- before disconnecting, mark allocation of connector to component
- Check valves for camshaft adjustment. See VALVES FOR CAMSHAFT ADJUSTMENT (VEHICLES WITH ENGINE CODE BDF), CHECKING .
- Spark plug, 25 Nm
- Type and spark plug gap. See TEST DATA, SPARK PLUGS .
