Display group 5 - basic function

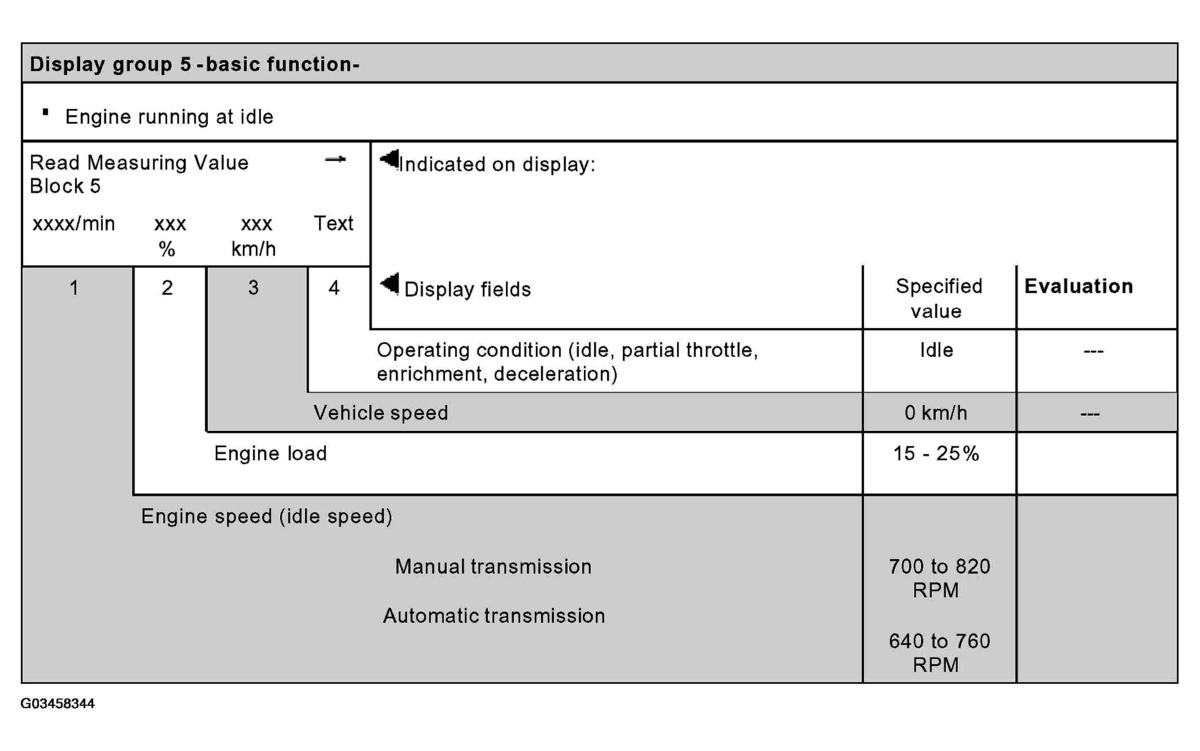

Fig 1: Display Group 5 - Basic Function
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Courtesy of VOLKSWAGEN OF AMERICA, INC.
