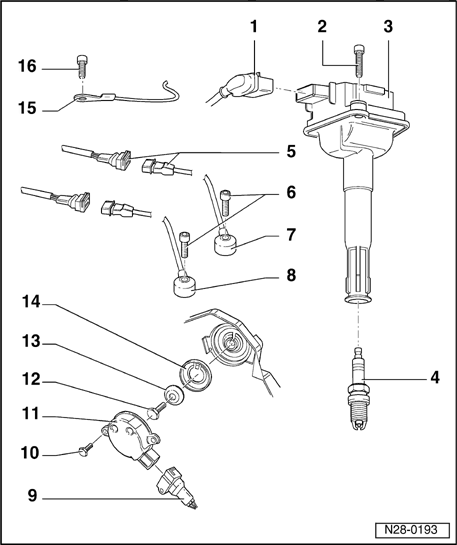

Ignition system components, removing and installing

1 - Connector

• Black, 4 pin

2 - 10 Nm

3 - Ignition coil with output stage -N70-, -N127-, -N291-, -N292-

• Checking. Refer to Ignition coils with output stage, checking

4 - Spark plug, 30 Nm

• Remove and install with 3122B
• Type and electrode gap. Refer to Test data, spark plugs  , test data, spark plugs

5 - 3-pin connector

• Contacts gold plated
• Brown for Knock sensor (KS) 1 -G61-
• Black for Knock sensor (KS) 2 -G66-

6 - 20 Nm

• Tightening torque influences the function of the knock sensor

7 - Knock sensor (KS) 1 -G61-*

• Sensor and connector contacts are gold-plated
• Checking. Refer to Knock sensors, checking

8 - Knock sensor (KS) 2 -G66-*

• Sensor and connector contacts are gold-plated
• Checking. Refer to Knock sensors, checking

9 - Connector

• Black, 3-pin

10 - 10 Nm

11 - Camshaft Position (CMP) sensor 2 -G163-*

• Checking. Refer to Camshaft Position (CMP) sensor 2 -G163-, checking

12 - 25 Nm

13 - Washer

• Conical

14 - Hood

• For Camshaft Position (CMP) sensor 2 -G163-
• When installing note fixing arrangement

15 - Ground wire

• Only loosen or tighten with ignition switched off

16 - 10 Nm

• Only loosen or tighten with ignition switched off
