Windshield Frame Assembly Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen New Beetle, 2009 Volkswagen New Beetle, 2008 Volkswagen New Beetle, 2007 Volkswagen New Beetle, and 2006 Volkswagen New Beetle. However, it is still accessible from the selected car via links, so may be relevant.

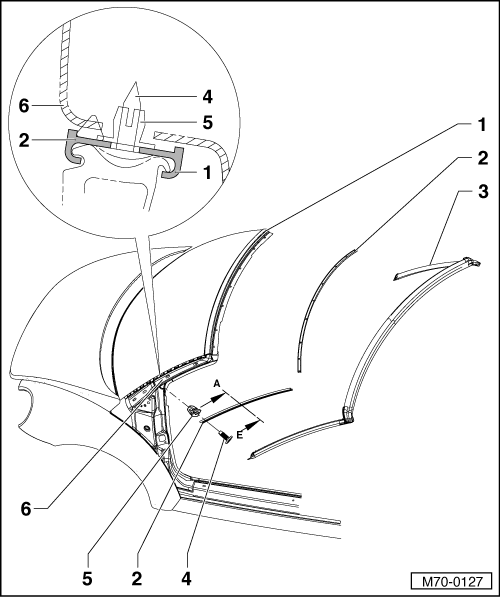

Fig 1: Roof Crossmember Seal And Retaining Track - Assembly Overview (Convertible)
GWWM70-0127Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Roof Crossmember
  2. Retaining track for seal
  3. Roof crossmember seal
  4. Bolt
    • Quantity: 15
  5. Expanding nut
    • Quantity: 15
  6. A-pillar
