Satellite Radio -R146-

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen New Beetle, 2009 Volkswagen New Beetle, 2008 Volkswagen New Beetle, 2007 Volkswagen New Beetle, and 2006 Volkswagen New Beetle. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Prior to working on the electrical system:

Obtain the radio system anti-theft code.
Switch off all electrical consumers.
Switch off the ignition and remove the ignition key.
Disconnect the battery. Refer to Removal and Installation .

The satellite radio is installed in the front passenger footwell -arrow-.

Fig 1: Locating Satellite Radio Receiver

GWWM91-0158

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removal

-- Fold floor mat -1- back -arrows- until the satellite radio -2- is accessible.

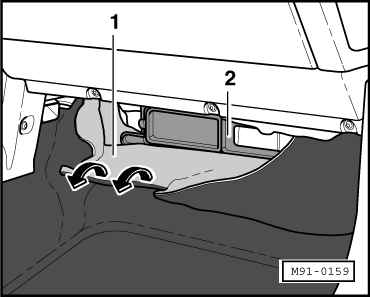

Fig 2: Folding Carpet to Access Receiver

GWWM91-0159

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bracket -1-.

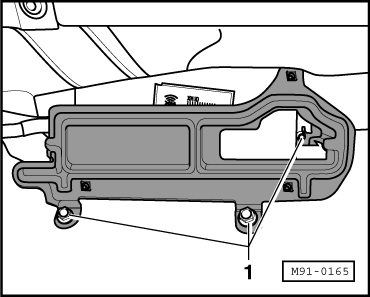

Fig 3: Identifying Fasteners

GWWM91-0165

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect antenna connectors -1- at the satellite radio.

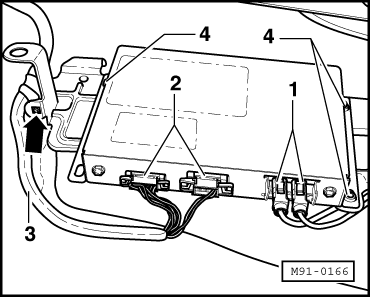

Fig 4: Locating Antenna Connections

GWWM91-0166

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect harness connectors -2- on the satellite radio.

-- Remove cable bracket -3- from the bracket -arrow-.

-- Remove screws -4-.

Installation

Installation is performed in the reverse order of removal.

Tightening Specifications: satellite radio 4 Nm, bracket 9 Nm.
