Amplifier -R12-
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen New Beetle, 2009 Volkswagen New Beetle, 2008 Volkswagen New Beetle, 2007 Volkswagen New Beetle, and 2006 Volkswagen New Beetle. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Prior to working on the electrical system:
- Obtain the radio system anti-theft code.
- Switch off all electrical consumers.
- Switch off the ignition and remove the ignition key.
- Disconnect the battery. Refer to Removal and Installation .

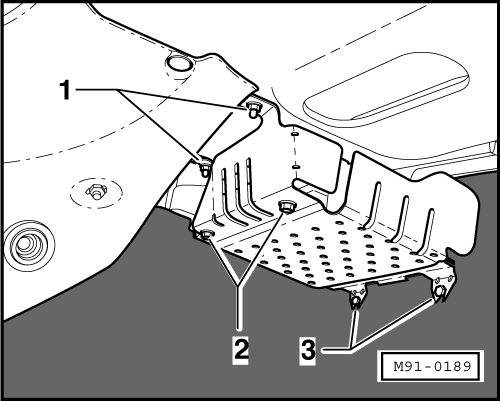

The amplifier is located on the upper left in the luggage compartment.
Removal
-- Remove screws -3-.
-- Remove nuts -1-.
-- Disconnect the connectors.
Removal of the bracket:
-- Remove nuts -2-.
Installation
Installation is performed in the reverse order.
Tightening Specifications: 10 Nm.
