External Audio Source Connection -R199-

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen New Beetle, 2009 Volkswagen New Beetle, 2008 Volkswagen New Beetle, 2007 Volkswagen New Beetle, and 2006 Volkswagen New Beetle. However, it is still accessible from the selected car via links, so may be relevant.

The external audio source connection has been installed since MY 05.

Different external audio sources can be connected to the external audio source connection:

iPod
MP3-Player
CD player
Mini disc player

Suitable adapter cables are needed. Refer to the appropriate service information.

Installation Locations:

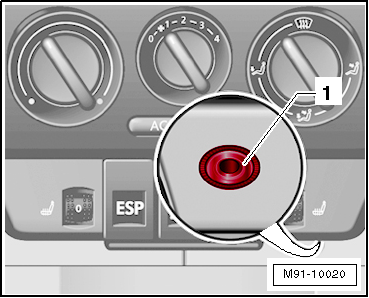

Fig 1: Identifying External Audio Source Connection, Inside Instrument Panel Under Switches -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

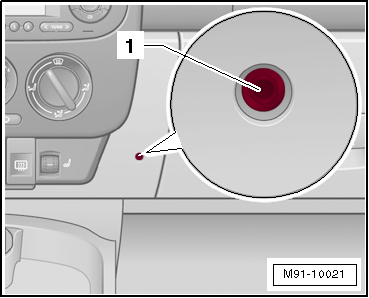

Fig 2: Identifying External Audio Source Connection, On Left Side Next To Glove Compartment -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
