Mufflers With Mounts: Notes

The following list pertains to Fig 1.

1. 40 Nm
2. from front exhaust pipe
3. Double clamp

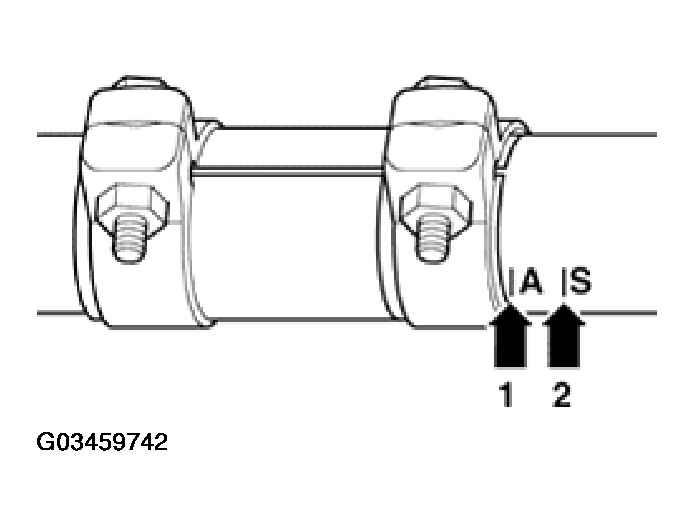

   • Note installed position, see Figure
4. 25 Nm
5. Suspended mount

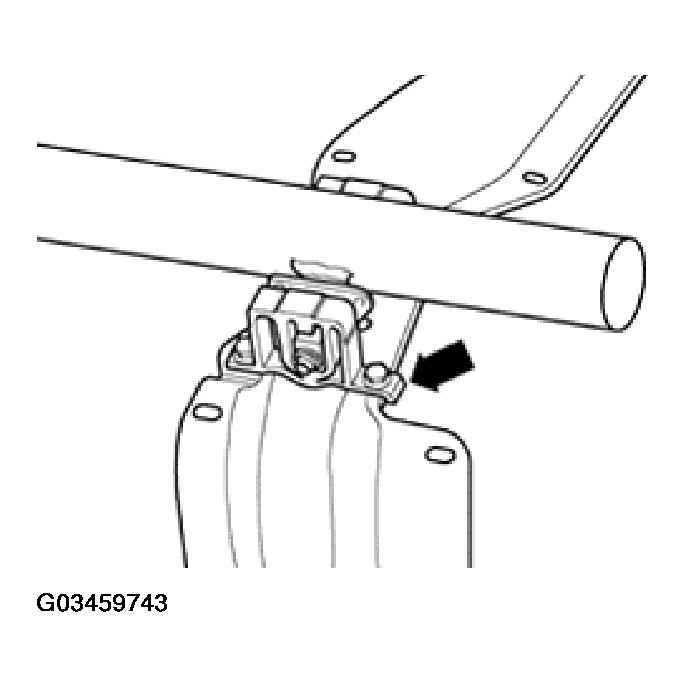

   • Note installed position, see Figure
6. Suspended mount
   • With retainer ring
7. Bracket
8. Suspended mount
9. Rear muffler

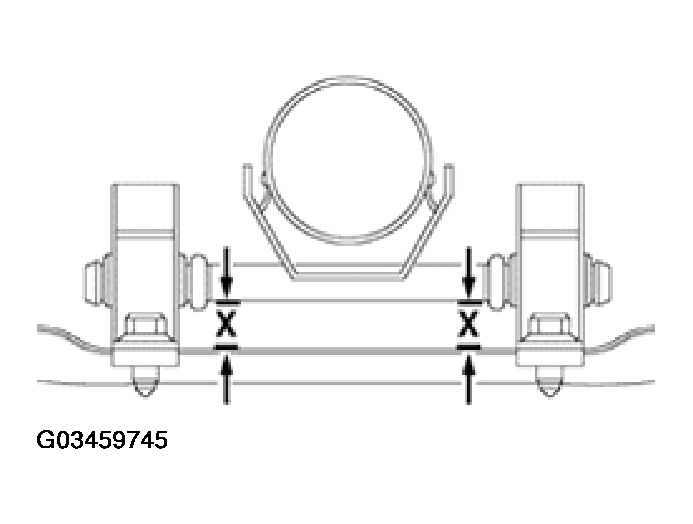

   • Install rear muffler free of tension, see Figure
10. Separating point
    • For repairs
    • marked by three depressions around the circumference of the exhaust pipe
    • At factory, exhaust pipe and rear muffler are installed as a single component. Replacement exhaust pipe and rear muffler are supplied separately, with replacement double clamp for connecting joint.

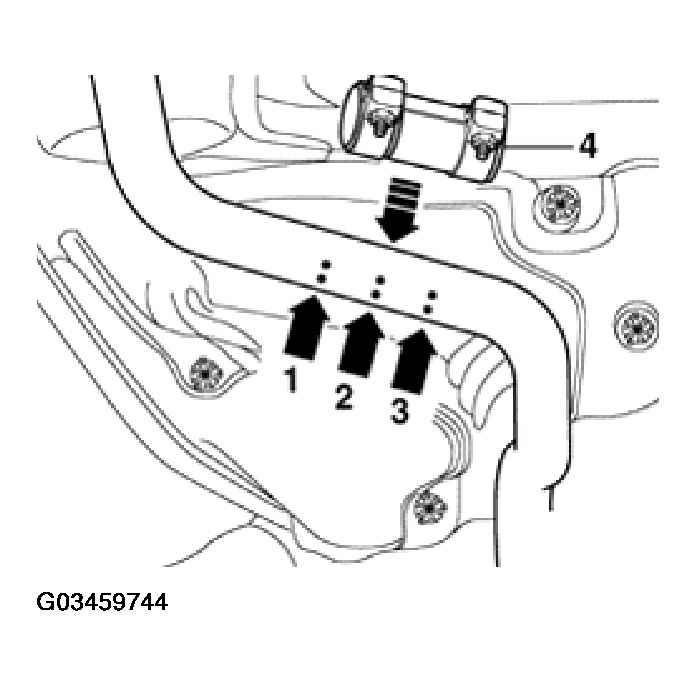

    • Using e.g. V.A.G 1523 body repair saw, cut exhaust pipe at separating point at right angle, see Figure
11. 20 Nm
12. Tunnel bridge

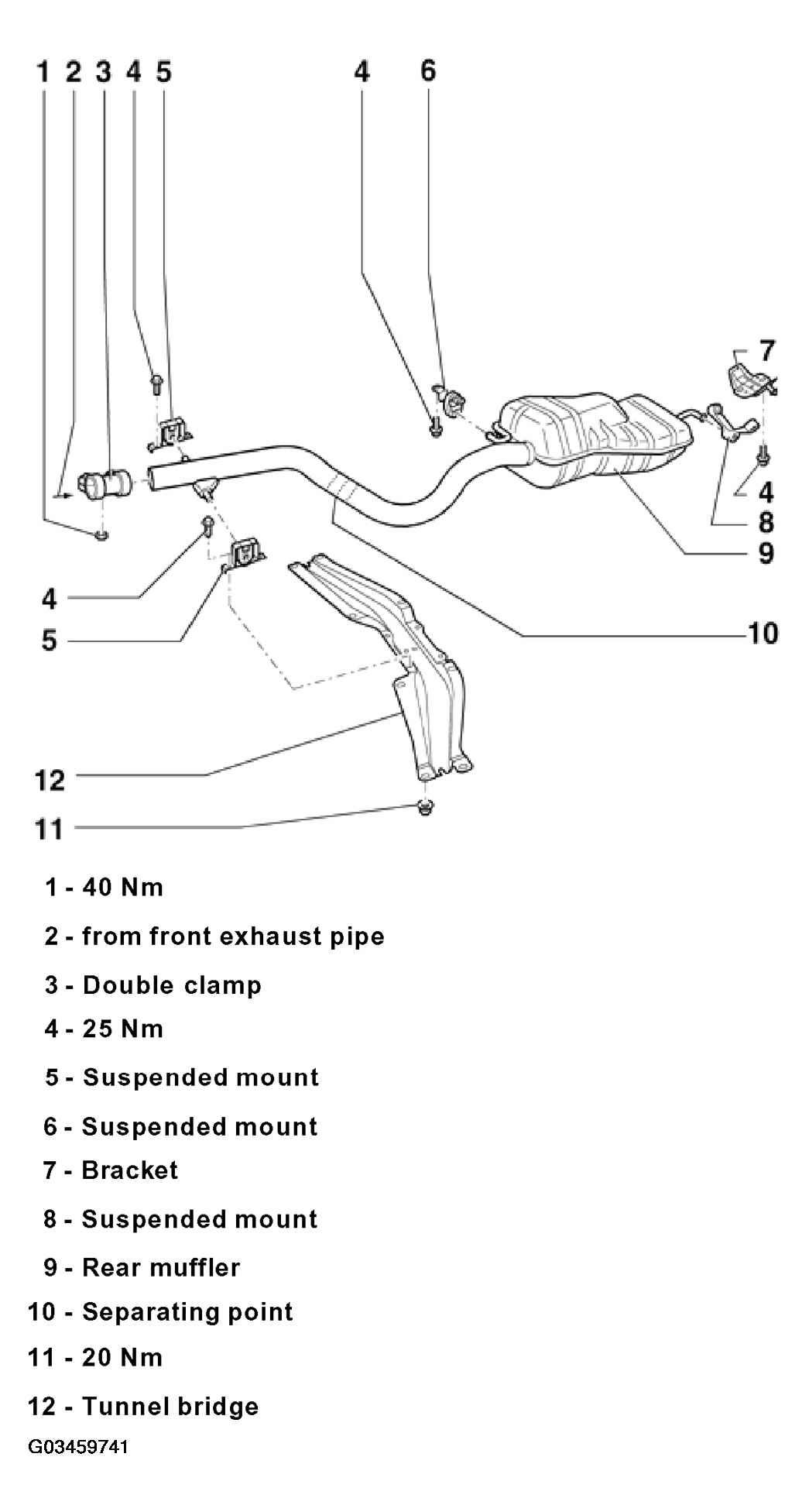

    Fig 1: Identifying Mufflers With Mounts Components

    Courtesy of VOLKSWAGEN OF AMERICA, INC.
