Muffler With Mountings: Notes
NOTE:

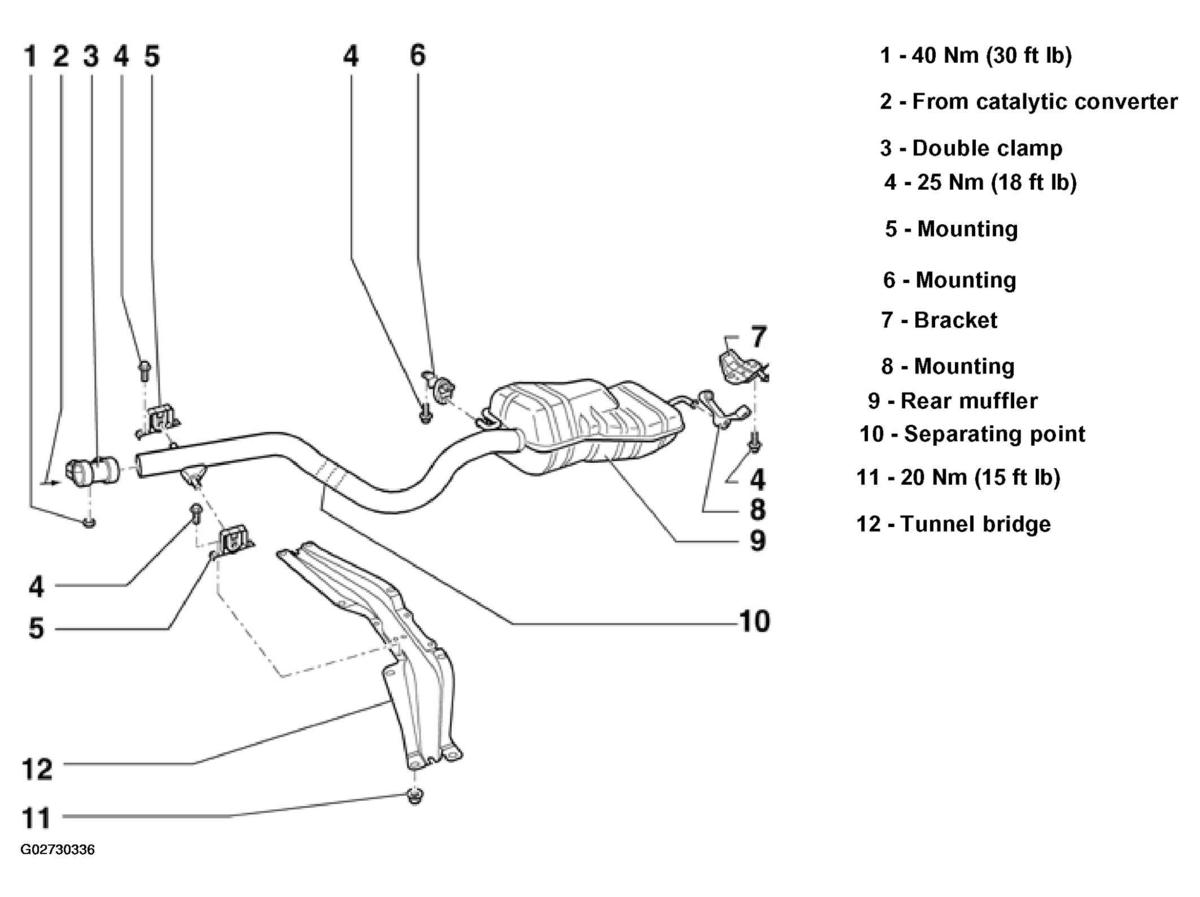

The following list refers to items in Fig 1.
- 40 Nm (30 ft lb)
- From catalytic converter
- Double clamp

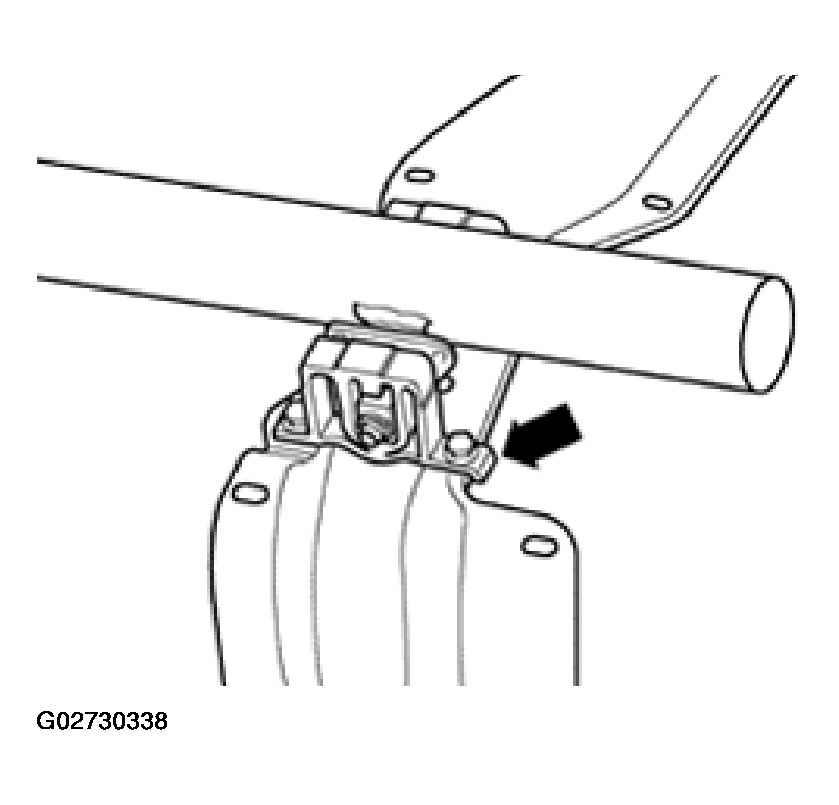

- Note installation position, See Figure
- 25 Nm (18 ft lb)
- Mounting

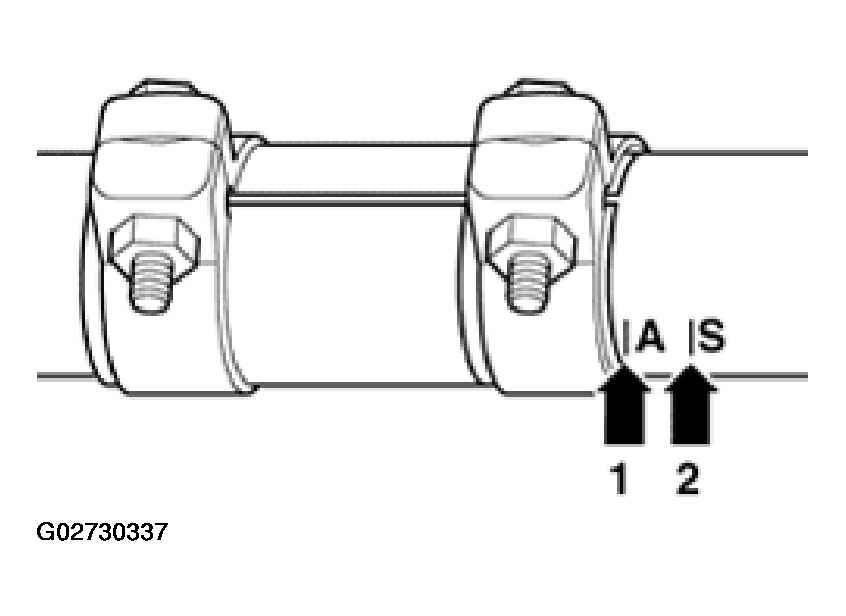

- Note installation position, See Figure
- Mounting
- With retaining ring
- Bracket
- Mounting
- Rear muffler

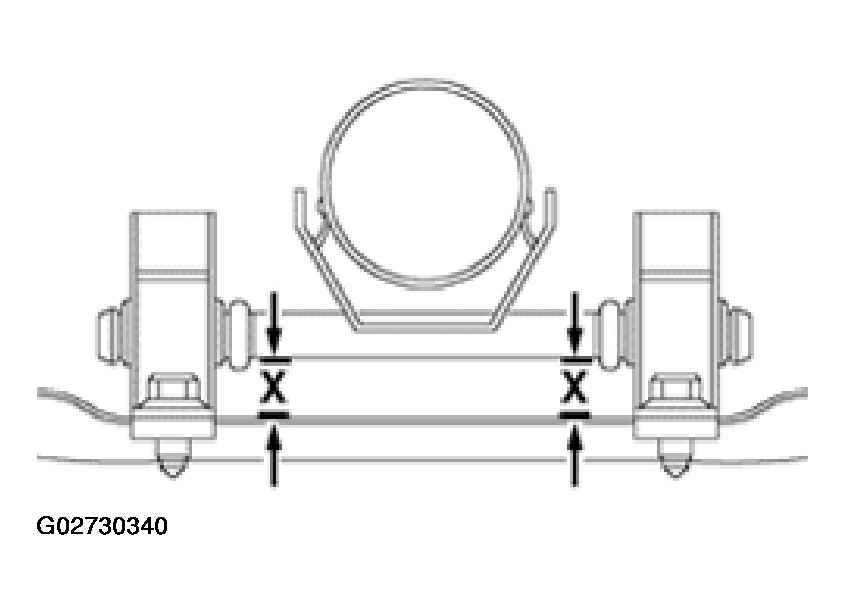

- Align rear muffler stress-free, See Figure
- Separating point
- For repairs

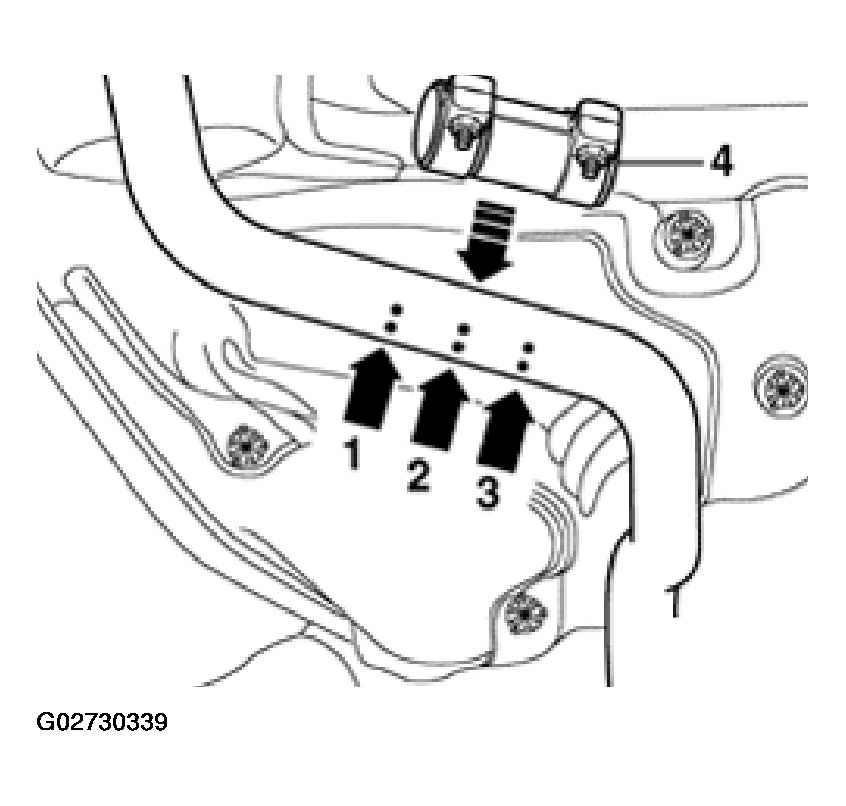

- Marked by three impressions on circumference of exhaust pipe
- In production, exhaust pipe and rear mufflers are installed as a single welded unit. For repairs the exhaust pipe and rear muffler are supplied as separate parts with a double clamp at the joint,
- Cut through connecting pipe at right angle at separation point, See Figure
- 20 Nm (15 ft lb)
- Tunnel bridge
