Front Exhaust System Components

NOTE: The following list refers to items in Fig 1.
  1. From turbocharger
  2. Gasket
    • Always replace
  3. 25 Nm (18 ft lb)
  4. Catalytic converter
  5. To central muffler
  6. Support
  7. 25 Nm (18 ft lb)

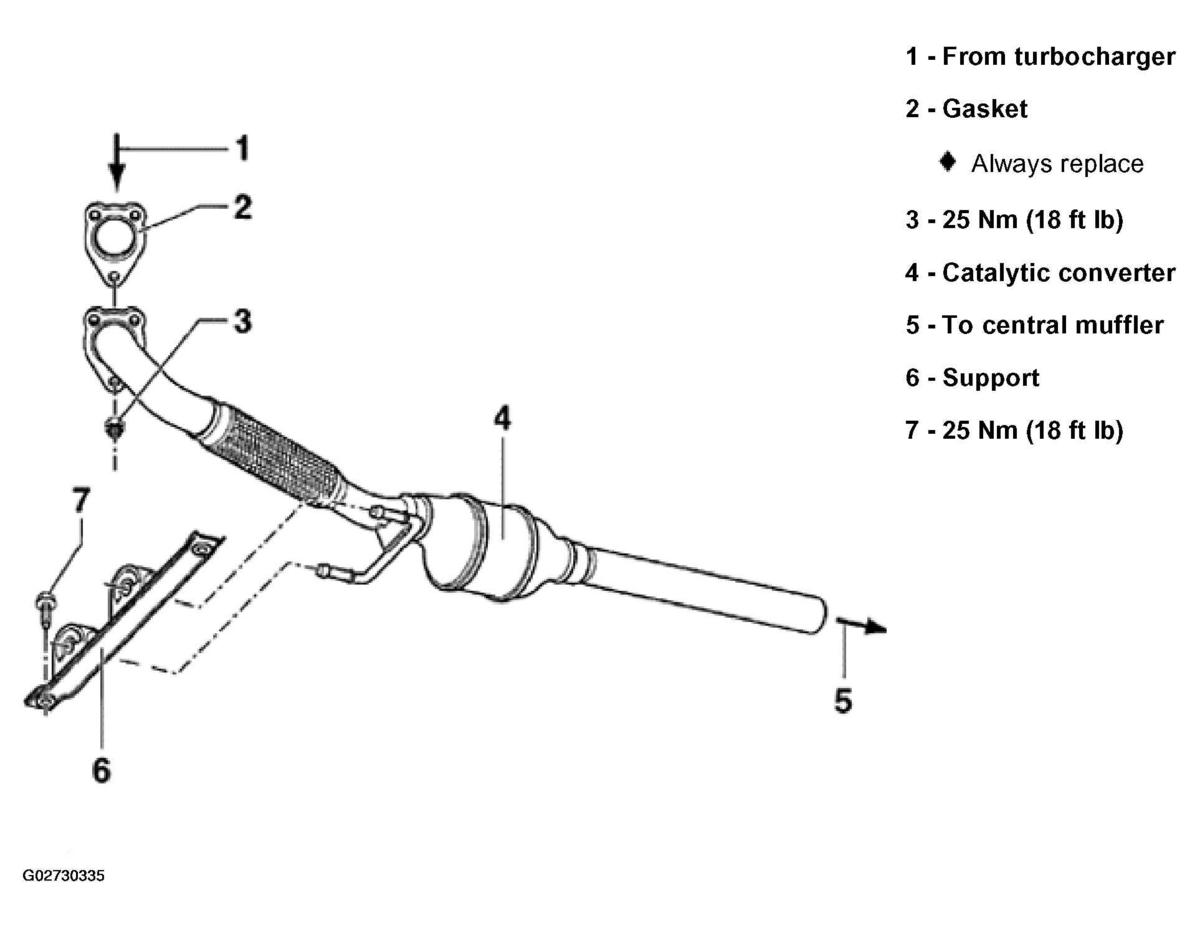

Fig 1: Front Exhaust System Components With Torque Specifications
G02730335Courtesy of VOLKSWAGEN OF AMERICA, INC.
