Vehicles with automatic transmission: Notes
- Remove wiper arms and cowl panel:

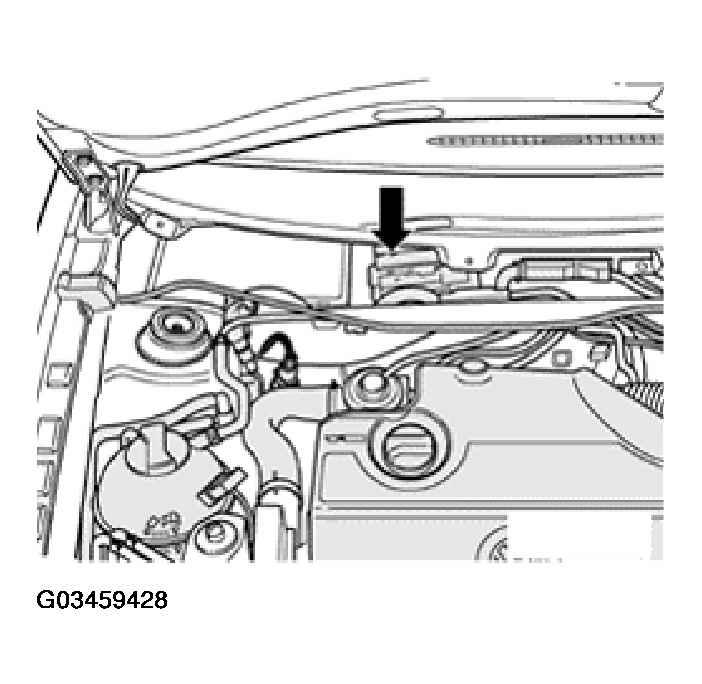

- Remove connector -arrow- from Transmission Control Module (TCM) -J217-.
- Connect test box VAG 1598/18 to Transmission Control Module (TCM) -J217- wiring harness -1- and lock connector -2-.
- Check CAN-Bus wiring with terminal resistors in Engine and ABS Control Modules.
- Measure resistance between test box sockets 3 + 25:
Specification: 55 to 75 Ω

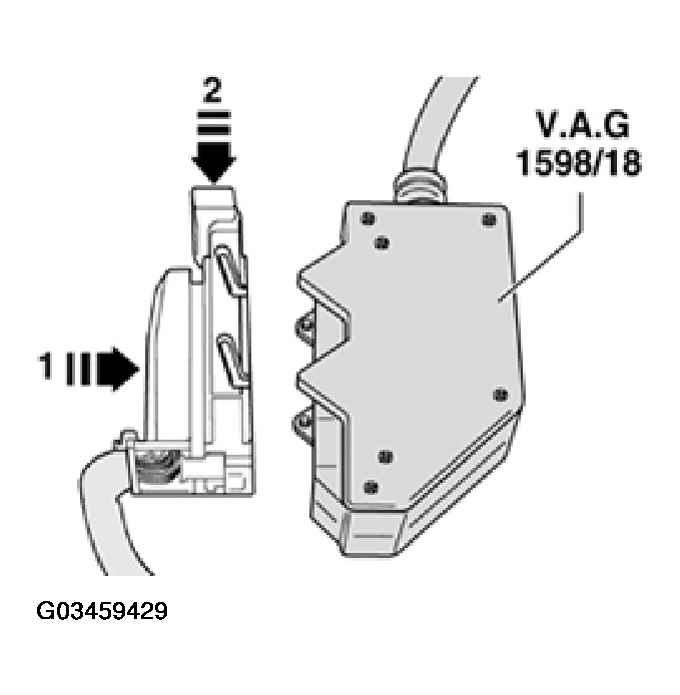

Fig 2: Connecting Test Box Vag 1598/18 To Transmission Control Module (TCM) -J217- Wiring Harness And Lock Connector
If resistance is outside specification:
- Perform test per CAN BUS DISPLAY CAUSE CHART table:
CAN BUS DISPLAY CAUSE (1999)
| Display | Cause | Continuation |
|---|---|---|
| 0...5 Ω |
|
Check CAN-Bus wiring, see CAN-BUS WIRING, CHECKING |
| 135... INFINITY Ω |
|
Check CAN-Bus wiring, see CAN-BUS WIRING, CHECKING |
| 115...135 Ω |
|
See CONTINUATION FOR 115...135 Ω |
