Coolant Temperature Sensor/Switch (For Computer): Locations

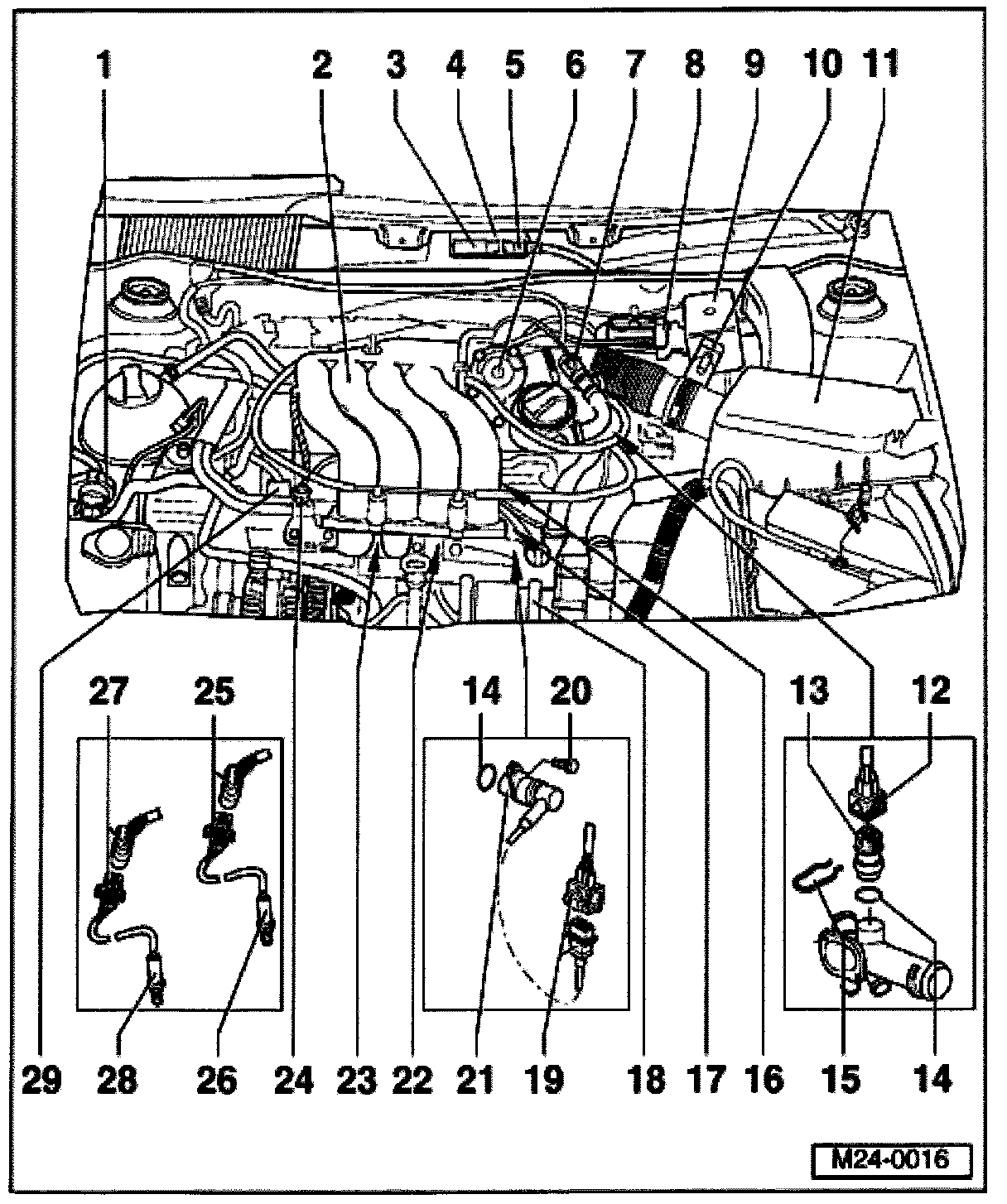

Component Locations, Overview:

13 - Engine - Coolant Temperature (ECT) sensor -G62-
- Blue
- For Engine Control Module (ECM)
- With Engine Coolant Temperature (ECT) sensor -G2-
- If necessary, release pressure in cooling system before removing
- Checking. Testing and Inspection
- Connector terminals -1- and -3- for Engine Coolant Temperature (ECT) sensor -G62-
- Terminals -1- and- 3- are gold plated
