Glow Plug Relay: Locations

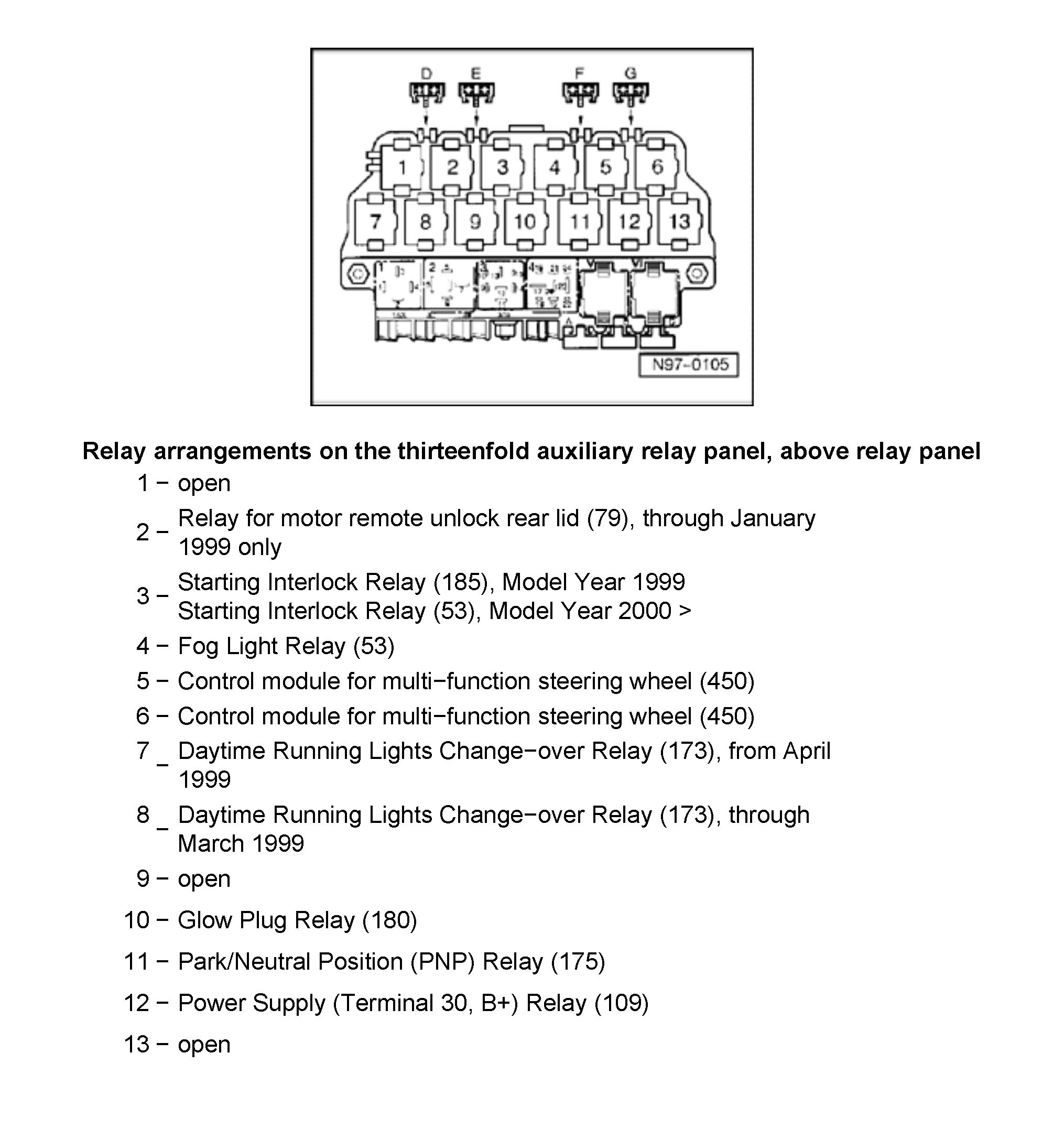

Relay arrangements on the thirteenfold auxiliary relay panel, above relay panel
