Display Groups 70-79 (Reducing Emissions)

Readiness code

- Engine running at idle
- Coolant Temperature at least 60 °C
- Control module in mode 04, basic setting

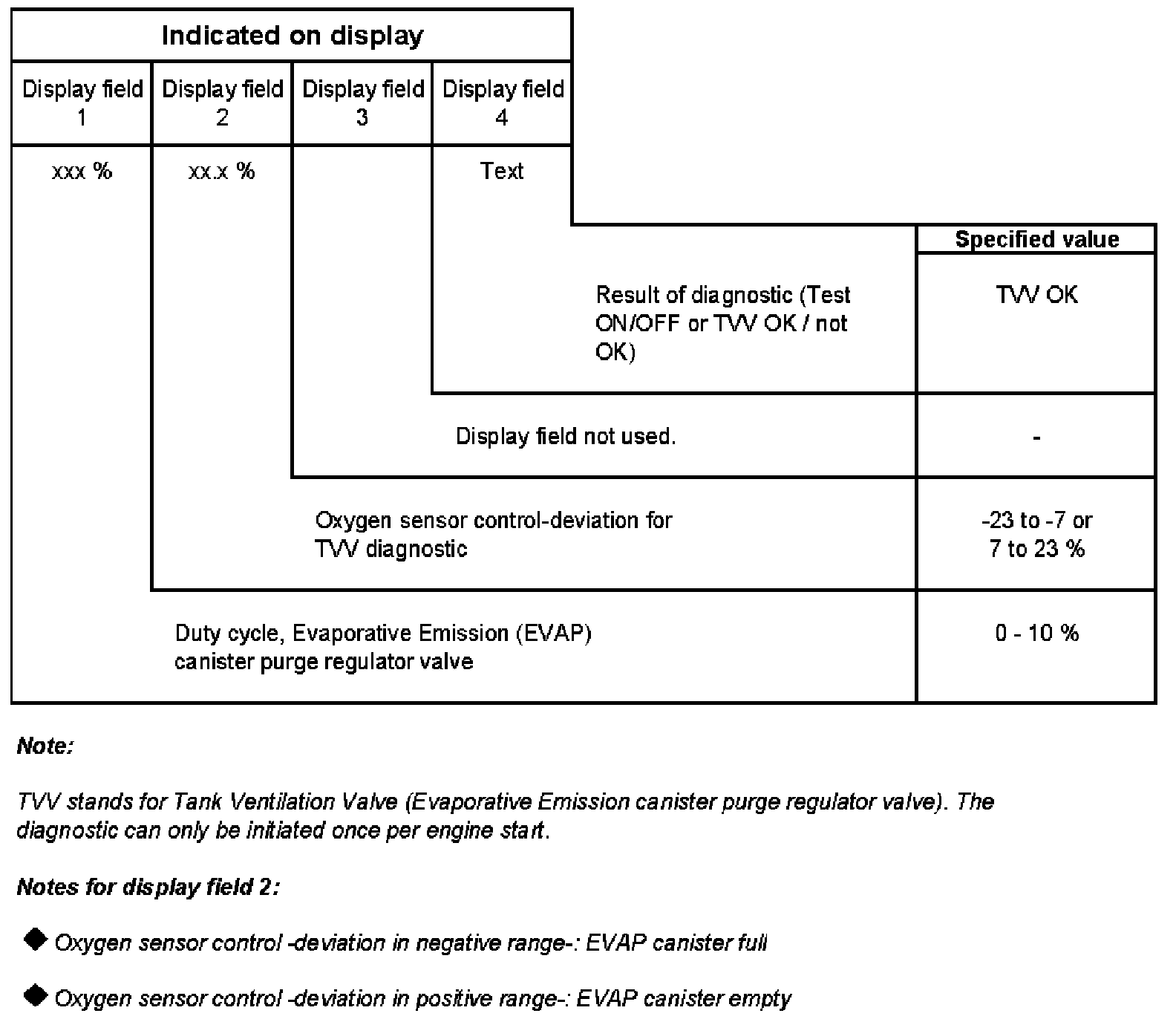

Indicated on display


Read Measuring Value Block 70 ->

Display Group 70:

Readiness code

- Vehicle standing, engine running at increased idle
- Intake Air Temperature (IAT) maximum 75 °C
- Control module in mode 04, basic setting

Indicated on display


Read Measuring Value Block 71 ->







Readiness code

- Vehicle standing, engine running at increased idle
- Intake Air Temperature (IAT) maximum 75 °C
- Control module in mode 04, basic setting

Indicated on display


Read Measuring Value Block 77 ->

Display Group 77:
