Display Groups 0-9 (Basic Functions)

- Engine running at idle

Indicated on display


Read Measuring value Block 1 ->

Display Group 1:

Explanation of 8 digit numeric block







Evaluation display group 1, display field 1 - engine speed (idle speed)







- Engine running at idle

Indicated on display


Read Measuring value Block 2 ->

Display Group 2:

Evaluation display group 2, display field 3 - injection timing







Evaluation display group 2, display field 4 - mass air taken in







- Engine running at idle

Indicated on display


Read Measuring value Block 3 ->

Display Group 3:

- Engine running at idle

Indicated on display


Read Measuring value Block 4 ->

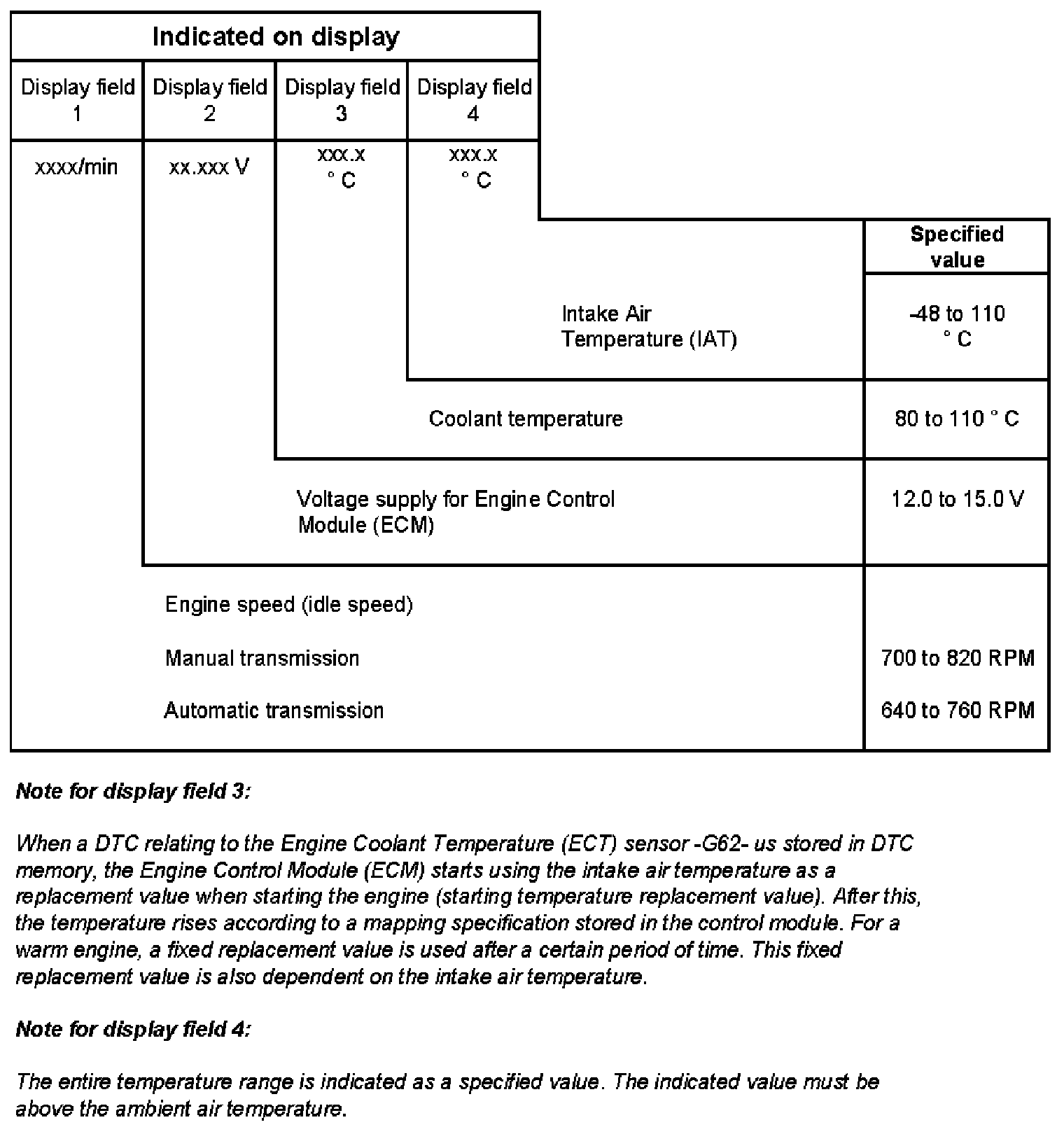

Display Group 4:

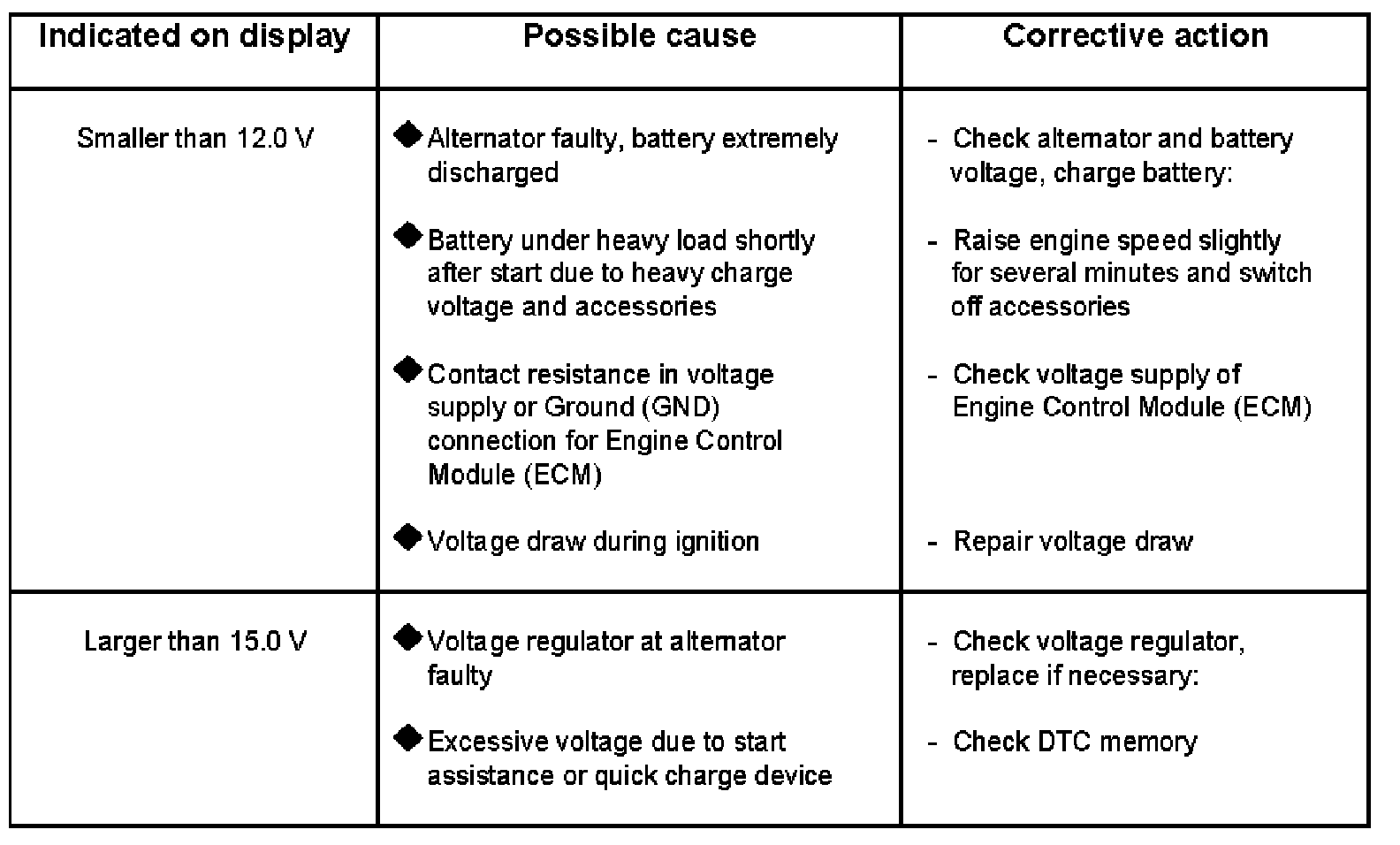

Evaluation display group 4, display field 2 - control module voltage supply







Evaluation display group 4, display field 3 - coolant

Evaluation display group 4, display field 4 - intake air temperature







- Engine running at idle

Indicated on display


Read Measuring value Block 5 ->

Display Group 5:

- Engine running at idle

Indicated on display


Read Measuring value Block 6 ->

Display Group 6:
