Control Module Identification and Equipment




Control Module Identification
The control module version is identified when the VAG1551 Scan Tool, VAG1552 Scan Tool or the new VAS5051 tester are connected and the control module for engine electronics is selected. Refer to "VAG 1551 Scan Tool" [1][2][3][4][5]Connecting VAG 1551 Scan Tool

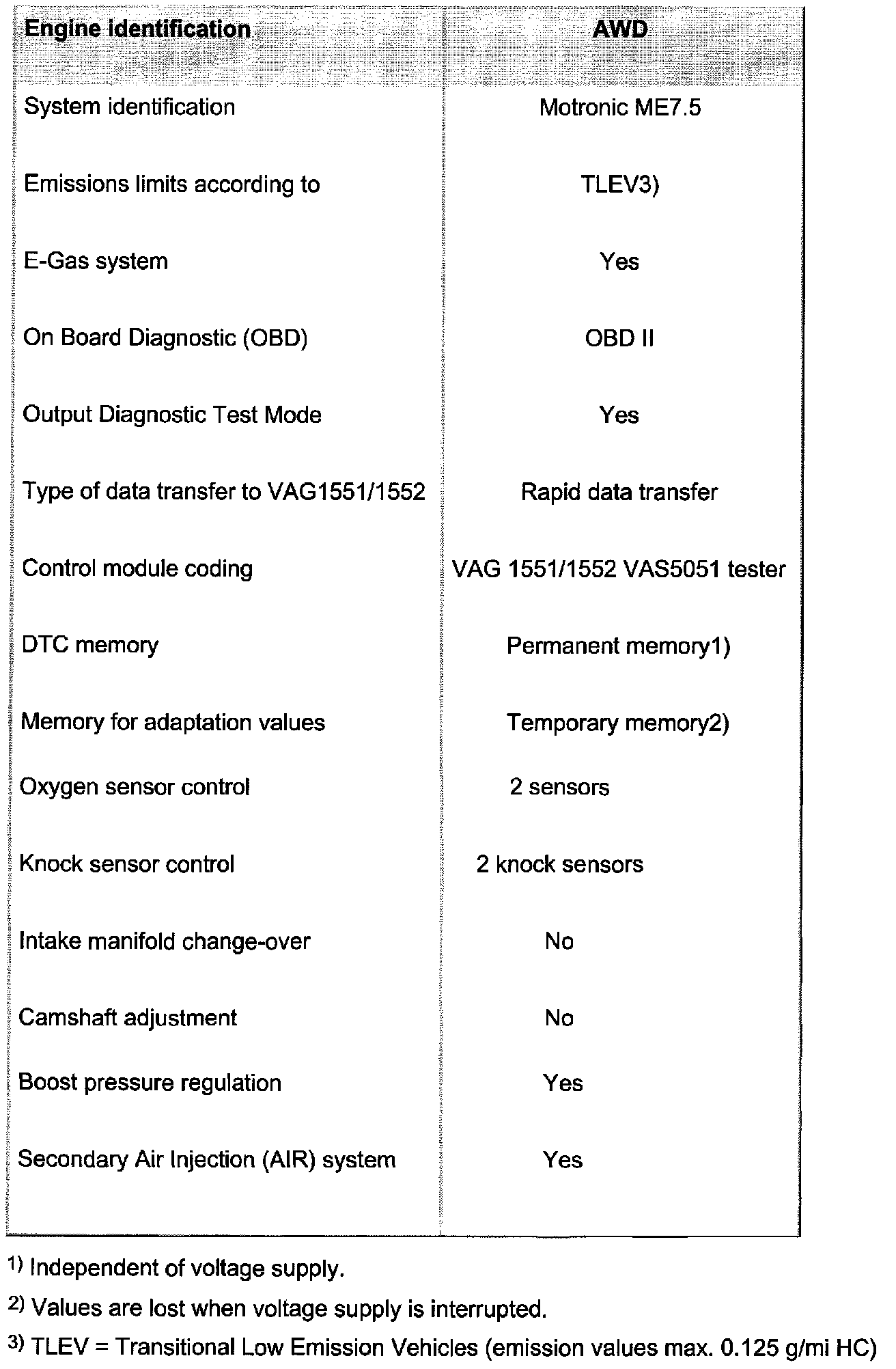

Equipment
