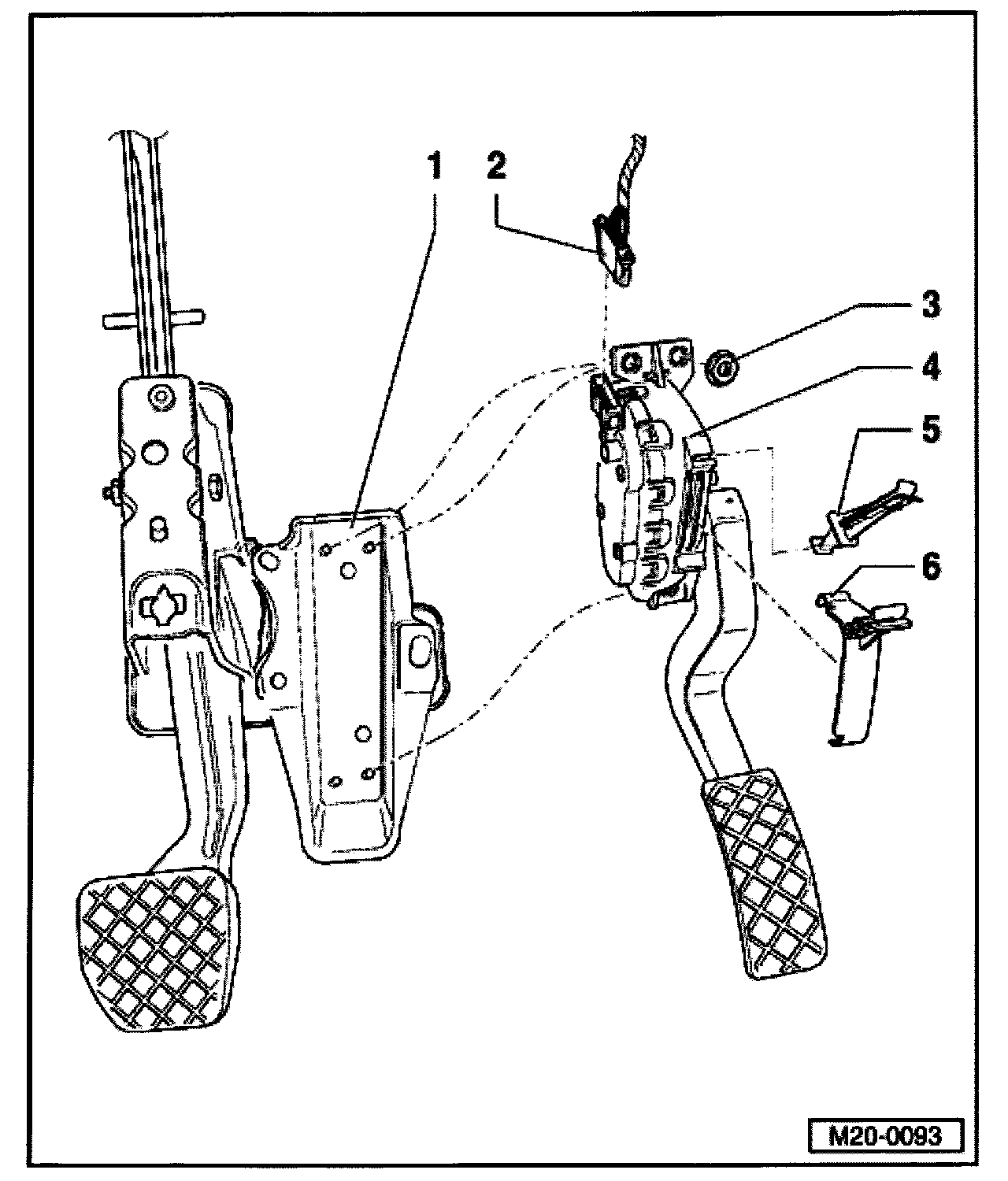

Accelerator Pedal Position Sensor: Service and Repair

1 - Bracket
- Removing and installing
2 - Connector
- Black, 6-pin
3 - 10 Nm
4 - Accelerator pedal position sender (G79 and G185)
- Not adjustable
- The accelerator pedal position passes the position of the pedal on to the engine control module
- When removing remove dash panel and pedal cluster cover
- Checking
- Vehicles with automatic transmission 01M
- If replaced adapt control module for automatic transmission:
5 - Retainer
- For footwell cover
- for model year 2002
- Clipped onto accelerator pedal
6 - Retainer
- For footwell cover
- for model year 2001
- Clipped onto accelerator pedal
