Starting System: Locations

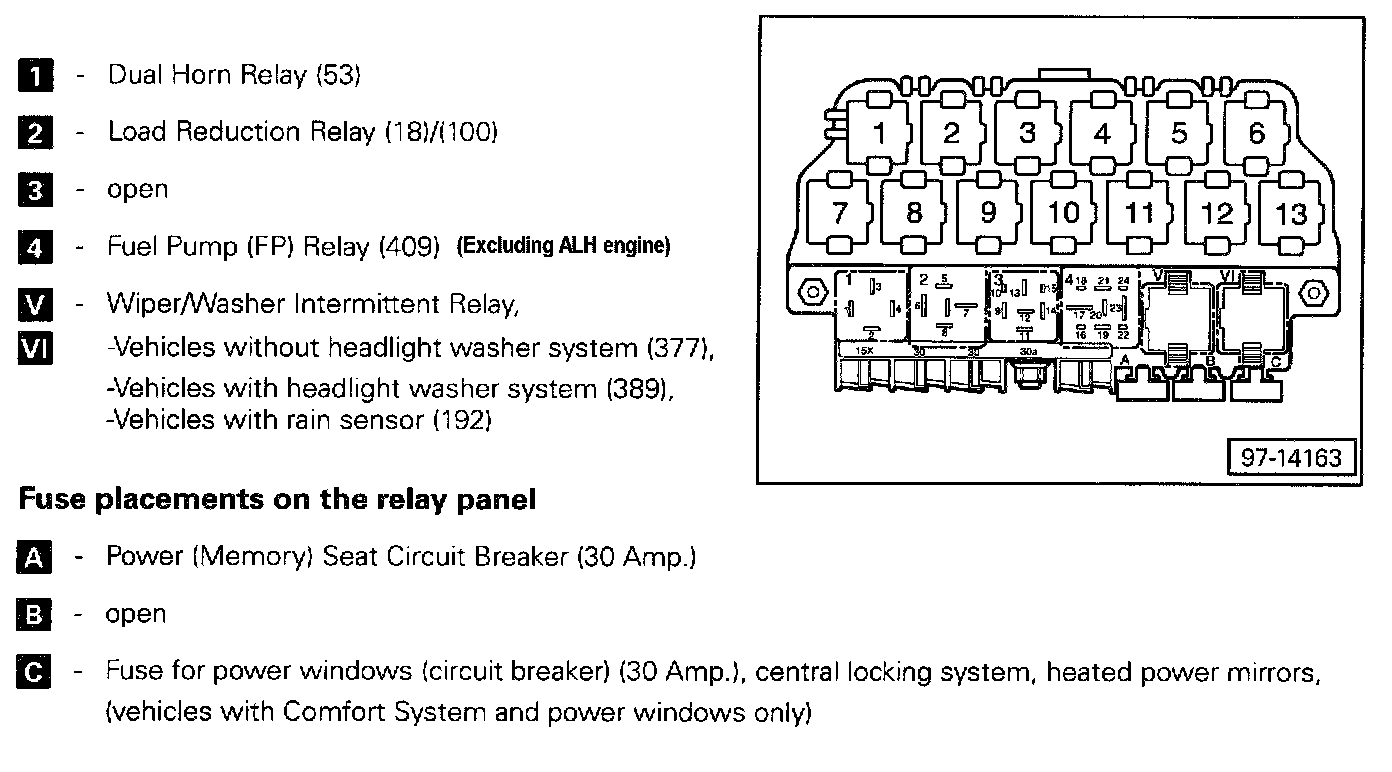

Relay/Fuse Arrangements On The Relay Panel

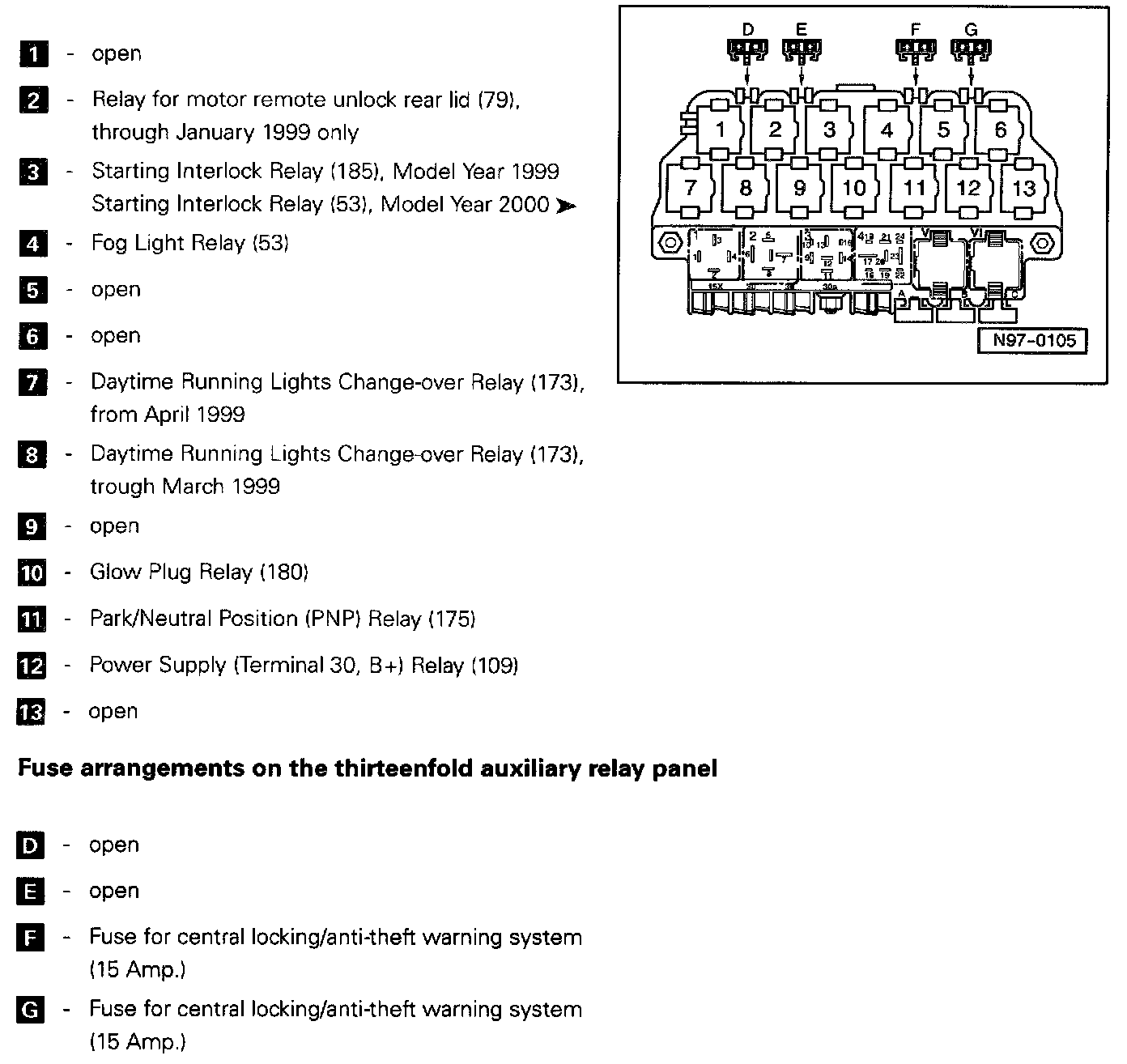

Relay Arrangements On The Thirteenfold Auxiliary Relay Panel, Above Relay Panel
