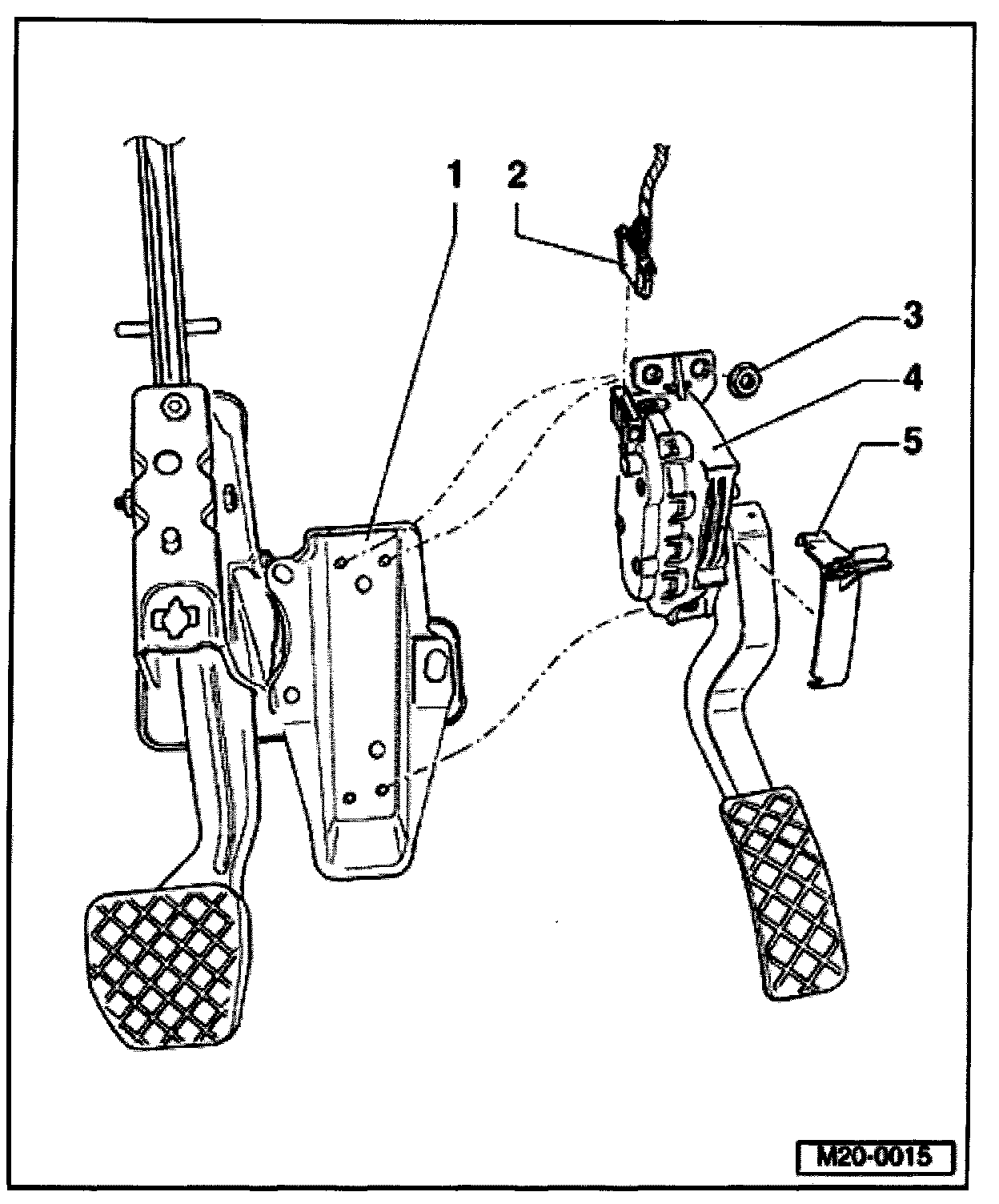

Accelerator Pedal Position Sensor: Service and Repair

1 - Bracket
- Removing and installing
2 - Connector
- Black, 6-way
3 - 10 Nm
4 - Throttle position sensor for accelerator position (G79)
- Not adjustable
- The throttle position sensor passes the driver action to the engine control module
- To remove the sensor, remove the cover in the footwell
- Check
5 - Bracket
- For the footwell cover
- Clipped tight on the throttle position sensor
