Scan Tool V.A.G 1551, Connecting

Scan Tool V.A.G 1551, Connecting

Vehicles from 09.98

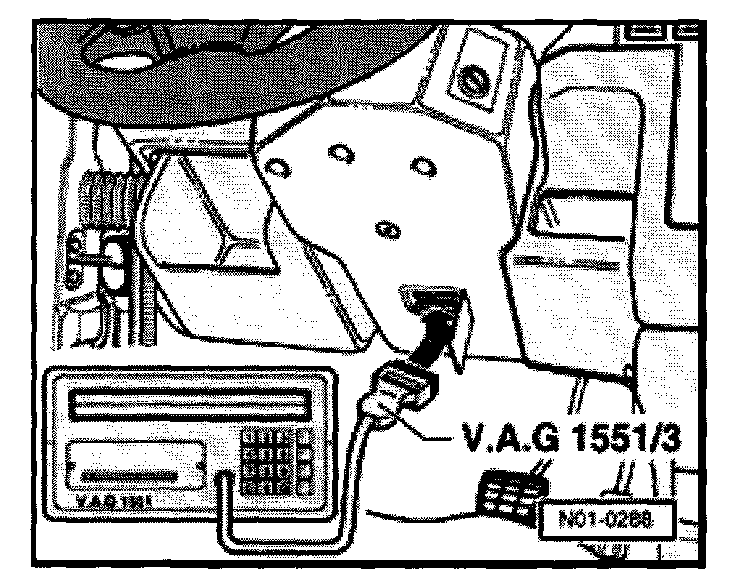

- Open cover for diagnostic connection in lower steering column.







- With ignition switched off, connect scan tool V.A.G 1551 with diagnostic cable V.A.G 1551/3.

Indicated on display:


V.A.G - On Board Diagnostic HELP
1 - Rapid data transfer 1)
2 - Blink code output 1)


1) appears alternately

- Additional operating instructions can be called up by pressing the HELP key of V.A.G 1551.
- The -> key is used for advancing within the program sequence.
- An automatic check (keys 00) can be carried out in the operating mode 1 "Rapid data transfer". Then all vehicle control modules will be Checked automatically.
