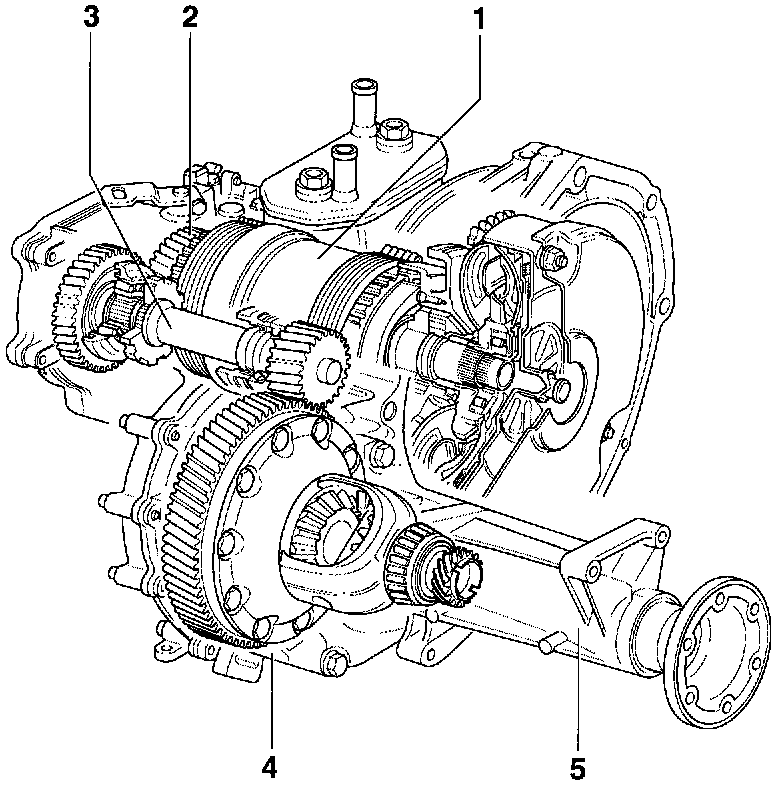

Overview of Disassembly/Assembly

1 Planetary gear
- Disassembling and assembling refer to Unit (Planetary Gearbox) Disassembly/Assembly. Service and Repair
2 Input gear
- Removing and installing. Differential Input Gear
- Adjusting. Input Gear
- Adjusting final drive. Overview of Final Drive Adjustments

NOTE: Only repair the input gear after the component parts of the planetary gear have been removed.

3 Drive pinion
- Removing and installing refer to Replacement. Drive Pinion
- Adjusting. Drive Pinion
- Adjusting final drive. Overview of Final Drive Adjustments
4 Differential
- Removing and installing refer to Replacement. Differential Assembly
- Disassembling and assembling. Differential Assembly
- Adjusting. Differential
- Adjusting final drive. Overview of Final Drive Adjustments
5 Bearing housing
- Removing and installing refer to Replacement. Bearing Housing
