Code Letters, Applications & Gear Ratios





Chart 1-Transmission Component Code Letters.

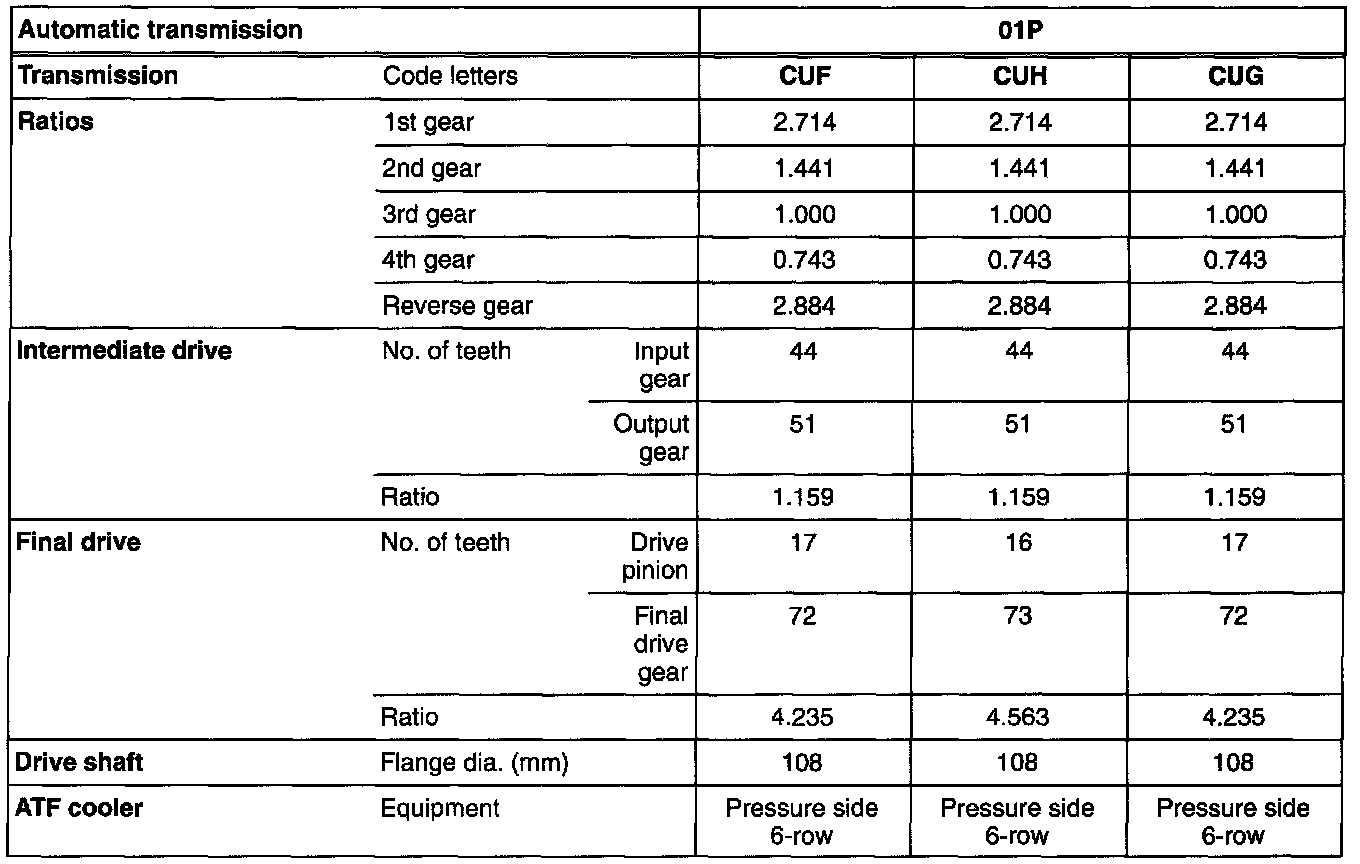

Chart 2-Transmission Code Letters & Ratios.

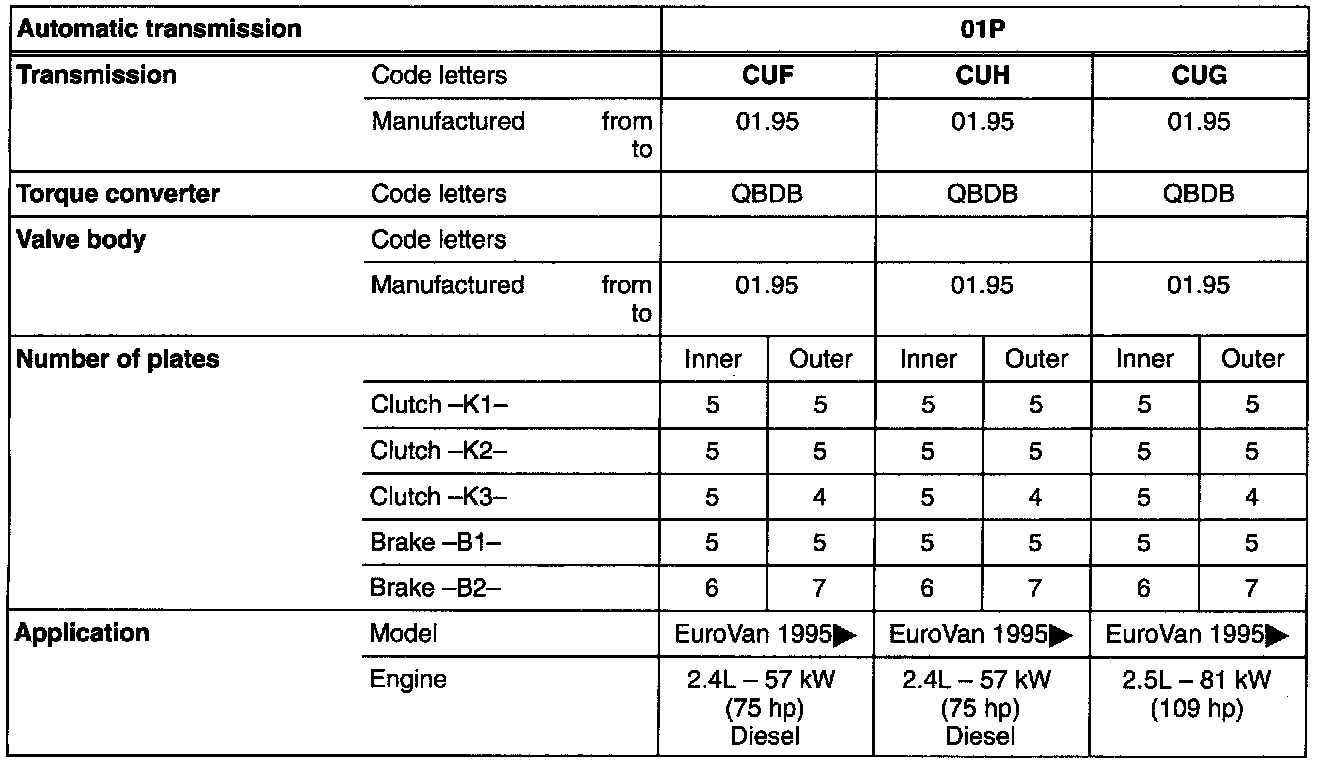

Chart 3-Transmission Code Letters & Applications.



Chart 4-Transmission Code Letters & Drive Gear Ratios.
