System Specifications

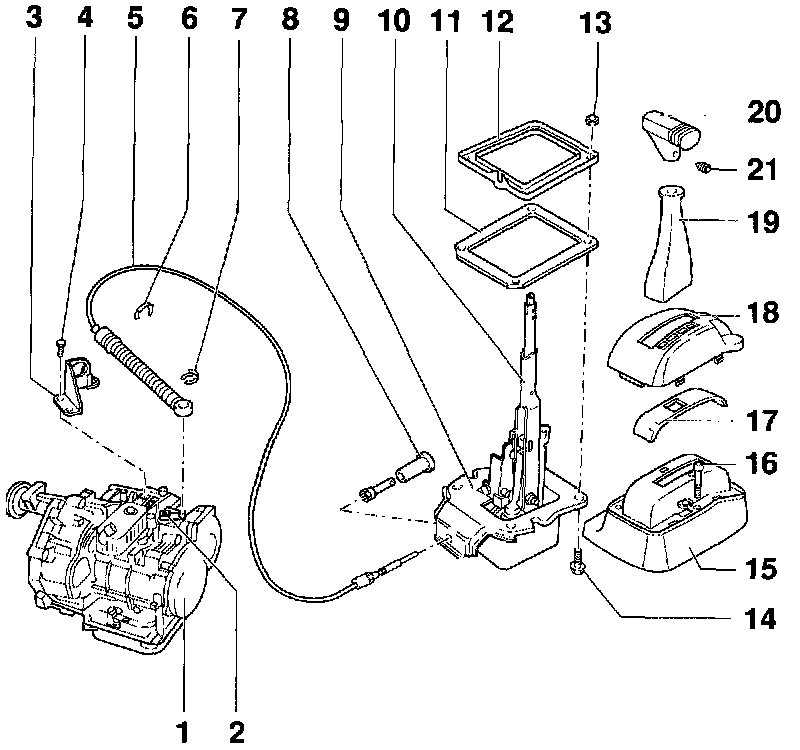

Legend
4 Bolt
- Tighten to: 10 Nm (7 ft lb)
5 Selector lever cable with guide tube
- Tighten selector lever cable on anchorage/selector lever housing to 20 Nm (15 ft lb) ensuring recessed side of selector lever cable is towards adjustment screw
13 Nut
- Tighten to: 12 Nm (9 ft lb)
14 Bolt
- Tighten to: 12 Nm (9 ft lb)
16 Bolt
- Tighten to: 2 Nm (18 inch lb)
21 Set screw
- Tighten to: 1.5 Nm (14 inch lb)
