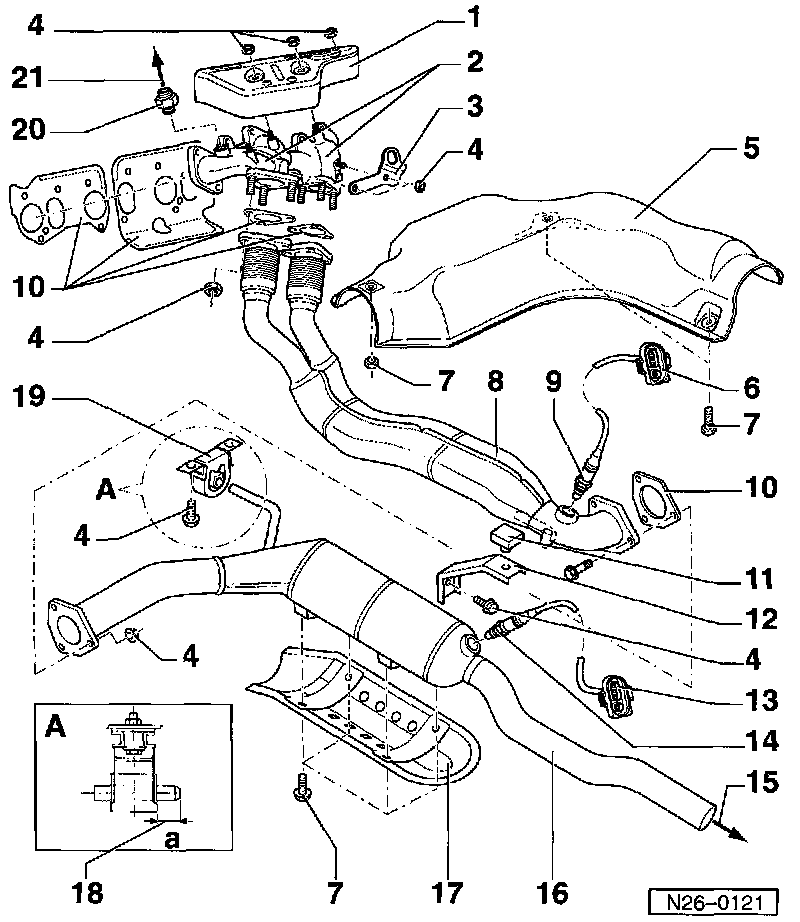

Oxygen Sensor: Diagrams

Legend
1 Heat Shield
2 Exhaust Manifold
3 Lifting Eye
4 Nuts And Bolts
5 Heat Shield
6 4-pin Harness Connector
7 Bolt
8 Front Exhaust Pipe
9 Heated Oxygen Sensor -G39-
10 Gasket
11 Insulation Rubber
12 Support Bracket
13 4-pin Harness Connector
15 Connection To Front Muffler
16 Three-Way Catalytic Converter
17 Heat Shield
18 Dimension -a-
19 Mounting
20 Connection
21 Connection To Pipe
